Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | CQD |
Minimum Order Quantity: | 1unit |
Price: | To be negotiated |
Packaging Details: | lron pallet+plastic film |
Delivery Time: | 7 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Product Name: | All Direction Reach Stacker | Loading Capacity: | 2000kg |
---|---|---|---|
Weight: | 2000kg | Ground Clearance: | 65mm |
Battery Capacity: | 24/180AH | Load Center: | 500mm |
Highlight: | High Quality Reach Stacker,Standing Position Reach Stacker,All Direction Reach Stacker |

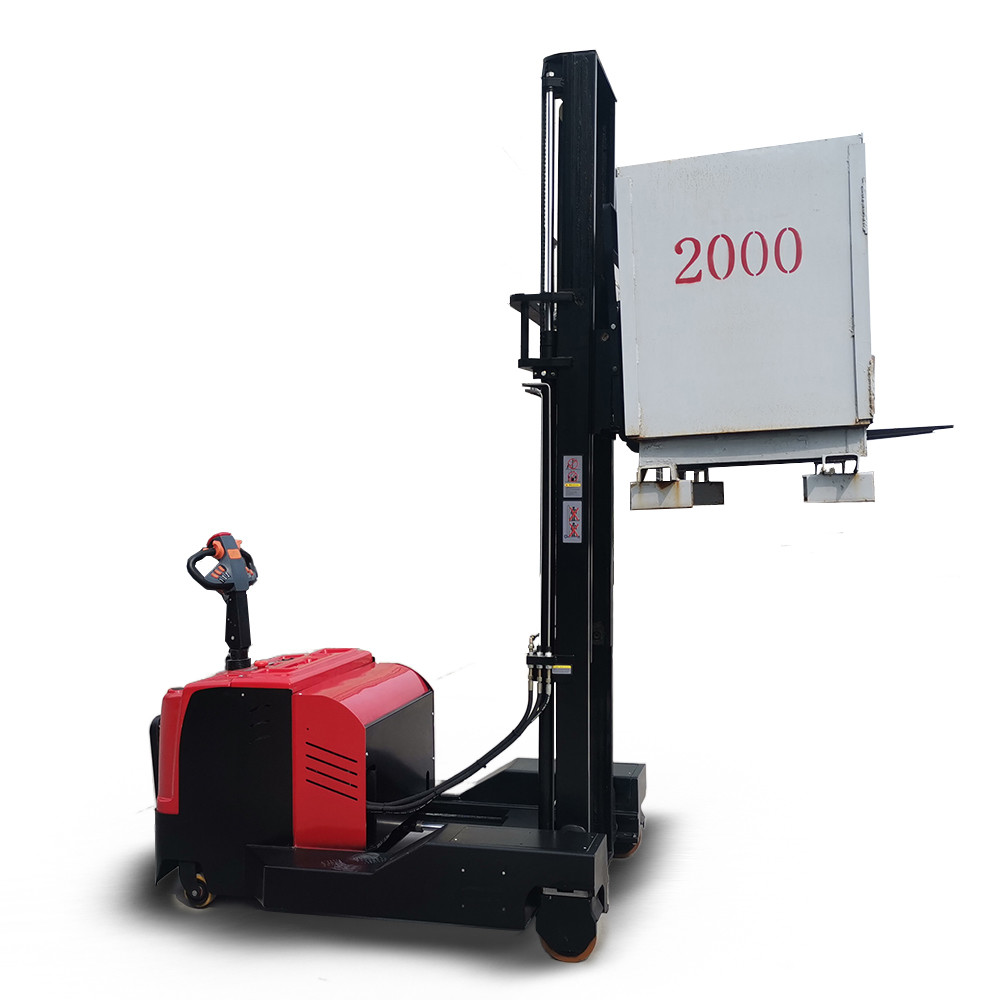

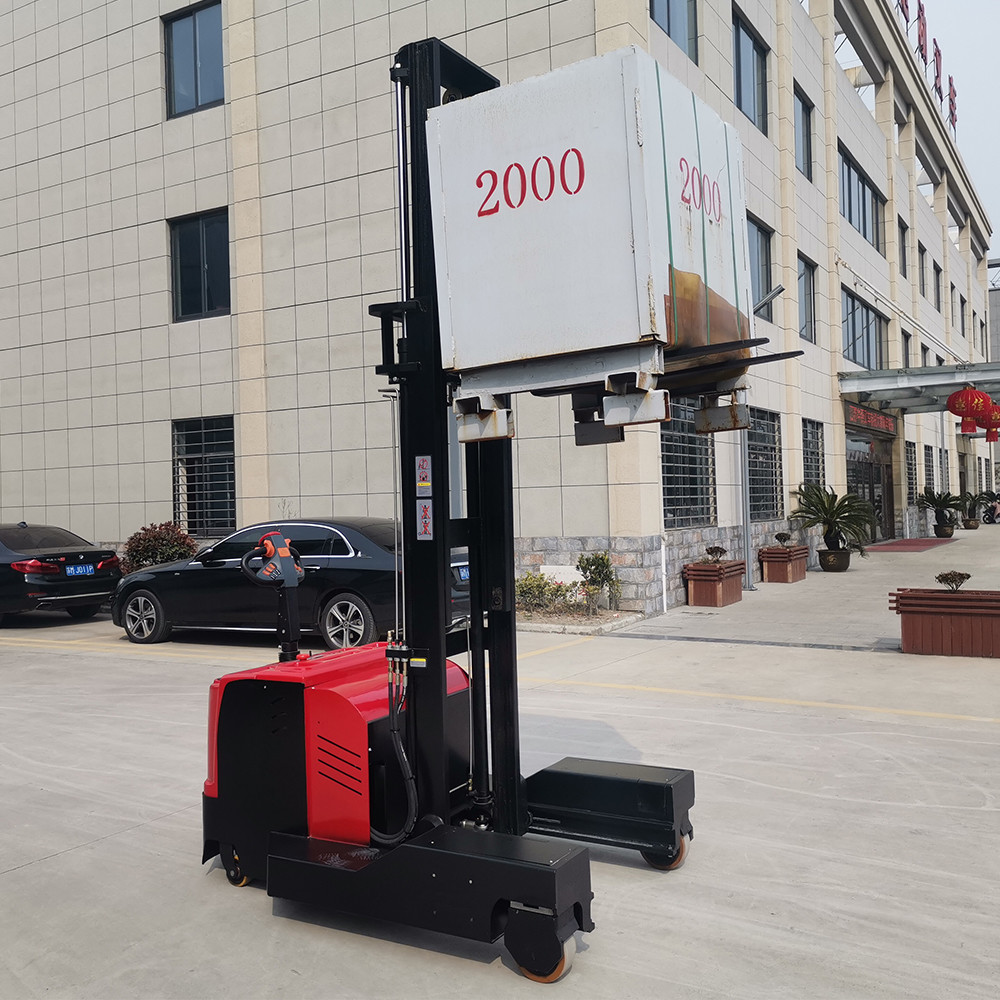

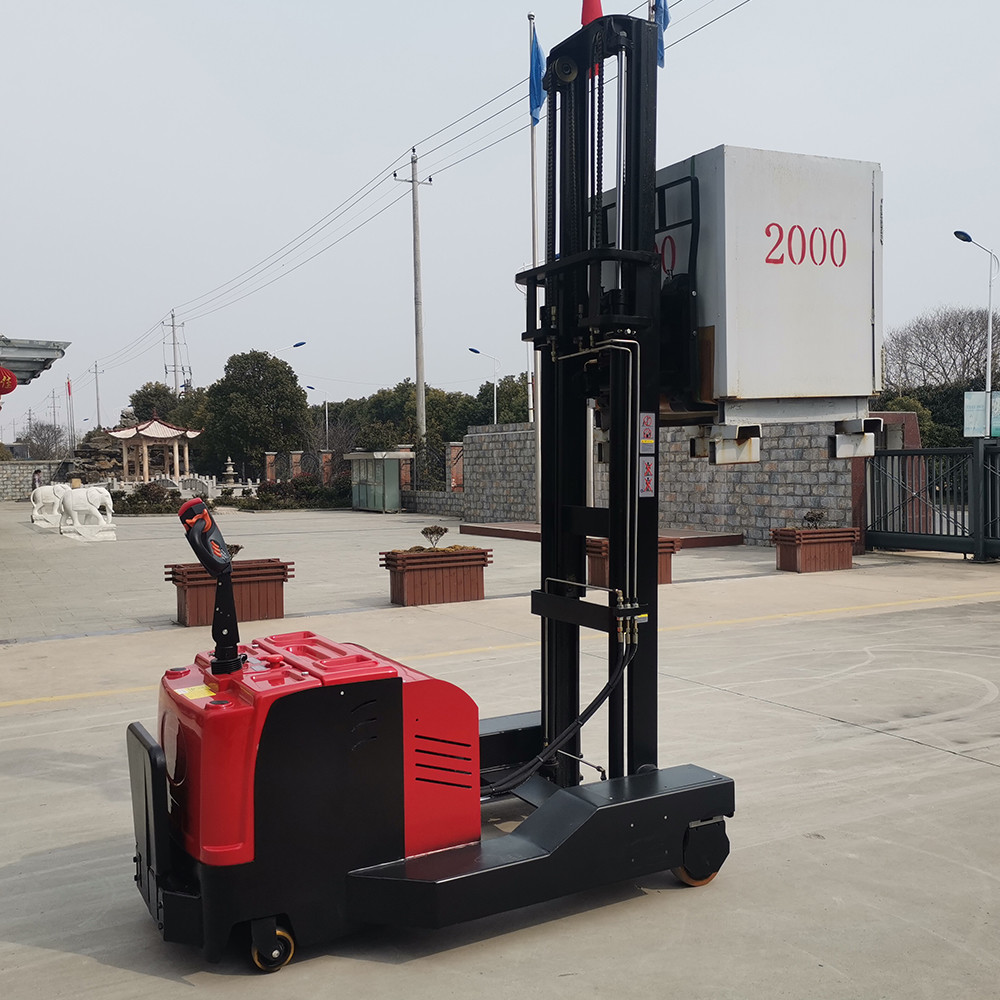

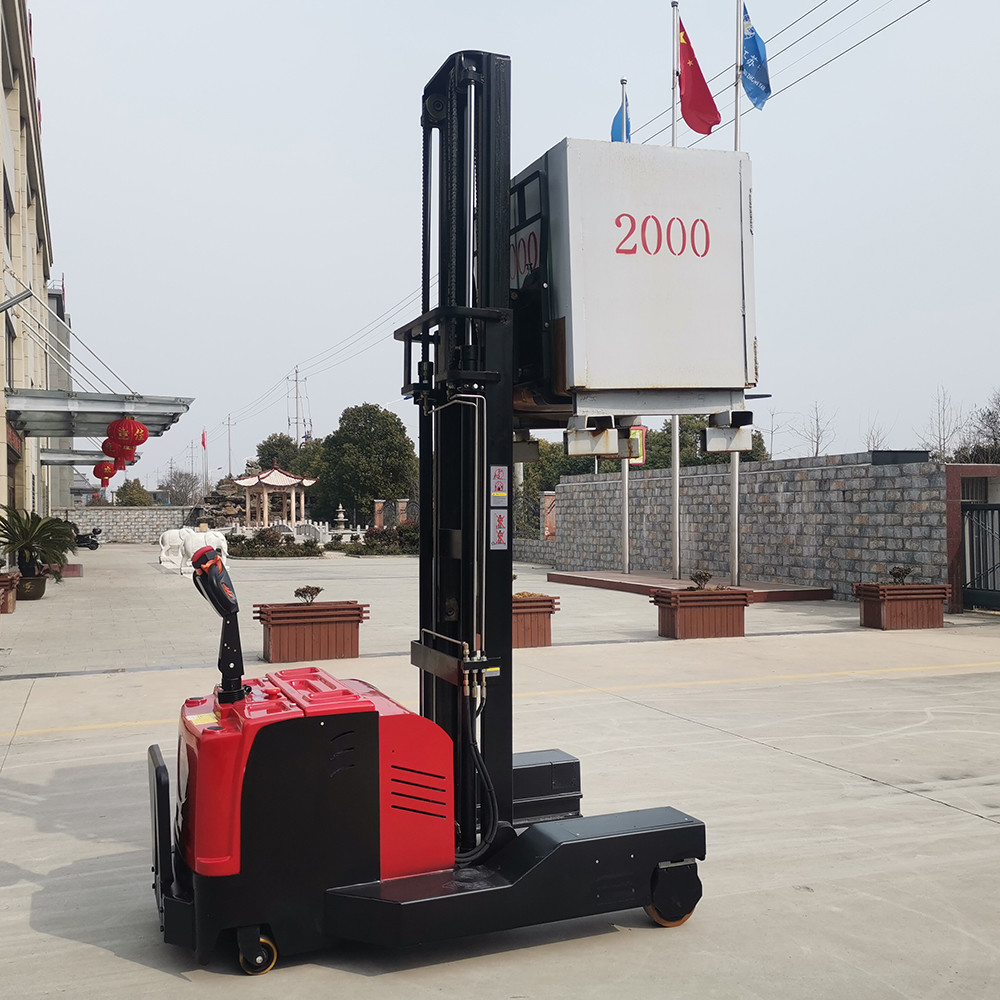

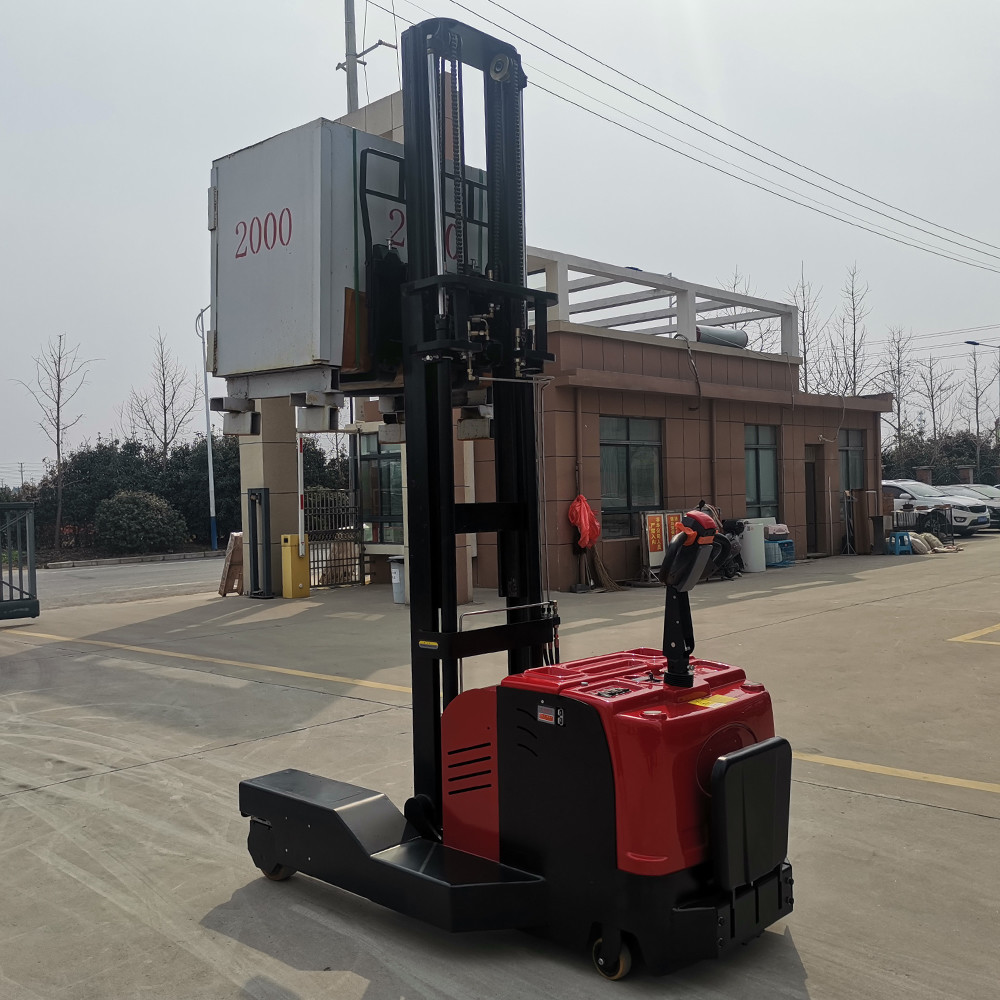

All Direction Reach Stacker Standing Position Driving high quality
Advanced Electronic Drive Wheels: Experience enhanced maneuverability and convenience with state-of-the-art electronic drive wheels, which provide superior turning precision and smooth deceleration.
High-Capacity 280Ah Battery: Benefit from extended operational endurance with a robust 280Ah battery, designed for long-lasting performance during extended work shifts.
Heavy-Duty One-Piece Forged Forks: Enjoy the strength and durability of one-piece forged forks, designed for greater load-bearing capacity and equipped with a dynamic up-and-down swinging feature.
Versatile Pallet Compatibility: Effortlessly handle a wide range of pallet types, including single-sided, double-sided, tic-tac-toe, and chuan-tac-toe, ensuring flexibility in various operational scenarios.
Smooth Gantry Movement: Achieve gentle forward movement and smooth vertical adjustments with a large, high-performance oil cylinder.
Multi-Directional Travel Functions: Navigate with ease using the advanced transverse travel feature and the ability to move sideways both forwards and backwards.
Precision In-Place Maneuverability: Execute in-place turns and complete rotations with unparalleled accuracy, enhancing operational efficiency in tight spaces.
Raise 3m
|
Raise 3m
|
Raise 3m
|
||
Rated lifting capacity
|
kg
|
1000
|
1500
|
2000
|
Overall curb weight
|
kg
|
1600
|
1800
|
2000
|
Overall length (gantry retracted)
|
mm
|
2467
|
2467
|
2567
|
Overall width
|
mm
|
1317
|
1317
|
1317
|
Static height of gantry
|
mm
|
2080
|
2080
|
2080
|
Maximum fork lift height
|
mm
|
3000
|
3000
|
3000
|
Forward distance
|
mm
|
580
|
580
|
580
|
Ground clearance
|
mm
|
65
|
65
|
65
|
Maximum lifting speed (unloaded/full load)
|
mm/s
|
150/90
|
150/90
|
150/90
|
Maximum descent speed (unloaded/full load)
|
mm/s
|
115/380
|
115/380
|
115/380
|
Full load forward speed
|
mm/s
|
195
|
195
|
195
|
Maximum operating speed (unloaded/full load)
|
km/h
|
5.5/4.4
|
5.5/4.4
|
5.5/4.4
|
Minimum outside turning radius
|
mm
|
1600
|
1600
|
1600
|
Maximum climb with full load
|
%
|
5
|
5
|
5
|
Load centre distance
|
mm
|
500
|
500
|
500
|
Travelling motor
|
kw
|
1.5
|
1.5
|
1.5
|
Lifting motor
|
kw
|
3
|
3
|
3
|
Battery rated power
|
V/Ah
|
24/180
|
24/180
|
24/180
|
Drive Wheel Size
|
mm
|
250*80
|
250*80
|
250*80
|
Auxiliary wheel size
|
mm
|
125*50
|
125*50
|
125*50
|
Drive Wheel Type
|
|
Pu
|
Pu
|
Pu
|
