Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | CQD |
Minimum Order Quantity: | 1unit |
Price: | To be negotiated |
Packaging Details: | lron pallet+plastic film |
Delivery Time: | 7 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Product Name: | All Direction Reach Stacker | Loading Capacity: | 2000kg |
---|---|---|---|
Weight: | 2000kg | Ground Clearance: | 65mm |
Battery Capacity: | 24/180AH | Load Center: | 500mm |
Highlight: | Narrow Space Stackers,Flexible Stackers,Ultra Multifunctional Stackers |

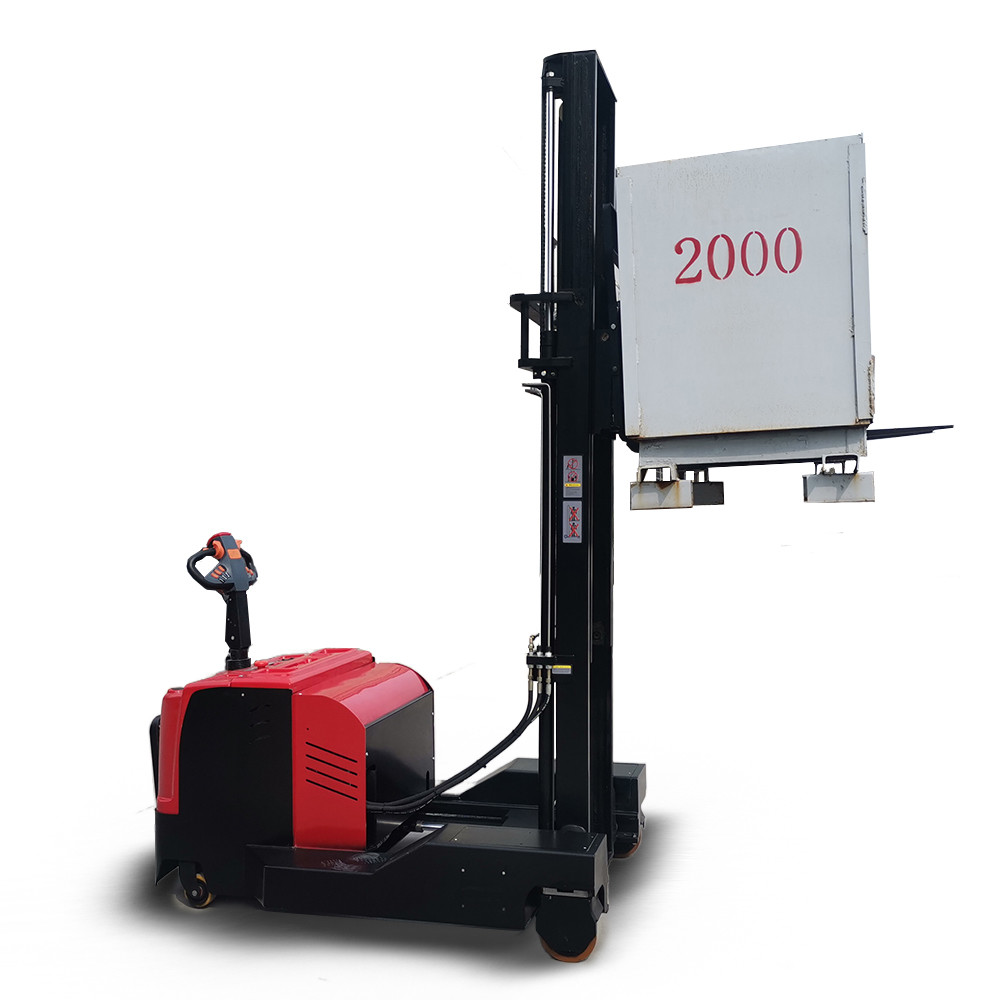

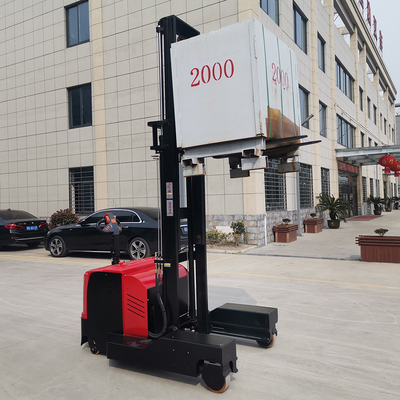

Omni-Directional Stackers Narrow Space Go Round Ultra Multifunctional And Flexible
Omni-directional stackers revolutionize material handling by offering unparalleled maneuverability, enabling movement in any direction—forward, backward, sideways, and diagonally—with precision and ease. This capability allows for effortless navigation in highly constrained environments, optimizing the use of available floor space and enabling high-density storage. Their advanced design minimizes the need for complex maneuvering and reduces operational delays, streamlining workflows and enhancing overall productivity. The stackers’ ability to perform quick, accurate positioning and re-positioning also lowers the risk of product damage and workplace accidents. By integrating cutting-edge technology for seamless directional control, omni-directional stackers provide a competitive edge in improving operational efficiency and flexibility in dynamic warehouse and logistics settings
Raise 3m
|
Raise 3m
|
Raise 3m
|
||
Rated lifting capacity
|
kg
|
1000
|
1500
|
2000
|
Overall curb weight
|
kg
|
1600
|
1800
|
2000
|
Overall length (gantry retracted)
|
mm
|
2467
|
2467
|
2567
|
Overall width
|
mm
|
1317
|
1317
|
1317
|
Static height of gantry
|
mm
|
2080
|
2080
|
2080
|
Maximum fork lift height
|
mm
|
3000
|
3000
|
3000
|
Forward distance
|
mm
|
580
|
580
|
580
|
Ground clearance
|
mm
|
65
|
65
|
65
|
Maximum lifting speed (unloaded/full load)
|
mm/s
|
150/90
|
150/90
|
150/90
|
Maximum descent speed (unloaded/full load)
|
mm/s
|
115/380
|
115/380
|
115/380
|
Full load forward speed
|
mm/s
|
195
|
195
|
195
|
Maximum operating speed (unloaded/full load)
|
km/h
|
5.5/4.4
|
5.5/4.4
|
5.5/4.4
|
Minimum outside turning radius
|
mm
|
1600
|
1600
|
1600
|
Maximum climb with full load
|
%
|
5
|
5
|
5
|
Load centre distance
|
mm
|
500
|
500
|
500
|
Travelling motor
|
kw
|
1.5
|
1.5
|
1.5
|
Lifting motor
|
kw
|
3
|
3
|
3
|
Battery rated power
|
V/Ah
|
24/180
|
24/180
|
24/180
|
Drive Wheel Size
|
mm
|
250*80
|
250*80
|
250*80
|
Auxiliary wheel size
|
mm
|
125*50
|
125*50
|
125*50
|
Drive Wheel Type
|
|
Pu
|
Pu
|
Pu
|
