Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | CQD |
Minimum Order Quantity: | 1unit |
Price: | To be negotiated |
Packaging Details: | lron pallet+plastic film |
Delivery Time: | 7 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Product Name: | All Direction Reach Stacker | Loading Capacity: | 2000kg |
---|---|---|---|
Weight: | 2000kg | Ground Clearance: | 65mm |
Battery Capacity: | 24/180AH | Load Center: | 500mm |
Highlight: | 110V Electric Reach Stacker,127V Electric Reach Stacker,230V Electric Reach Stacker |

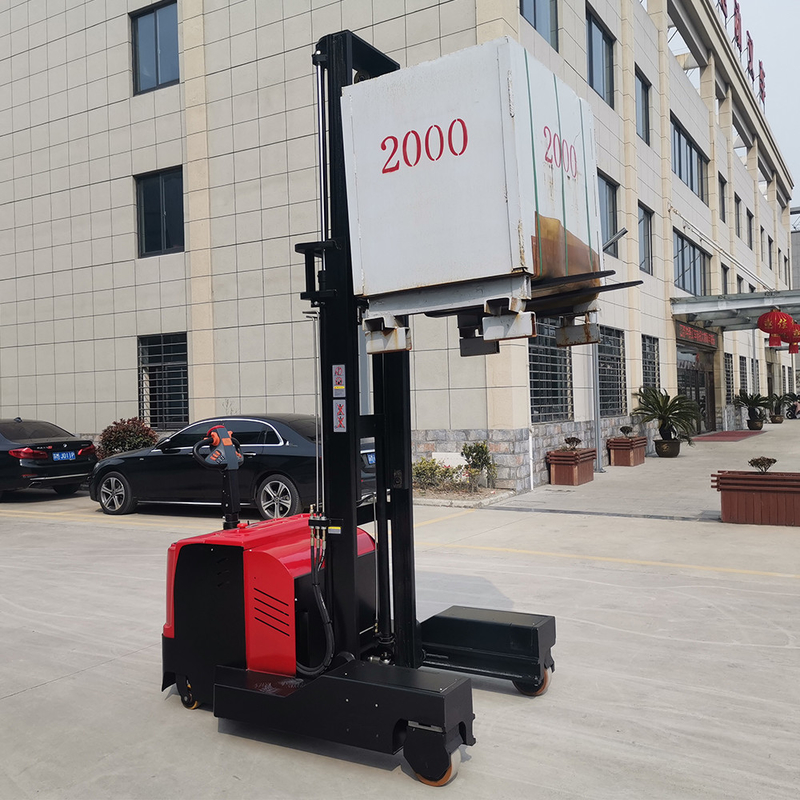

All Direction Electric Reach Stacker 230V 22
Omni-directional stackers offer exceptional flexibility by allowing movement in any direction, including forward, backward, sideways, and diagonal, making them ideal for tight or congested work environments. They enhance space utilization by efficiently operating in confined areas and optimizing storage density. These stackers improve maneuverability, reducing the need for complex turning and adjusting in narrow aisles. They increase operational efficiency by streamlining the handling and stacking processes, reducing time and labor costs. Additionally, omni-directional stackers provide smoother and more precise control, improving safety and reducing the risk of collisions or accidents in busy warehouse settings.
Raise 3m
|
Raise 3m
|
Raise 3m
|
||
Rated lifting capacity
|
kg
|
1000
|
1500
|
2000
|
Overall curb weight
|
kg
|
1600
|
1800
|
2000
|
Overall length (gantry retracted)
|
mm
|
2467
|
2467
|
2567
|
Overall width
|
mm
|
1317
|
1317
|
1317
|
Static height of gantry
|
mm
|
2080
|
2080
|
2080
|
Maximum fork lift height
|
mm
|
3000
|
3000
|
3000
|
Forward distance
|
mm
|
580
|
580
|
580
|
Ground clearance
|
mm
|
65
|
65
|
65
|
Maximum lifting speed (unloaded/full load)
|
mm/s
|
150/90
|
150/90
|
150/90
|
Maximum descent speed (unloaded/full load)
|
mm/s
|
115/380
|
115/380
|
115/380
|
Full load forward speed
|
mm/s
|
195
|
195
|
195
|
Maximum operating speed (unloaded/full load)
|
km/h
|
5.5/4.4
|
5.5/4.4
|
5.5/4.4
|
Minimum outside turning radius
|
mm
|
1600
|
1600
|
1600
|
Maximum climb with full load
|
%
|
5
|
5
|
5
|
Load centre distance
|
mm
|
500
|
500
|
500
|
Travelling motor
|
kw
|
1.5
|
1.5
|
1.5
|
Lifting motor
|
kw
|
3
|
3
|
3
|
Battery rated power
|
V/Ah
|
24/180
|
24/180
|
24/180
|
Drive Wheel Size
|
mm
|
250*80
|
250*80
|
250*80
|
Auxiliary wheel size
|
mm
|
125*50
|
125*50
|
125*50
|
Drive Wheel Type
|
|
Pu
|
Pu
|
Pu
|
