Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | CQD |
Minimum Order Quantity: | 1unit |
Price: | To be negotiated |
Packaging Details: | lron pallet+plastic film |
Delivery Time: | 7 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Product Name: | All Direction Reach Stacker | Loading Capacity: | 2000kg |
---|---|---|---|
Weight: | 2000kg | Ground Clearance: | 65mm |
Battery Capacity: | 24/180AH | Load Center: | 500mm |
Highlight: | 1000kg omni directional forklift,2000kg omni directional forklift,Fully Electric omni directional forklift |

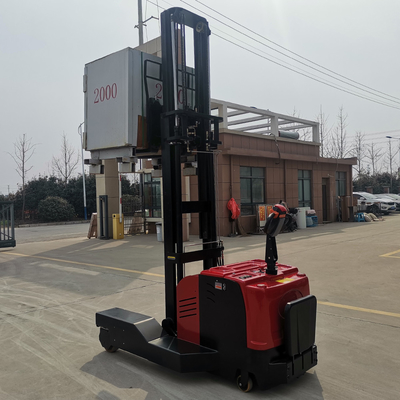

Fully Electric Omni-Directional Stackers All Direction Reach Stacker 1000kg 2000kg
After acquiring an omni-directional stacker, work efficiency is significantly improved in several ways. The stacker’s ability to move seamlessly in all directions—including forward, backward, sideways, and diagonally—enables operators to navigate tight spaces and congested areas with ease. This flexibility allows for quicker and more precise maneuvering, reducing the time required for positioning and stacking goods. The enhanced maneuverability minimizes the need for complex turns and adjustments, streamlining operations and increasing overall productivity. Additionally, the stacker’s advanced movement capabilities contribute to better space utilization, allowing for higher-density storage and more efficient warehouse layouts. This leads to fewer delays, lower operational costs, and a safer working environment by reducing the risk of collisions and accidents.
Raise 3m
|
Raise 3m
|
Raise 3m
|
||
Rated lifting capacity
|
kg
|
1000
|
1500
|
2000
|
Overall curb weight
|
kg
|
1600
|
1800
|
2000
|
Overall length (gantry retracted)
|
mm
|
2467
|
2467
|
2567
|
Overall width
|
mm
|
1317
|
1317
|
1317
|
Static height of gantry
|
mm
|
2080
|
2080
|
2080
|
Maximum fork lift height
|
mm
|
3000
|
3000
|
3000
|
Forward distance
|
mm
|
580
|
580
|
580
|
Ground clearance
|
mm
|
65
|
65
|
65
|
Maximum lifting speed (unloaded/full load)
|
mm/s
|
150/90
|
150/90
|
150/90
|
Maximum descent speed (unloaded/full load)
|
mm/s
|
115/380
|
115/380
|
115/380
|
Full load forward speed
|
mm/s
|
195
|
195
|
195
|
Maximum operating speed (unloaded/full load)
|
km/h
|
5.5/4.4
|
5.5/4.4
|
5.5/4.4
|
Minimum outside turning radius
|
mm
|
1600
|
1600
|
1600
|
Maximum climb with full load
|
%
|
5
|
5
|
5
|
Load centre distance
|
mm
|
500
|
500
|
500
|
Travelling motor
|
kw
|
1.5
|
1.5
|
1.5
|
Lifting motor
|
kw
|
3
|
3
|
3
|
Battery rated power
|
V/Ah
|
24/180
|
24/180
|
24/180
|
Drive Wheel Size
|
mm
|
250*80
|
250*80
|
250*80
|
Auxiliary wheel size
|
mm
|
125*50
|
125*50
|
125*50
|
Drive Wheel Type
|
|
Pu
|
Pu
|
Pu
|
