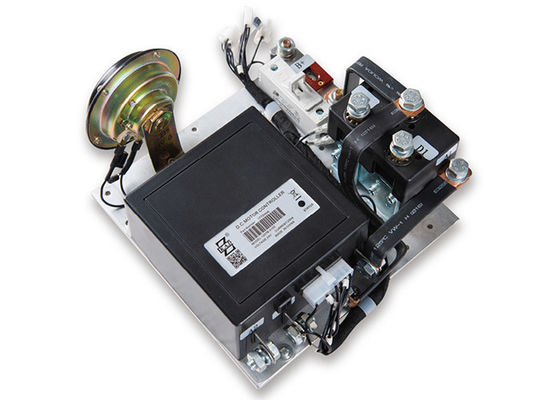

1207B DC 60A-300A Curtis Pmc 1207 Speed Controller Assembly

1207B DC 60A-300A Curtis Pmc 1207 Speed Controller Assembly
1207B DC 60A-300A Curtis Pmc 1207 Speed Controller Assembly 1207B DC 60A-300A Curtis Pmc 1207 Speed Controller Assembly 1207B DC 60A-300A Curtis Pmc 1207 Speed Controller Assembly 1207B DC 60A-300A Curtis Pmc 1207 Speed Controller Assembly 1207B DC 60A-300A Curtis Pmc 1207 Speed Controller Assembly 1207B DC 60A-300A Curtis Pmc 1207 Speed Controller Assembly 1207B DC 60A-300A Curtis Pmc 1207 Speed Controller Assembly 1207B DC 60A-300A Curtis Pmc 1207 Speed Controller Assembly 1207B DC 60A-300A Curtis Pmc 1207 Speed Controller Assembly
Basic Information
Place of Origin: Jiangsu,China
Brand Name: KAD
Certification: CE
Model Number: 1207B-DC
Minimum Order Quantity: 1unit
Price: $235-$240/unit
Packaging Details: 20X25X12 cm,5Kg
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manuf Weight: 3KG
Working Temperature: -40℃to+50℃ PWM: 10khz
Voltage: 24V-80V Warranty: 1.5years
High Light:

300A curtis speed controller

,

1207B-DC curtis pmc controller

,

60A curtis pmc 1207 controller

Curtis Motor Controller Assembly 24V DC Series Motor Speed Controller 1207B-4102



CURTIS PMC 1207B programmable motor speed controllers are the latest upgraded version of popular 1207A controllers. The CURTIS 1207B programmable motor speed controller provides efficient, cost-effective, and simple-to-install control for a variety of small electric vehicles. Typical applications include walkie fork/pallet trucks, mini personnel carriers, and sweepers. The microprocessor-based logic section combined with a proven MOSFET power section gives the 1207B controller high power and advanced features in a simple, compact package.





Description

1.The current control range is up to 60A to 300A, and the users has two modes to choose from.

2. It can choose single-ended 0-5V or two-line 0-5KΩ accelerator.
3. It can detect the accelerator fault and protect the controller effectively in case of accelerator failure.
4. Drive part with built-in polarity protection diode.
5. Run self-inspection when power is on, and continuously monitor during work.
6. All drive inputs have short circuit protection.
7. With full output protection function.
8. High protection level.
9. Three-line multi-function display of serial port.

1207B DC 60A-300A Curtis Pmc 1207 Speed Controller Assembly 0





Parameters

Model
Curtis 1207B
Nominal input voltage (V)
24
Under voltage cut-off voltage(V)
18
Max current limit (A)
200
PMW working frequency (kHz)
10
Working environment temperature (℃ )
-40 to+50
Radiator overheat cut-off (℃)
85
Radiator under temperature cut-off (℃)
-25
Electrical insulation of radiator (VAC)
500
Weight (Kg)
4

1207B DC 60A-300A Curtis Pmc 1207 Speed Controller Assembly 1
