Taizhou Kayond Machinery Co.,Ltd
| Place of Origin: | Jiangsu，China |
|---|---|
| Brand Name: | KAD |
| Certification: | CE |
| Model Number: | FR,FR-1 |
| Minimum Order Quantity: | 1unit |
| Price: | $99-$110/unit |
| Packaging Details: | plywood case |
| Delivery Time: | In stock |
| Supply Ability: | In stock |
| Application: | Stackers | Colors: | Various Colors Can Be Customized According To Your Request |
|---|---|---|---|
| Optimum Operating Range: | 10mA/5V-1.5A/24V | Voltage: | 12-48V |
| Traction Switch: | For Different Control Systems | Warranty: | 1 Years |
| Highlight: | 10mA pallet truck Tiller Head,EP pallet truck Tiller Head,10mA EP Tiller Head |
||
Description

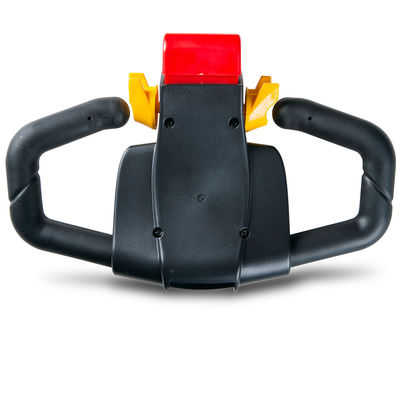

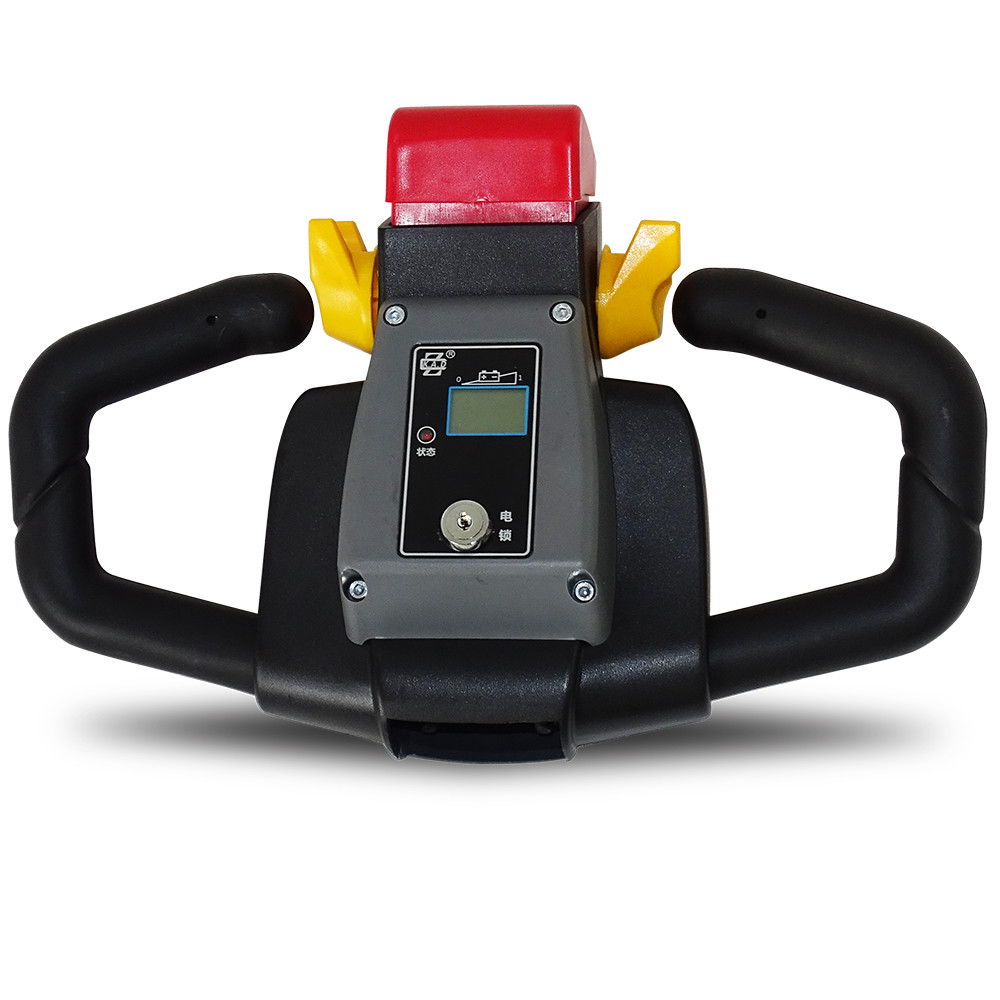

This operating handle is widely used in various electric vehicles. There are many control switches to control the lift, height,advance and retreat of locomotives. Easy to operate, easy to start the button to complete the relevant operations.Anti-wear plastic shell.Ergonomic casting handle.Floating central button switch ensures the safety of equipment.All kinds of traction switches come from well-known manufacturers of controllers.
Parameters
| Switch Mode | Button/tilting | Operating Temperacture | -40℃to 85℃ |
| Max.Power | 48V/1A | Color | Grey/black/red/yellow/As per request |
| Min.Power | 12V/10mA | Certification | CE, RoHS |
| Analog Switch |
Max.Power 48V/4mA Transverse circuit |
Warranty | 1 years |
| Horn Switch |
Arc brush current<0.1mA Microswitch on |
Function | DC/AC |
| Optimum scope of use | 10mA/5V-1.5A/24V | MOQ | 1 Piece |
| Turtle Speed (Matching) | Microswitch on | Price | |
| Optimum scope of use | 5mA/3V-50mA/24V | Port | Ningbo/Shanghai |
