| Place of Origin: | Jiangsu，China |
|---|---|
| Brand Name: | KAD |
| Certification: | CE |
| Model Number: | T600,T600-1 |
| Minimum Order Quantity: | 1unit |
| Price: | $111-$120/unit |
| Packaging Details: | plywood case |
| Delivery Time: | In stock |
| Supply Ability: | In stock |
| Application: | Stackers | Colors: | Various Colors Can Be Customized According To Your Request |
|---|---|---|---|
| Optimum Operating Range: | 5mA/3V-50mA/24V | Voltage: | 24-48V |
| Traction Switch: | For Different Control Systems | Warranty: | 1 Years |
| High Light: | T200 Curtis Control Handle,24V Curtis Control Handle,24V plastic shell Curtis Handle |
||
Description

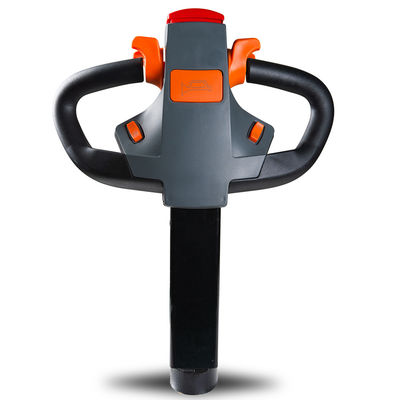

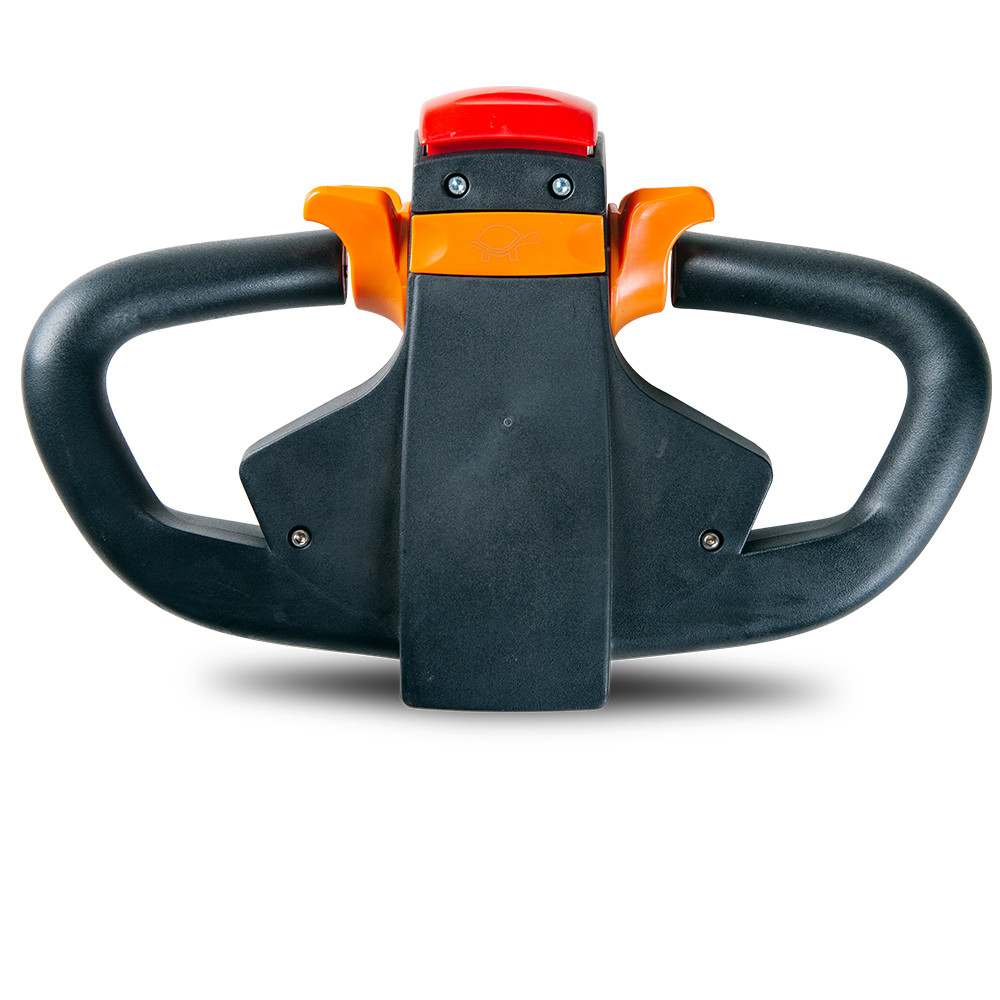

This operating handle is widely used in various electric vehicles. There are many control switches to control the lift, height,advance and retreat of locomotives. Easy to operate, easy to start the button to complete the relevant operations.Anti-wear plastic shell.Ergonomic casting handle.Floating central button switch ensures the safety of equipment.All kinds of traction switches come from well-known manufacturers of controllers.
Parameters
| Technical Specifications | ||
| Operation Elements | ||
| Button | Max. breaking capacity | 48V/1A |
| Min. breaking capacity | 24V/10mA | |
| Analogue switches | Max. breaking capacity | 48VDC/4mA |
| Wiper current | 0.1mA | |
| Signal horn | Micro-switch | NO |
| Connector | 2-pin | |
| Rabbit/turtle(Standard) | Micro-switch | NO |
| Connector | 2-pin | |
| Optimum operating range | 5mA/3V-50mA/24V | |
| Traction switch | For different control systems | |
| Colors | ||
| Various colors can be customized according to your request | ||
| Operating conditions | ||
| Protection class | Tiller head IP 40 | Operation elements and traction switch minimum IP 54 |
