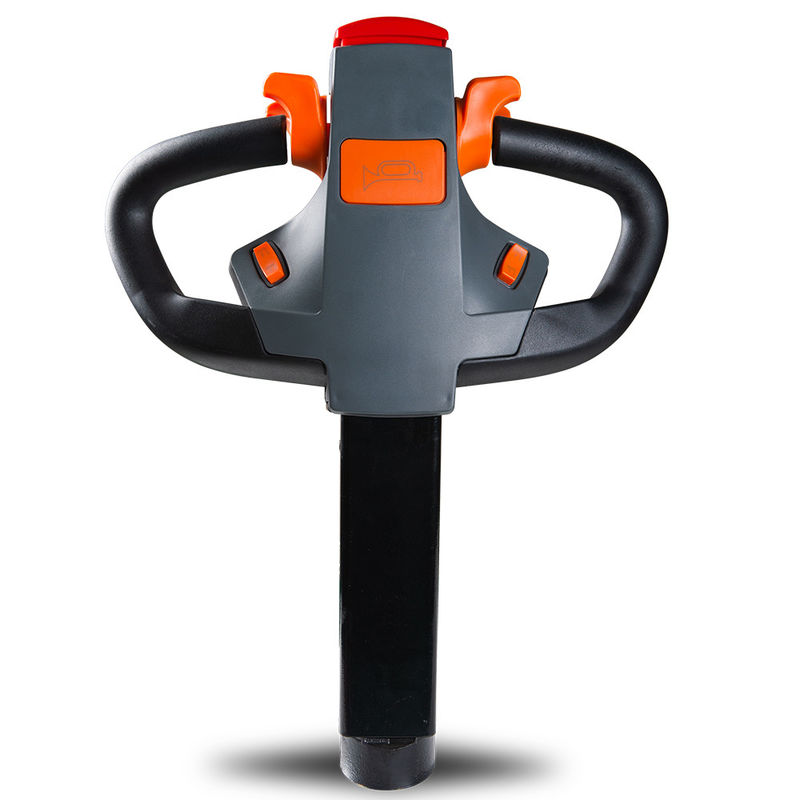

48V 1A RoHS Button Tilting Tiller Head Electric Accelerator

Basic Information

Brand Name:	KAD

Get Best Price Contact Now

Condition:

New

Warranty:

1 Year

After-sales Service Provided:

Free Spare Parts

Voltage:

12v-48v

Highlight:

RoHS Tiller Head

Button tilting Tiller Head

48V 1A Tiller Head

TRACTION SWITCH CONTROL HANDLE ACCELERATION HANDLES TEMO*600 TILLER HEAD

Application

Widely used in various electric vehicles, such as electric stacker, electric pallet truck , tractors and other. There are many control switches to control the vehicle lift, forward and backward. Easy to operate.

Characteristic

1.High quality throttles inside.

2.With forward/backward, horn, turtle speed, lifting/lowering button, Emergency reverse button. Customization is aslo available.

3.Floating central button switch to ensure equipment safety

4.Multi-function buttons, can applicate in different machines.

Parameters

Switch Mode	Button/tilting	Operating Temperacture	-40℃to 85℃
Max.Power	48V/1A	Color	Grey/black/red/yellow/As per request
Min.Power	12V/10mA	Certification	CE, RoHS
Analog Switch	Max.Power 48V/4mA	Warranty	1 years
Analog Switch	Transverse circuit	Warranty	1 years
Horn Switch	Arc brush current<0.1mA	Function	DC/AC
Horn Switch	Microswitch on	Function	DC/AC
Optimum scope of use	10mA/5V-1.5A/24V	MOQ	1 Piece
Turtle Speed (Matching)	Microswitch on	Price	With bracket:$120
Turtle Speed (Matching)	Microswitch on	Price	Without bracket:$100
Optimum scope of use	5mA/3V-50mA/24V	Port	Ningbo/Shanghai

Tag:

IP40 Tiller Head,

EPT Tiller Head,

WPT-2 handle tiller assembly
