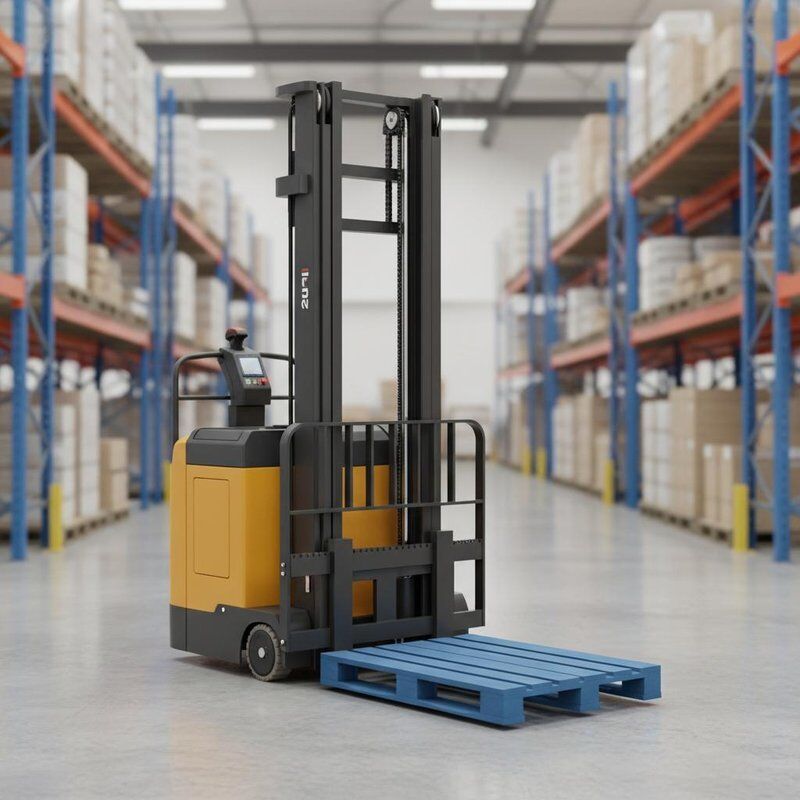

2 Ton Capacity 3 Meter Lift Height Full Electric Pallet Stacker for Warehouse Use

Basic Information

Place of Origin:	China
Brand Name:	KAD
Certification:	CE
Model Number:	CDD15

Minimum Order Quantity:	1unit
Price:	＄1200-＄1400 /unit
Packaging Details:	Iron pallet+plastic film
Delivery Time:	10 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500units/month

Get Best Price Contact Now

Color:	Red/Customized	Product Name:	Electric Forklift
Load Center:	500mm	Load Capacity:	1000-1500kg
Load Height:	3000mm	Feature:	High Efficiency
Battery Cpacity:	48V/32Ah
Highlight:	2 ton electric pallet stacker , 3 meter lift height stacker , full electric warehouse pallet stacker

Double Lift 2ton 3meters Full Electric Light Weight Stacker With Safe Arms For Warehouse Use

Product Overview

Boost warehouse efficiency with our Full Electric Initial Lift Stacker, designed for smooth and effortless pallet handling. Featuring a 3-meter lifting height and dual load capacity options (1.5T & 2T), this electric stacker ensures reliable performance in logistics, manufacturing, and storage operations.

Key Advantages

Full electric operation - No manual effort required, reducing worker fatigue
3m lifting range - Ideal for medium-to-high stacking tasks
1.5T/2T load capacity - Versatile for various pallet weights
Stable & durable - Robust construction for long-term industrial use
Easy maneuverability - Compact design for narrow aisles

Technical Specifications

Specification	Unit	Value
Power source		Battery
Rated load	kg	1500/2000
Load center	mm	500
Operation way		Standing operation, electric lifting, electric gripper, manual moving
Turning radius	mm	1500
Aisle width	mm	2560/2495
Length	mm	2040
Width	mm	830
Height	mm	2100
Mast		Two-Stage Mast
Max lifting height	mm	3000
Min height of forks	mm	200
Running speed (load/unload)	km/h	4.0/5.0
Hoisting speed (load/unload)	mm/s	0.08/0.135
Descent speed (load/unload)	mm/s	0.105/0.097
Climbing capability	%	5/10
Braking mode		Electromagnetism
Tyres, material		Polyurethane
Load wheel dimensions	mm	80 × 70, 2pcs
Battery	v/ah	48/32
Weight	kg	620/750
