Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius

Basic Information

Minimum Order Quantity:	1
Price:	3145

Get Best Price Contact Now

Model NO.:	CDD2035	Load Capacity:	1-2t
Load Center:	500mm	Lift Height:	3500mm
Battery Capacity:	24V/210ah	Tire Type:	PU Wheel
Fork Width:	550/680mm	Turning Radius:	1738/2099mm
Fork Length:	1070mm	Driving Speed:	4 Km/h
Gradient:	3°/5°	Driving Motor:	1.2 KW
Lifting Motor:	2.2 KW	Overall Size:	217015702100mm
Weight:	960.000 Kg
Highlight:	500mm Load Center Electric Pallet Stacker , 1070mm Fork Length Electric Forklift , 1738/2099mm Turning Radius Pallet Stacker

Reasonable Price 2t 3.5m Electric Pallet Stacker with CE Certification

Full electric stackers are designed for loading, stacking, and short-distance palletizing of goods. Featuring a simple structure and flexible operation, they offer excellent micro-operability and high safety performance. Ideal for operations in narrow passages and limited spaces, these stackers can efficiently work in ship cabins, carriages, and containers for palletized goods handling.

Product Specifications

Model	CDD1030	CDD1530
Load Capacity	1000 kg	1500 kg
Lifting Height	3000 mm	3000 mm
Load Center	500 mm	500 mm
Fork Size	1220×100×40 mm	1220×100×40 mm
Ground Clearance	30 mm	30 mm
Pedal Length	410 mm	410 mm
Handler Height	1490 mm	1490 mm
Outer Distance Between Forks	685 mm	685 mm
Inner Distance Between Forks	345 mm	345 mm
Tyre type	Polyurethane	Polyurethane
Control Way	Handler	Handler
Speed Regulation Way	Stepless Speed Regulation	Stepless Speed Regulation
The Min. Turning Radius	1500 mm	1500 mm
Driving Speed with Full Loads	4 km/h	4 km/h
Gradient	3°/5°	3°/5°
Battery	24V/210A	24V/210A
Driving Motor	1.2 KW	1.2 KW
Lifting Motor	2.2 KW	2.2 KW
Tyre Size	300/250 mm	300/250 mm
Overall Size	2170×1570×2100 mm	2170×1570×2100 mm
Weight	900 kg	900 kg
Reference Working Time	6 h	6 h
Increased height each tonnage	1600/2000/2500/3000/3500 mm	1600/2000/2500/3000/3500 mm
Max height	2100/1600/1850/2100/2350 mm	2100/1600/1850/2100/2350 mm

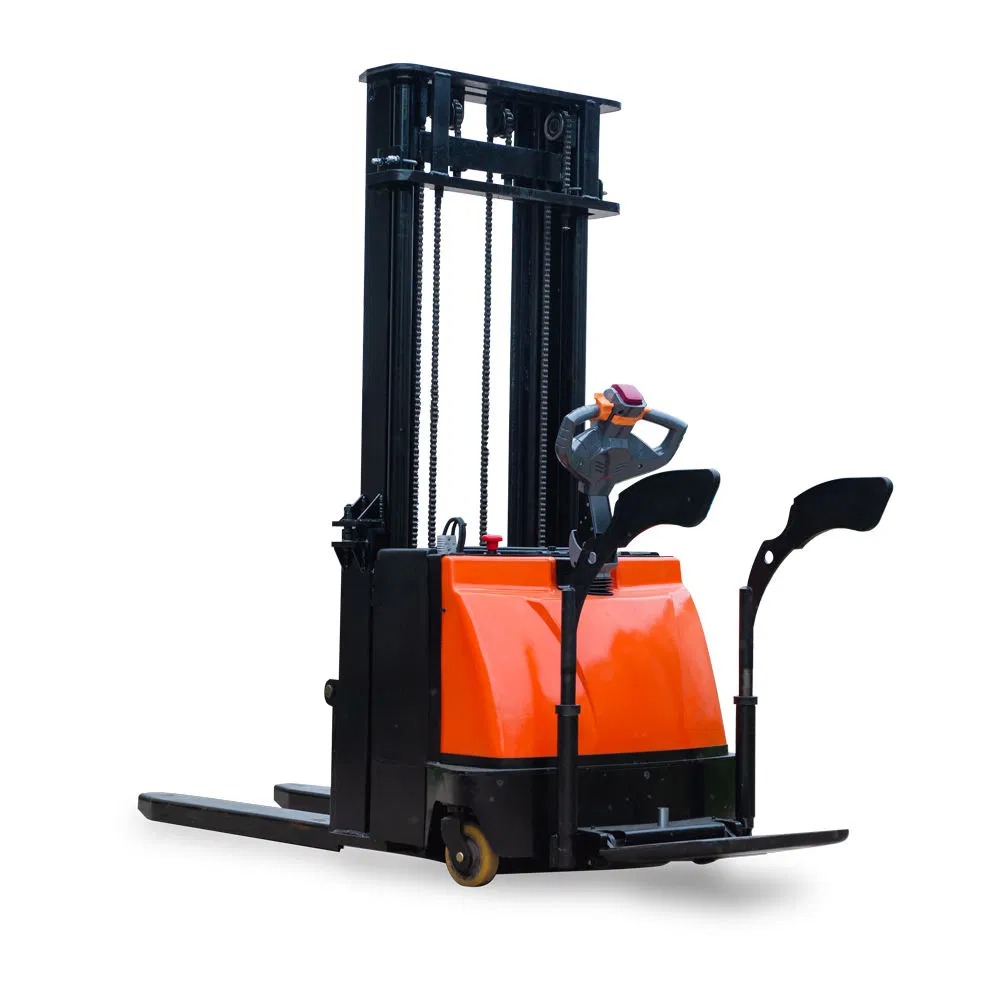

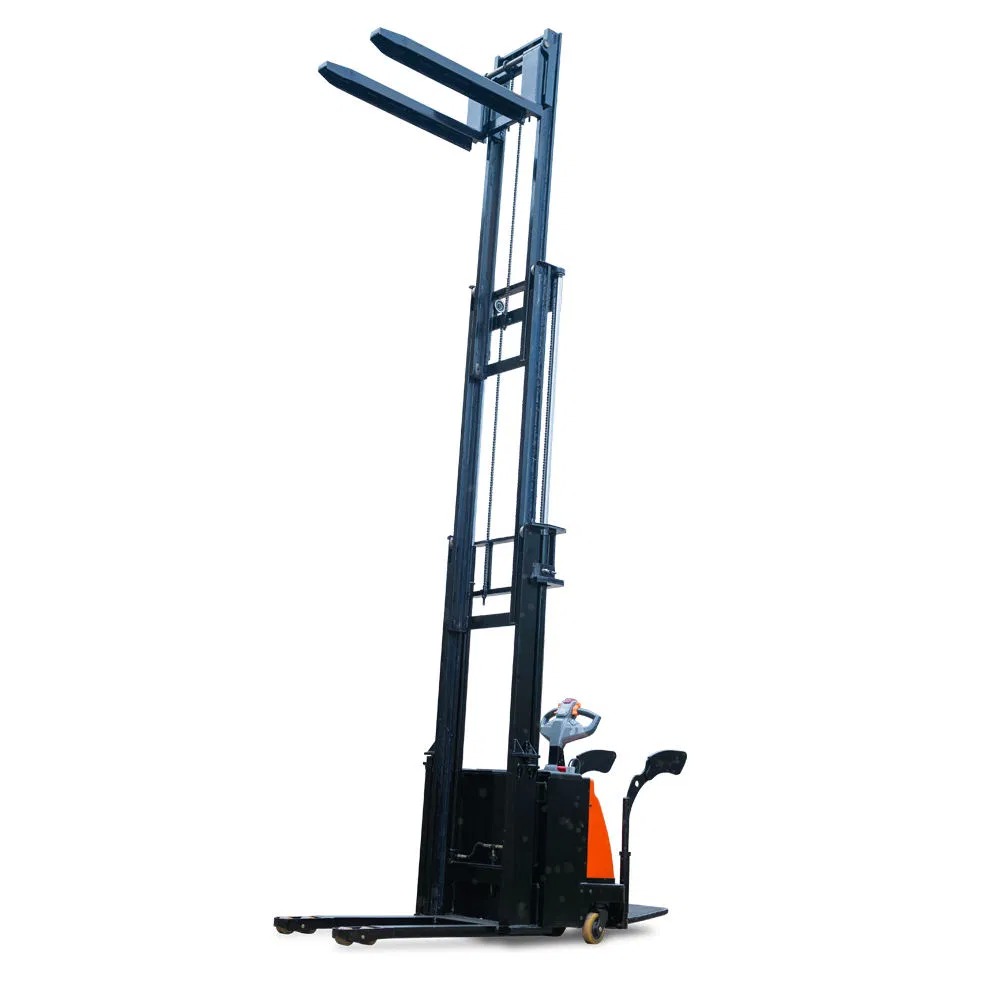

Product Images

Key Components

Control Handle

Brand: KAD - Domestic famous control handle with functional buttons that can control UP/DOWN, FORWARD/BACKWARD movements sensitively.

Operation Panel

Combined with the key, battery indicator, and emergency switch. The functional panel features an ergonomic design for comfortable operation.

Mast System

Strong cylinder and chain ensure smooth fork operation. Available in 1-stage, 2-stage, or 3-stage mast configurations.

Main Features

Side-positioned drive system for enhanced stability
Robust caster wheels for easy maneuverability
CE certified for safety compliance
Energy-efficient electric operation
Compact design for working in confined spaces
Stepless speed regulation for precise control

Frequently Asked Questions

Q1. What is your terms of packing?

A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or as negotiated.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q6: How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
