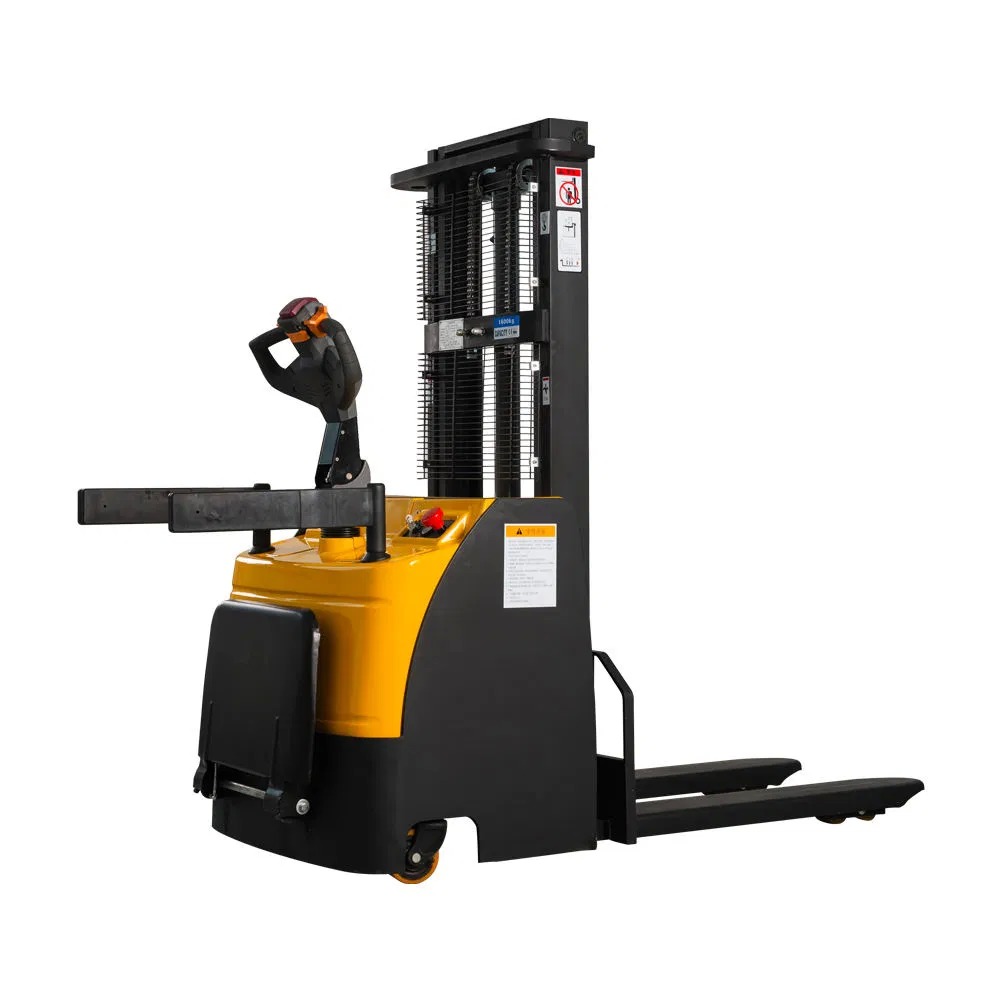

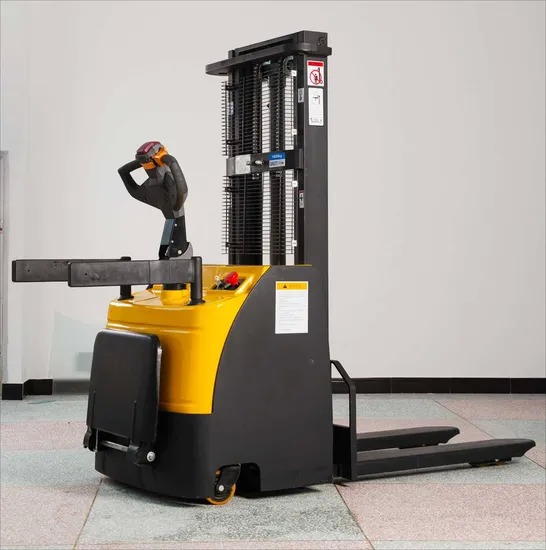

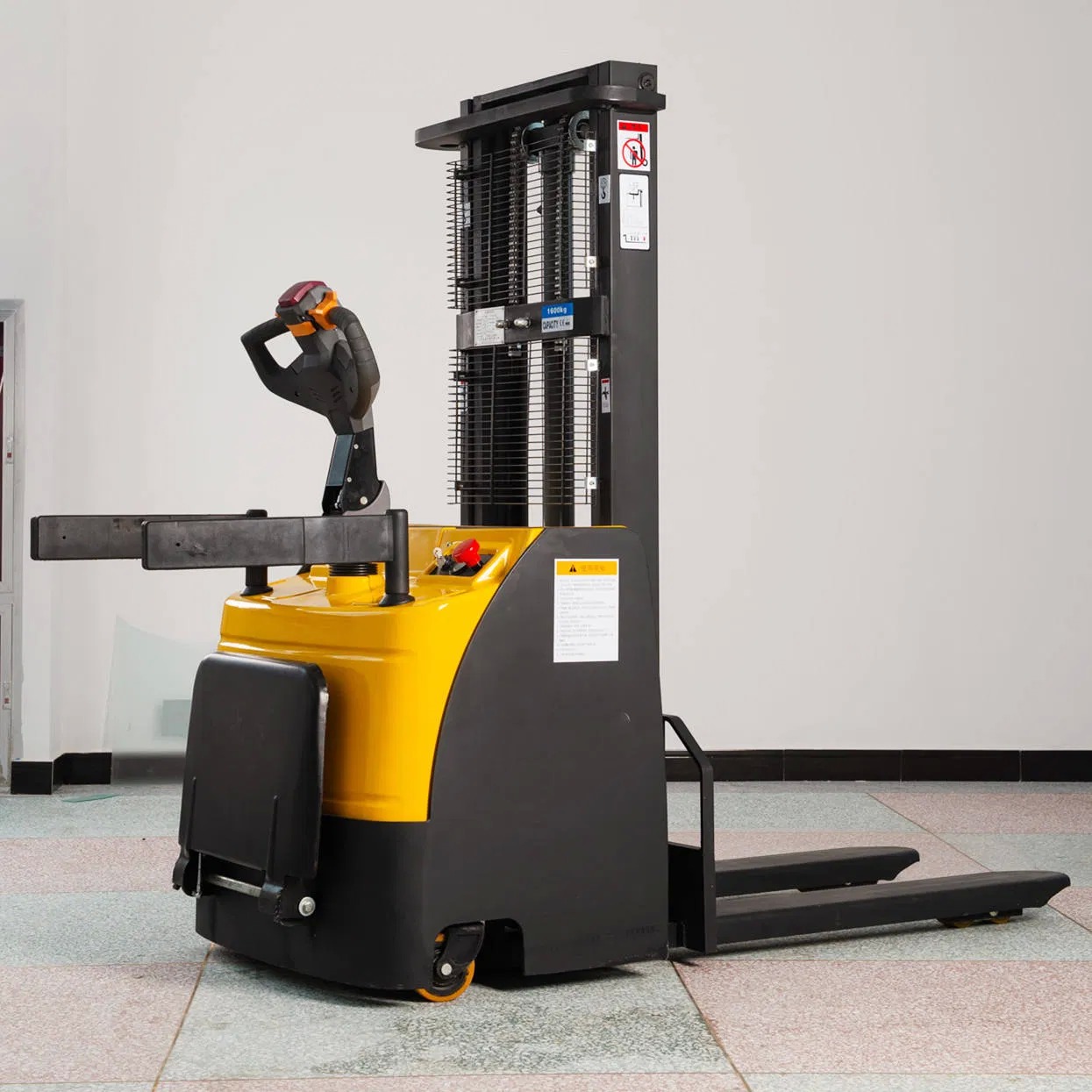

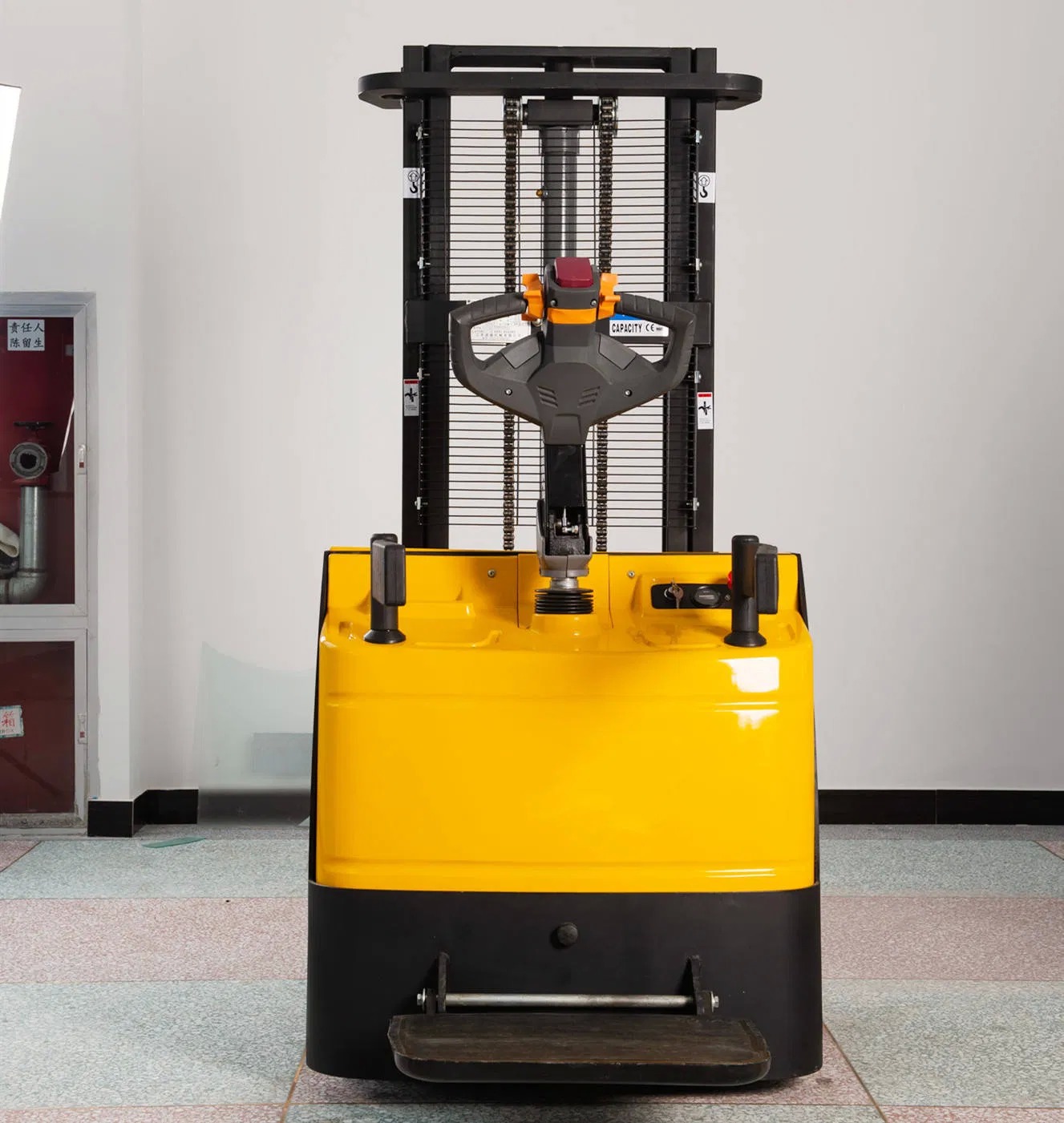

Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius

Basic Information

Minimum Order Quantity:	1
Price:	2885

Get Best Price Contact Now

Model NO.:	CDD1516	Load Capacity:	1-1.5t
Load Center:	500mm	Lift Height:	1600mm
Gross Weight:	900.000kg	Battery Capacity:	24V/210ah
Fork Width:	850mm	Turning Radius:	1738/2099mm
Fork Length:	1070mm	Driving Motor:	1.2KW
Lifting Motor:	2.2KW	Tyre Size:	300/250mm
Overall Size:	217015702100mm	Driving Speed:	4km/h
Gradient:	3°/5°
Highlight:	500mm Load Center Electric Pallet Stacker , 1070mm Fork Length Full Electric Stacker , 1738/2099mm Turning Radius Electric Forklift

Great Electric Pallet Stacker Balance Battery Forklift DC Drive Motor

Full electric stackers are designed for loading, stacking, and short-distance palletizing of goods. Featuring a simple structure and flexible operation, they offer excellent micro-operability and high safety performance. Ideal for operations in narrow passages and limited spaces, these stackers can efficiently work in ship cabins, carriages, and containers for pallet goods handling.

Product Specifications

Model	CDD1030	CDD1530
Load Capacity	1000 kg	1500 kg
Lifting Height	3000 mm	3000 mm
Load Center	500 mm	500 mm
Fork Size	1220×100×40 mm	1220×100×40 mm
Ground Clearance	30 mm	30 mm
Driving Speed with Full Loads	4 km/h	4 km/h
Battery	24V/210A	24V/210A
Driving Motor	1.2 KW	1.2 KW
Lifting Motor	2.2 KW	2.2 KW
Overall Size	2170×1570×2100 mm	2170×1570×2100 mm
Weight	900 kg	900 kg

Detailed Photos

Machine Components

Control Handle: KAD brand domestic famous control handle with functional buttons for sensitive UP/DOWN, FORWARD/BACKWARD control.

Operation Panel: Features key, battery indicator, and emergency switch. The functional panel with beautiful design enhances work efficiency and ease.

Mast System: Strong cylinder and chain ensure smooth fork operation. Available in 1-stage, 2-stage, or 3-stage mast configurations.

Key Features

Side-positioned drive system and strong caster provide exceptional stability and easy maneuverability.
