1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height

1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height
1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height
Basic Information
Place of Origin: Jiangsu, China, CN;JIA
Brand Name: KAD
Minimum Order Quantity: 10
Price: $500
Get Best Price Contact Now
Fork Length: 1070mm Fork Width: 550/680mm
Drive Type: FWD Load Center: 500mm
Turning Radius: 1738/2099mm Load Weight: 1500KG
Load Height: 3500mm Battery Capacity: 24V/210Ah
Weight: 850KG Power Source: DC MOTOR
Load Capacity: 1.5 Ton Lifting Height: 1600mm
Ground Clearance: 130mm Driving Speed: 4 Km/h
Gradient: 10°
Highlight:

1.5 ton electric pallet stacker

,

electric forklift 1500kg load

,

pallet stacker 3500mm height

Frist Class Lightweight Electric Ride-on Stacker 1.5ton 1500kg 3000mm 4000mm
Product Specifications
Attribute Value
Condition New
Fork Length 1070mm
Fork Width 550/680mm
Drive Type FWD
Applicable Industries hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising
Terrain Adaptability Indoor Flooring
Color Green/Red/Yellow/Customized
Tire PU Wheel
Load Center 500mm
Turning radius 1738/2099mm
Load weight 1500KG
Load height 3500mm
Battery Capacity 24V/210Ah
Warranty of core components 1 Year
Weight (KG) 850
Power Source DC MOTOR
Warranty 1 Year
Type Stacker Forklift
Load Capacity 1.5 ton
Product Overview
The 1.5 Ton 3.5 Meter Electric Lightweight Stacker Forklift features an AC motor and is designed for easy operation in warehouse environments. These full electric stackers are ideal for loading, stacking, and short distance palletizing of goods. With their simple structure and flexible operation, they offer excellent micro operability and high safety performance.
Perfect for operations in narrow passages and limited spaces, these stackers can enter ship cabins, carriages, and containers for loading, unloading, stacking, and handling of pallet goods.

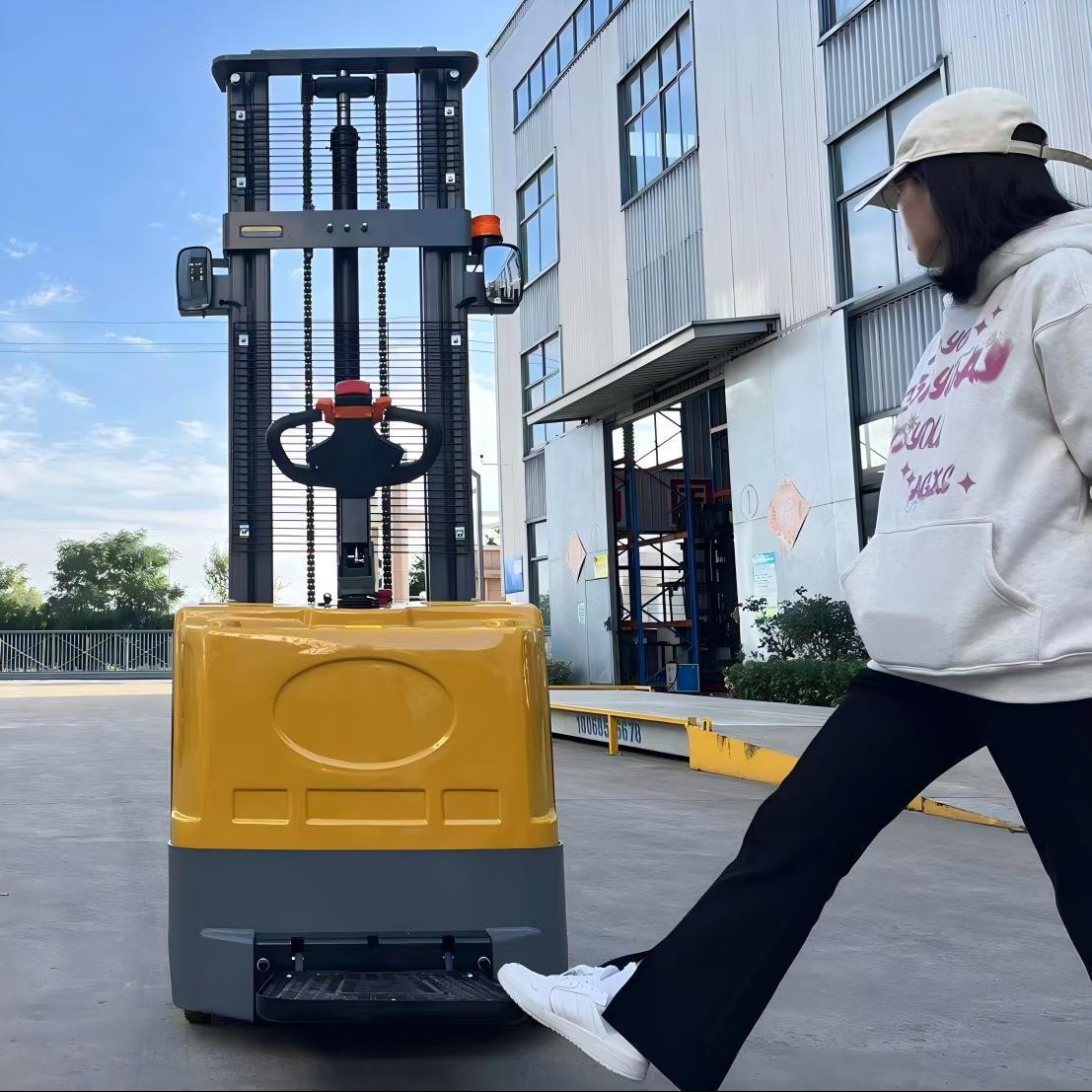

1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 0

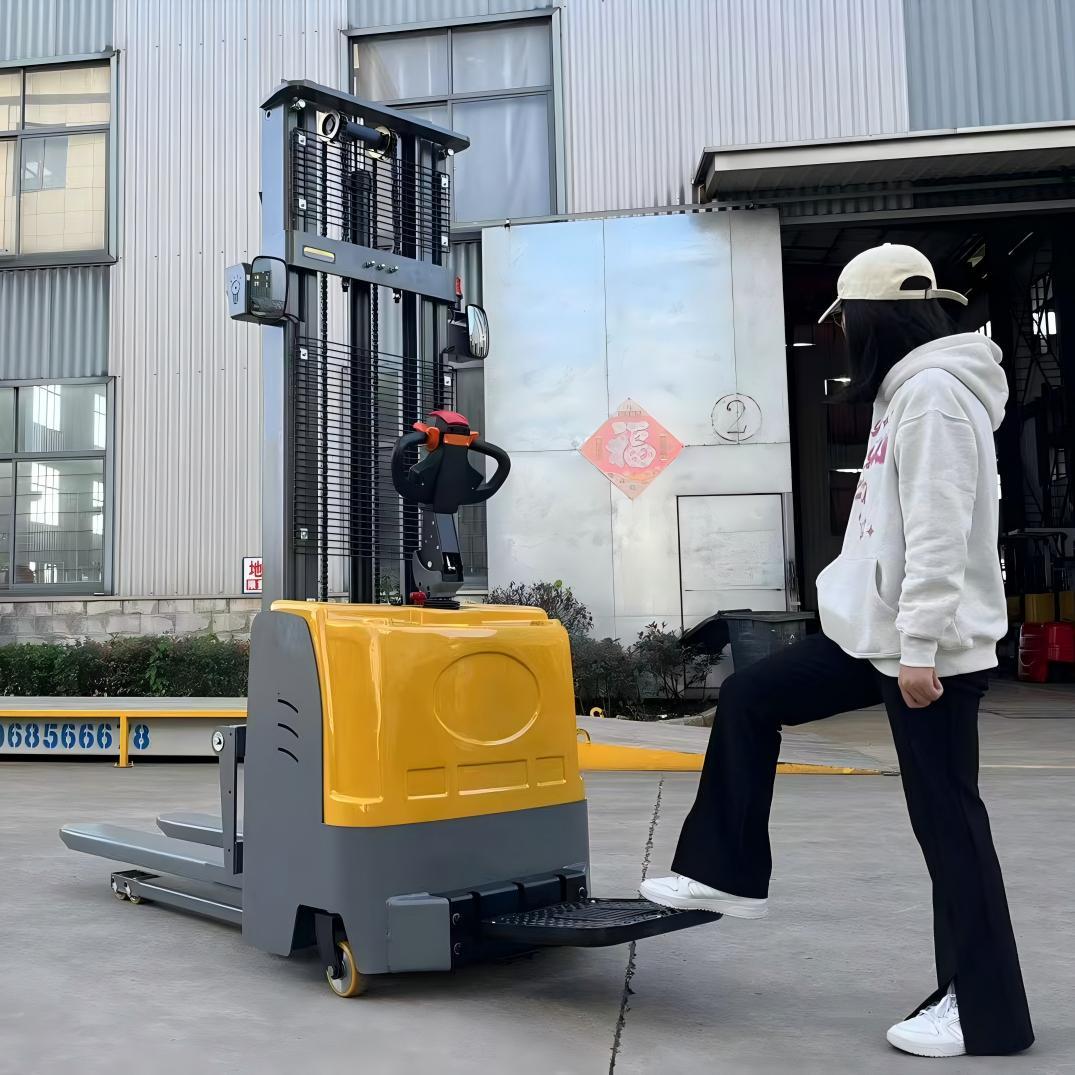

1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 1

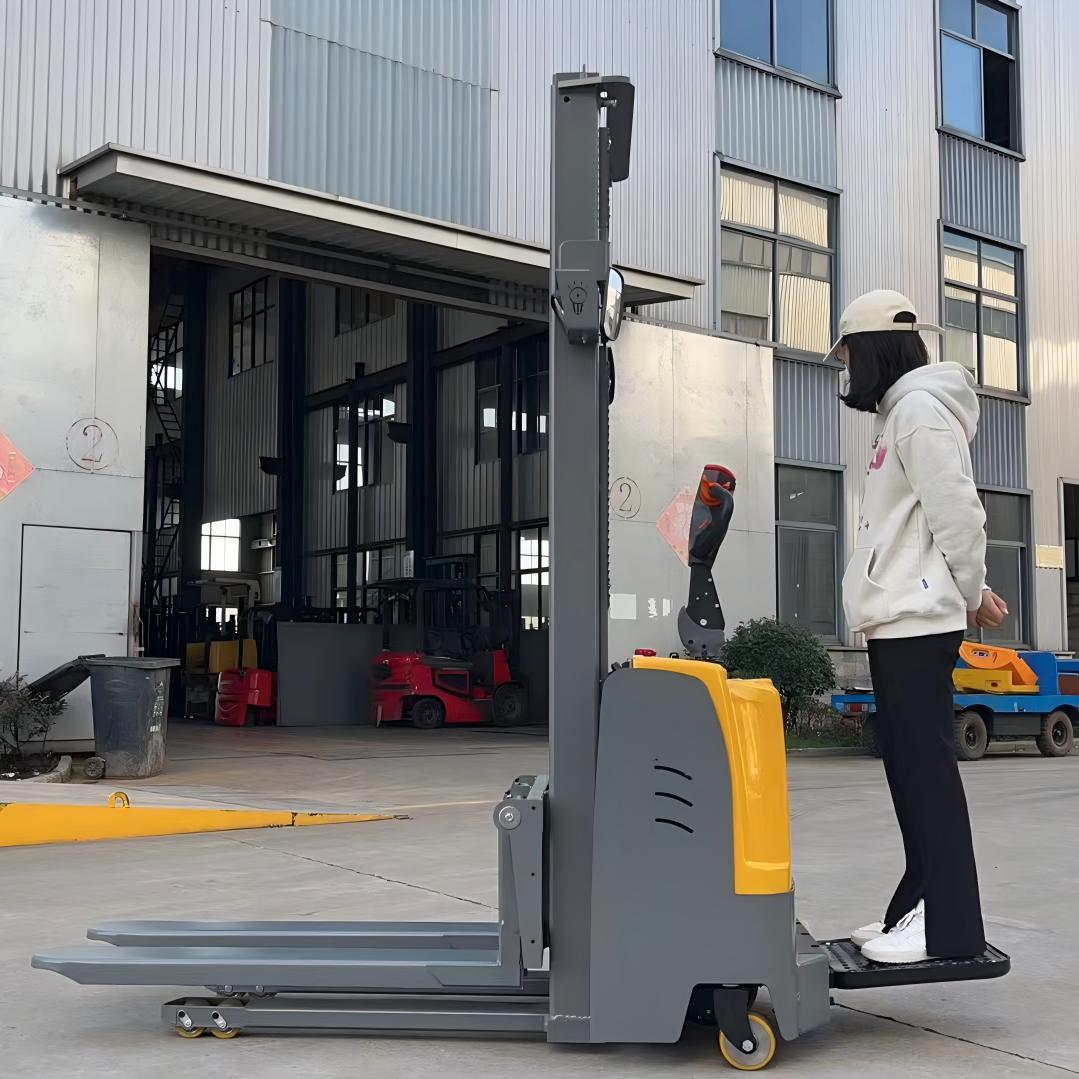

1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 2

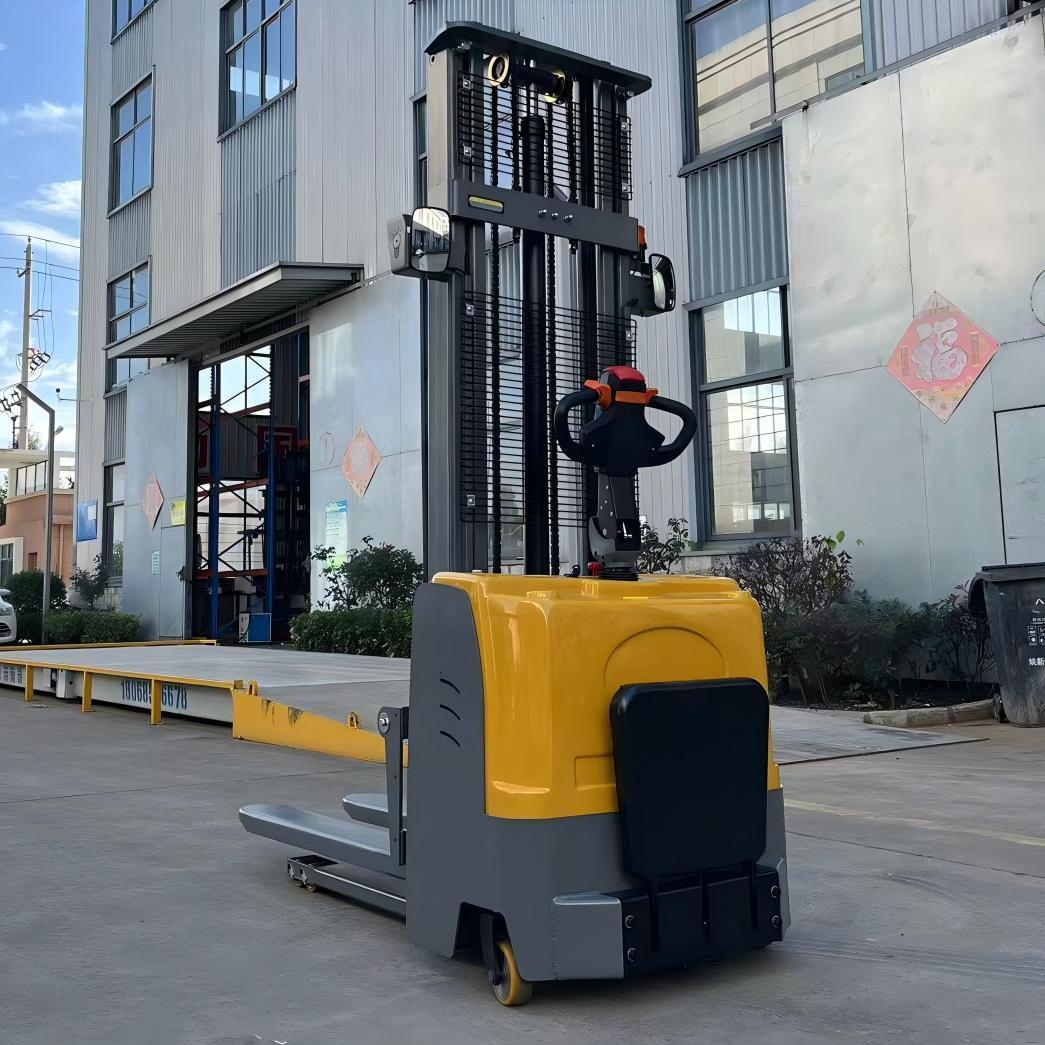

1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 3
Key Features
  • AC drive motor with no carbon brushes, reducing maintenance costs
  • Vertical drive motor design for easier inspection and repair
  • Integrated micro-switches for easy replacement
  • Easy-access battery cover for convenient maintenance
  • Display with hour meter and battery status indicator
  • Controller with self-diagnosis system for easier troubleshooting
  • Side positioned drive system for stability
  • Strong caster wheels for durability
Technical Specifications
Model CDD1030 CDD1530
Load Capacity 1000 kg 1500 kg
Lifting Height 1600 mm 1600 mm
Load Center 500 mm 500 mm
Fork Size 1220*100*40 mm 1220*100*40 mm
Ground Clearance 130 mm 130 mm
Speed with Full Load 4 km/h 4 km/h
Battery 24V/80A 24V/80A
Weight 900 kg 900 kg
Machine Components
Control Handle
Features a sensitive control handle with function buttons for precise operation of lifting/lowering and forward/backward movement.
Operation Panel
Combines key switch, battery indicator, and emergency switch in a functional, ergonomic design for easy operation.
1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 4
1.5 Ton Electric Pallet Stacker Forklift 1500kg Load 3500mm Height 5
Lifting Mechanism
Features strong cylinders and chains for smooth fork operation. Available with 1-stage, 2-stage, or 3-stage mast options.
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or as negotiated.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
