Place of Origin: | Jiangsu,China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | MX580S |
Minimum Order Quantity: | 1unit |
Price: | $3000-$3500/unit |
Packaging Details: | Iron pallet of Single Mast Aluminum Aerial Work Platform 8 Meters Vertical Lift |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100units/month |
Load Capacity: | 230kg | Platform Size: | 1.67m*0.74m |
---|---|---|---|
Max. Lifting Height: | 12m | Overall Length: | 1810m |
Overall Width: | 760mm | Color: | Customers' Requirements |
Warranty: | 1 Year | After-sales Service Provided: | Overseas Service Center Available,Video Technical Support,Free Spare Parts |
Application: | Widely,For Workshops,logistics And Transportation |

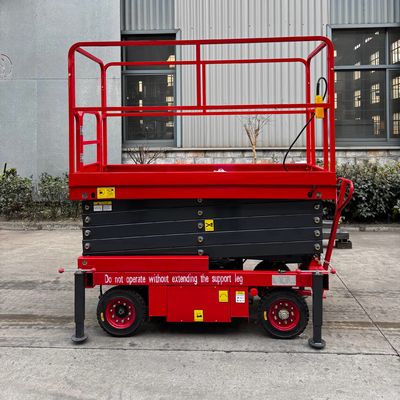

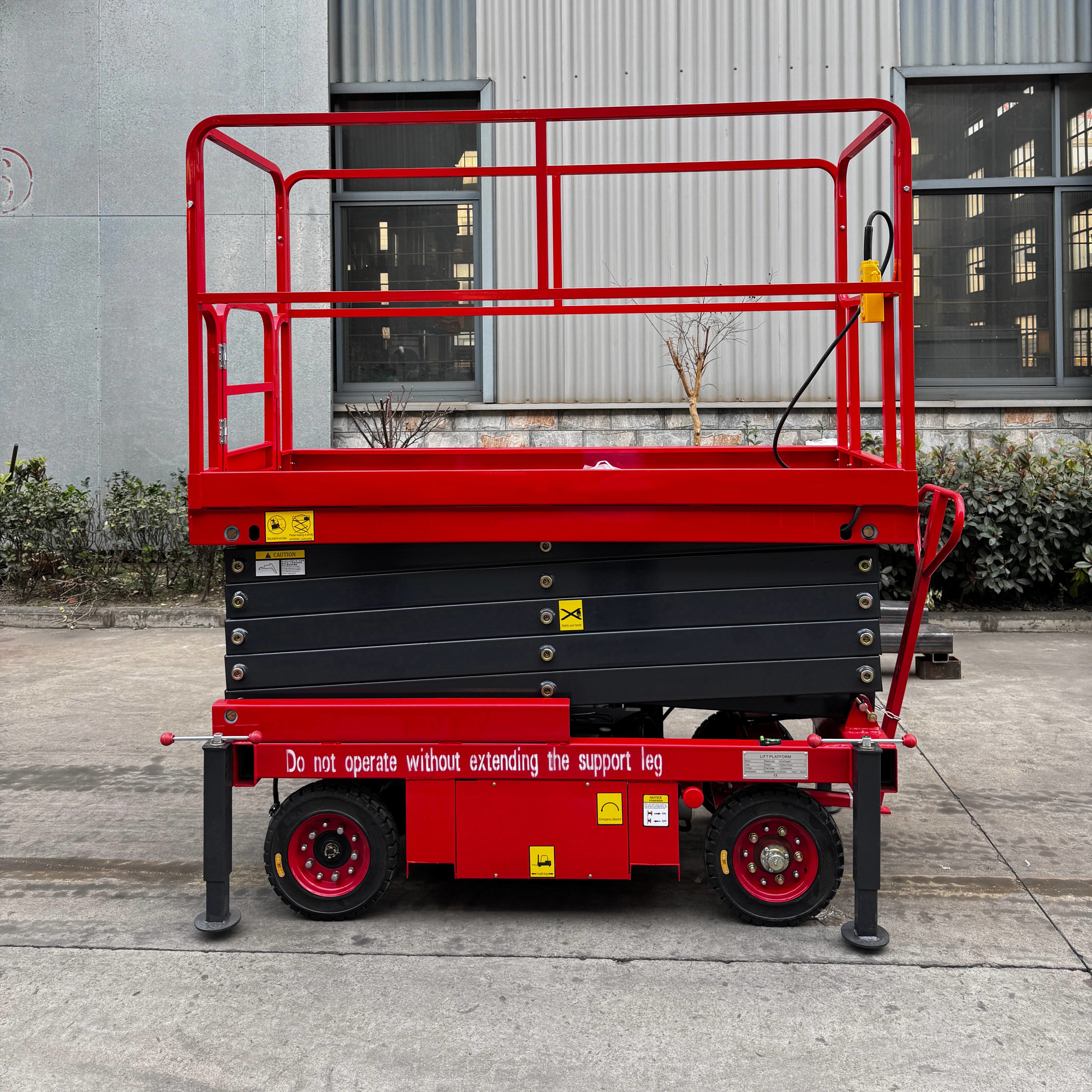

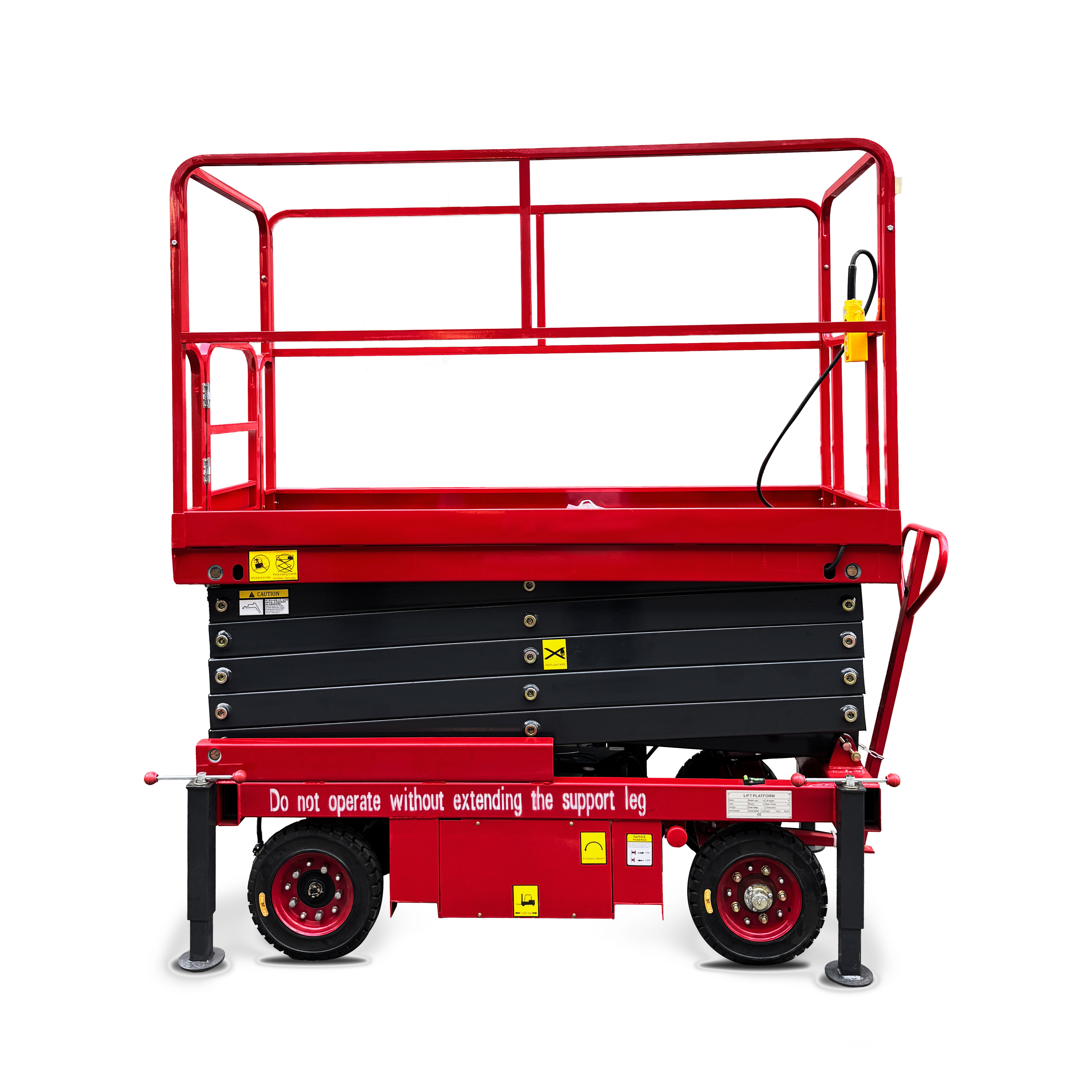

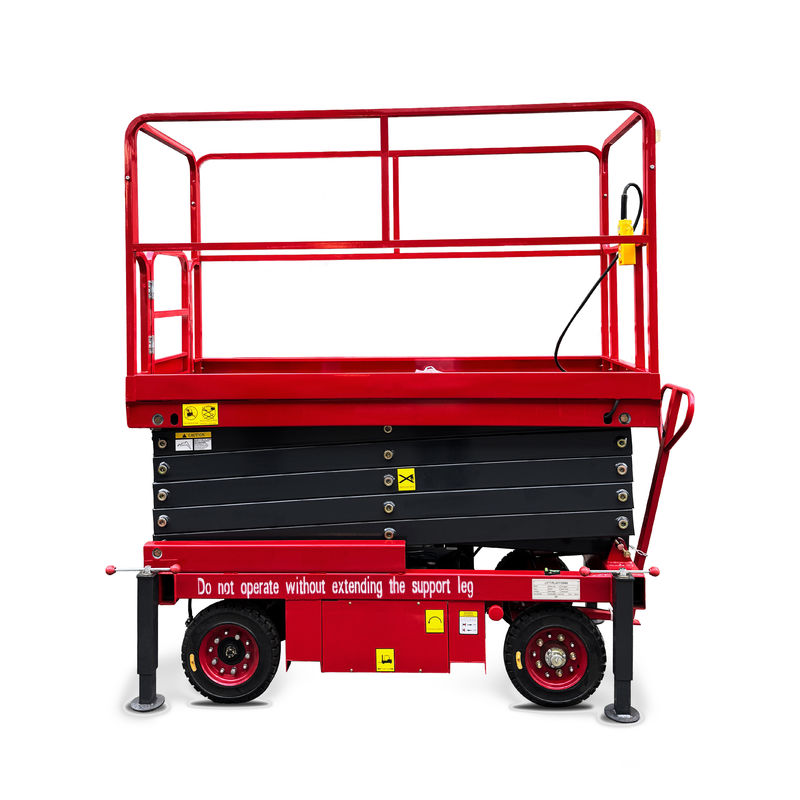

Manual Push Scissor Lifter Industrial Scissor Lift Mobile Elevating Lifter Automotive Cargo Lift Hydraulic Scissor Lift

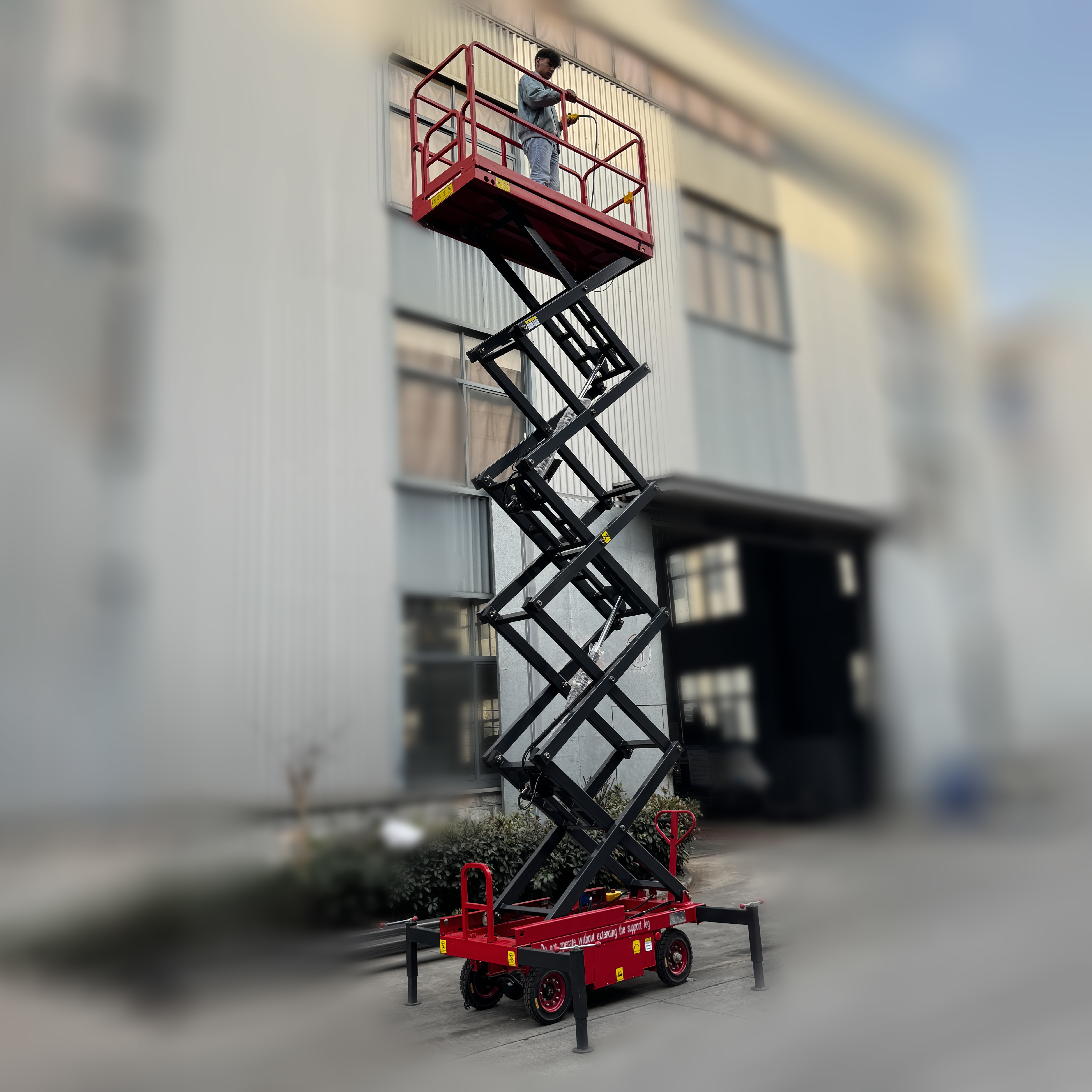

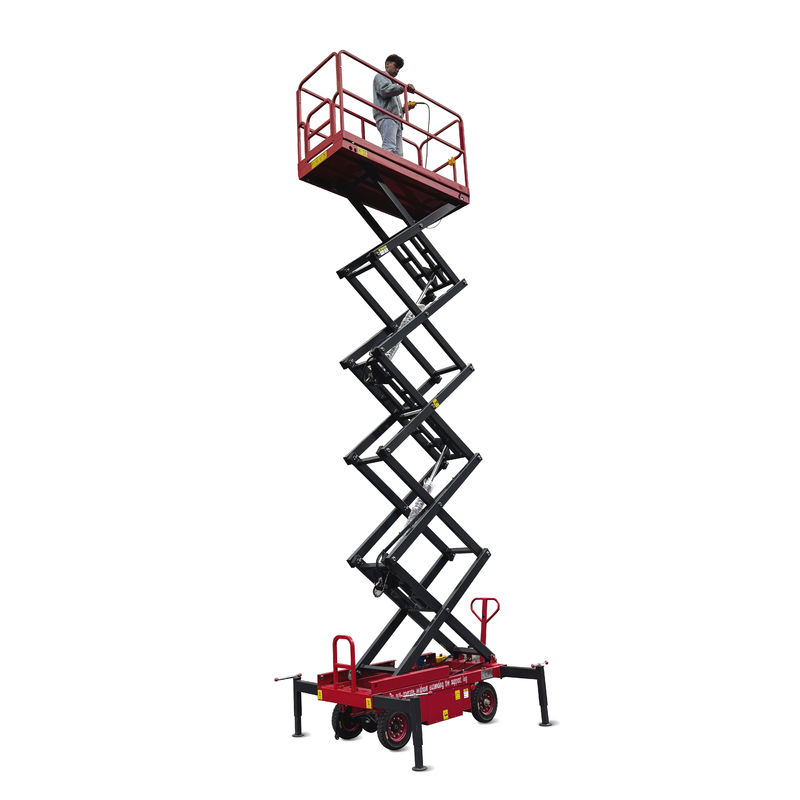

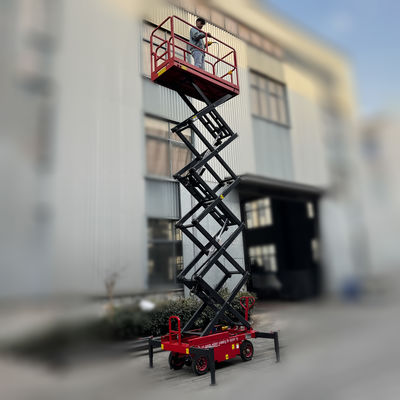

The elevator adopts a double shear structure, providing stable lifting performance and larger working space. The maximum carrying capacity is 320kg, which can accommodate multiple workers and necessary tools to ensure efficient workflow. The lifting height of 12 meters enables operators to easily reach heights and complete various challenging tasks.
The hydraulic system is the core of the elevator, using high-quality hydraulic cylinders and pumps to ensure smooth and reliable lifting motion. In addition, the electric drive system simplifies the operation; Just press the button, and the platform can be raised or lowered, greatly improving work efficiency.
In terms of safety, the elevator is equipped with various safety devices, including anti fall systems, emergency stop buttons, and overload protection devices. If the platform is tilted or overloaded, the anti fall system can automatically lock in place to prevent accidental falls. The emergency stop button allows
Model
|
MX580S
|
MX600SN
|
MX800SN
|
MX800S
|
MX1000S
|
MX1200S
|
S.W.L
|
230kg
|
230kg
|
230kg
|
450kg
|
320kg
|
320kg
|
S.W.L on Extension
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
Max.Workers Number
|
2
|
2
|
2
|
2
|
2
|
2
|
Working height max
|
7.8m
|
8m
|
10m
|
10m
|
12m
|
13.8m
|
Platform height max
|
5.8m
|
6m
|
8m
|
8m
|
10m
|
11.8m
|
Overall Length
|
1.81m
|
2.43m
|
2.43m
|
2.43m
|
2.43m
|
2.43m
|
Overall Width
|
0.76m
|
0.81m
|
0.81m
|
1.15m
|
1.15m
|
1.15m
|
Overall Height( Rails Up)
|
2.16m
|
2.18m
|
2.3m
|
2.31m
|
2.42m
|
2.55m
|
Overall Height( Rails Down)
|
1.82m
|
1.85m
|
1.87m
|
1.76m
|
1.91m
|
2.03m
|
Platform size(LxW)
|
1.67m*0.74m
|
2.27m*0.81m
|
2.27m*0.81m
|
2.27m*1.12m
|
2.27m*1.12m
|
2.27m*1.12m
|
Platform extension size
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
Ground Clearance ( Stowed)
|
0.09m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
Ground Clearance(Raised)
|
0.019m
|
0.019m
|
0.019m
|
0.019m
|
0.019m
|
0.019m
|
Wheelbase
|
1.36m
|
1.87m
|
1.87m
|
1.87m
|
1.87m
|
1.87m
|
Turning radius (inside)
|
0m
|
0m
|
0m
|
0m
|
0m
|
0m
|
Turning radius (outside)
|
1.64m
|
2.10m
|
2.10m
|
2.10m
|
2.10m
|
2.10m
|
Lift/Drive Motor
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/4.5kw
|
Travel Speed( Stowed)
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
Travel Speed( Raised)
|
1km/h
|
1km/h
|
1km/h
|
1km/h
|
1km/h
|
1km/h
|
Raise/Lower time
|
18/22sec
|
35/25sec
|
40/30sec
|
40/30sec
|
60/40sec
|
70/45sec
|
Power source
|
4*6V/210Ah
|
4*6V/225Ah
|
4*6V/225Ah
|
4*6V/225Ah
|
4*6V/240Ah
|
4*6V/260Ah
|
Charger
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
Gradeability
|
25%
|
25%
|
25%
|
25%
|
25%
|
25%
|
