3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces

3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces
3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces
3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces
Basic Information
Place of Origin: China
Brand Name: KAD
Certification: CE
Model Number: CDDW
Minimum Order Quantity: 1unit
Price: $1200- $1680/ Unit
Packaging Details: iron pallet +plastic film
Delivery Time: 7work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50units/month
Get Best Price Contact Now
Product Name: Electric Walkie Stacker Load Center: 500 Mm
Place Of Origin: CN;JIA Load Weight: 1000/1500KG
Load Height: 3000mm Or Customized Feature: Easy Operation Safety Convenience
Highlight:

3500mm Electric Walkie Stacker

,

Forged Fork Electric Walkie Stacker

Product Application

3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces

The Full Electric Walkie Stacker with wide fixed legs and forged forks is designed for efficiency and stability in material handling. Its wide fixed legs provide a robust foundation, ensuring safety and reducing the risk of tipping when lifting heavy loads. The forged forks offer exceptional strength and durability, making it suitable for various pallet types, including double-sided pallets. With its electric operation, the stacker enables smooth and effortless maneuvering in tight spaces, enhancing productivity in warehouses and distribution centers. This equipment combines advanced features to improve operational efficiency and safety in diverse handling tasks.

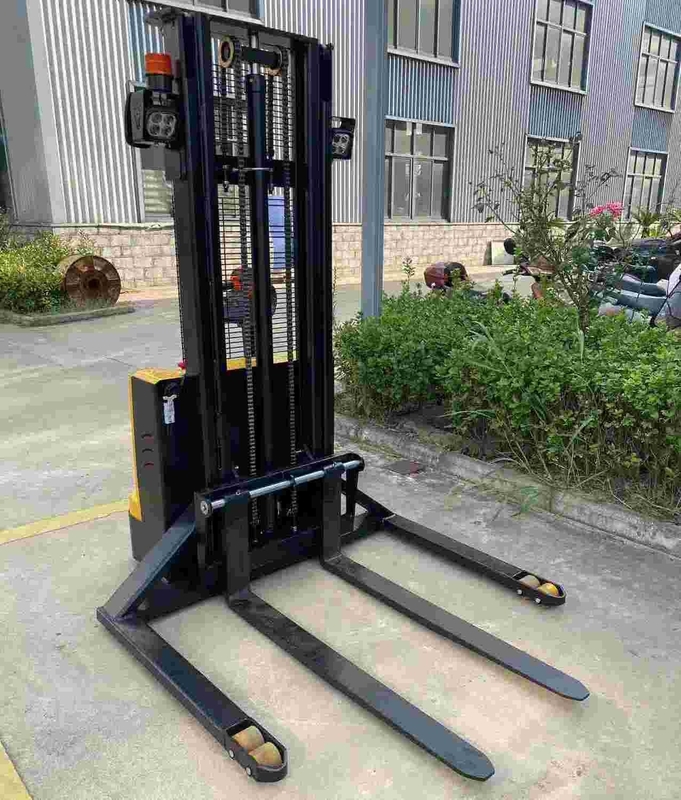

3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 0

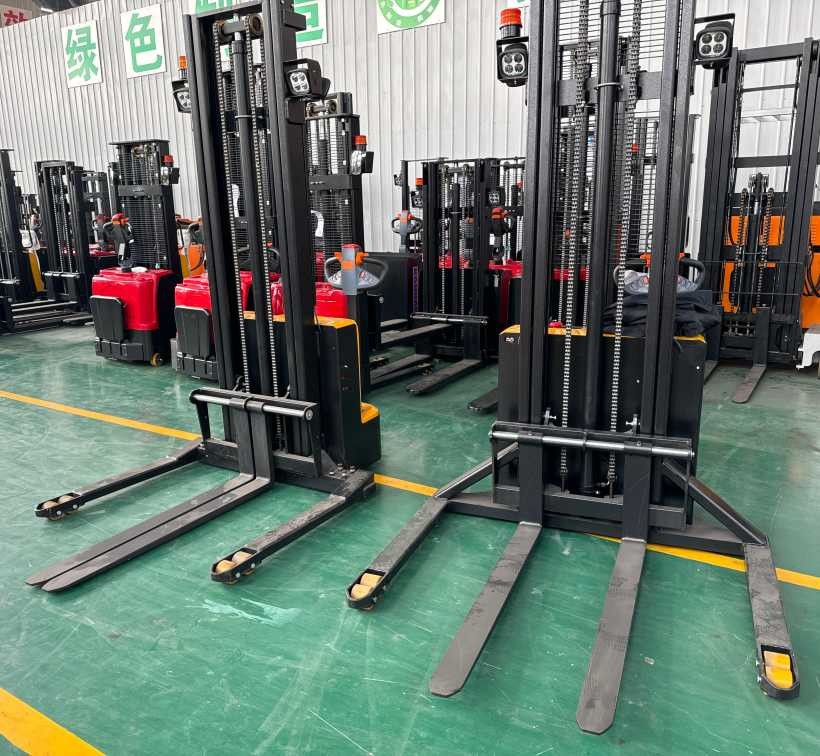

3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 1

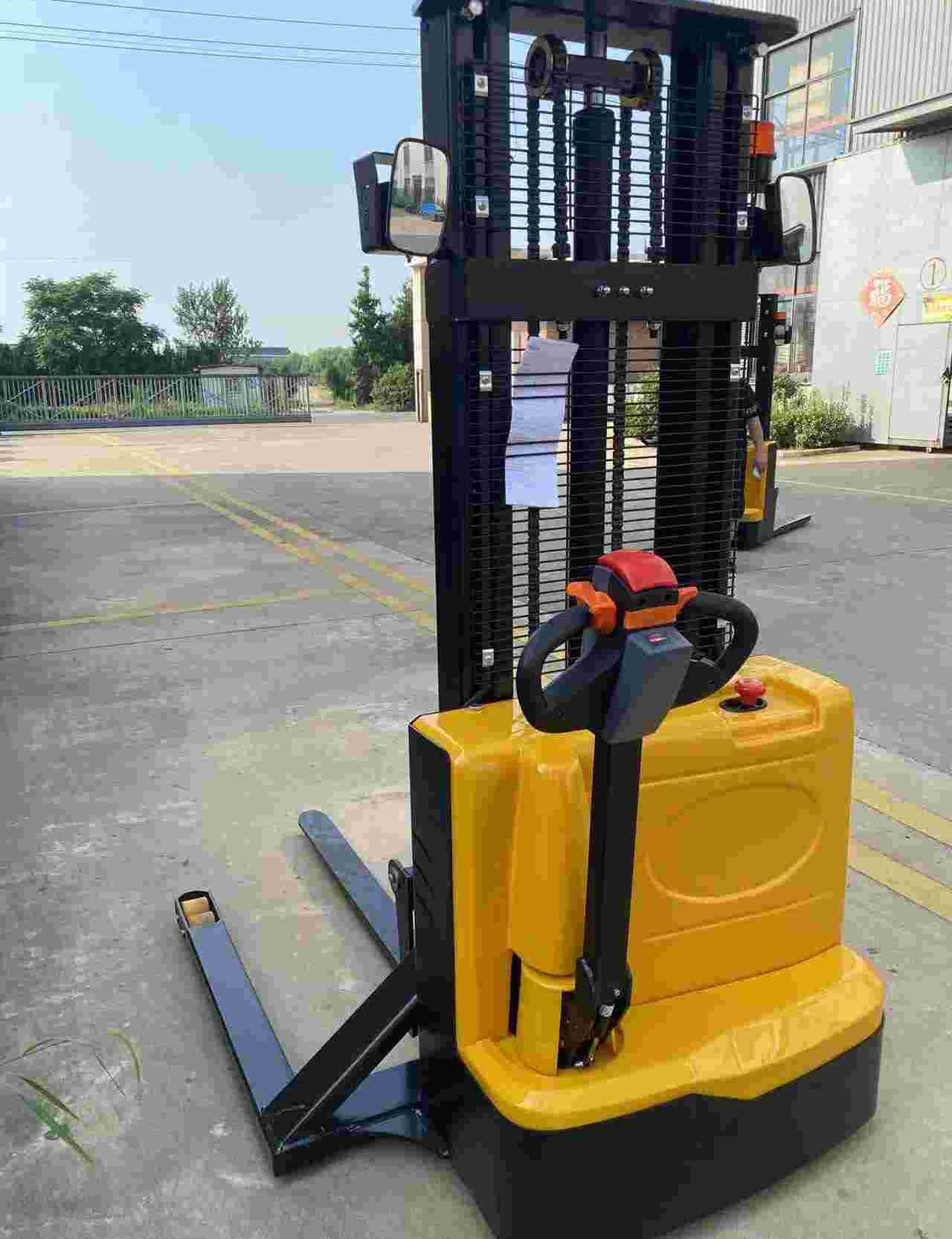

3500mm Full electric walkie stacker with widen fixed leg and forged fork used in narrow spaces 2

Specification
MODEL


CDDW10 CDDW15
Features
Drive system


Battery
Driving mode


Walkie
Load Capacity
Q
KG
1000
Load Center
C
MM
500
Weight
Weight(With battery)

KG
480/495/515/535
Wheels
Material


PU
Size
Lifting Height
H3
MM
1600/2000/2500/3000
Lowest Mast
H1
MM
2080/1580/1830/2080
Max.Height when operating
H4
MM
2080/2730/3230/3730
Min.Height of Fork
H13
MM
≤90
Length
L1
MM
1770
Width
B1
MM
850
Fork Length
L
MM
1070
Wheelbase
Y
MM
1250
Fork Outside Width
B5
MM
680
Fork Inside Width

MM
305
Min.Turning Radius
WA
MM
1390
Performance
Driving Speed
(Empty/Full Load)

MM/S
5.0/5.0
Lifting Speed
(Empty/Full Load)

MM/S
140/135
Descending Speed
(Empty/Full Load)

MM/S
150/155
Max.Gradient
(Empty/Full Load)

°
7/5
Brake


Electromagnetic brake

Driving Motor

KW
DC/0.75
Lifting Motor

KW
DC/2.2
Battery
Capacity

V/Ah
24/80Ah



Main Features

1) Using Curtis controller,which can be serviced by any forklift service company around the world.

2) With its integrated charger it gives you the flexibility you need in a modern, urban supply chain.

3) Maintenance-free batteries,no need to add water.

4) High strength fork


FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.


1) Using Curtis controller,which can be serviced by any forklift service company around the world.

2) With its integrated charger it gives you the flexibility you need in a modern, urban supply chain.

3) Maintenance-free batteries,no need to add water.

4)High strength fork
