Products

1.5ton 3meters Full Electric Walkie Stacker with Widen fixed leg and Forged fork for double-sided pallet

1.5ton 3meters Full Electric Walkie Stacker with Widen fixed leg and Forged fork for double-sided pallet

1.5ton 3meters Full Electric Walkie Stacker with Widen fixed leg and Forged fork for double-sided pallet

1.5ton 3meters Full Electric Walkie Stacker with Widen fixed leg and Forged fork for double-sided pallet

1.5ton 3meters Full Electric Walkie Stacker with Widen fixed leg and Forged fork for double-sided pallet

1.5ton 3meters Full Electric Walkie Stacker with Widen fixed leg and Forged fork for double-sided pallet

1.5ton 3meters Full Electric Walkie Stacker with Widen fixed leg and Forged fork for double-sided pallet

1.5ton 3meters Full Electric Walkie Stacker with Widen fixed leg and Forged fork for double-sided pallet

Basic Information

Place of Origin:	China
Brand Name:	KAD
Certification:	CE
Model Number:	CDDW

Minimum Order Quantity:	1unit
Price:	$1200- $1680/ Unit
Packaging Details:	iron pallet +plastic film
Delivery Time:	7work days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	50units/month

Get Best Price Contact Now

Product Name:	Electric Walkie Stacker	Load Center:	500 Mm
Place Of Origin:	CN;JIA	Load Weight:	1000/1500KG
Load Height:	3000mm Or Customized	Feature:	Easy Operation Safety Convenience
Highlight:	1.5ton Electric Pallet Stacker , 3meters Electric Pallet Stacker , 1.5ton Electric Walkie Stacker

Product Application

1.5ton 3meters Full Electric Walkie Stacker with Widen fixed leg and Forged fork for double-sided pallet

The Full Electric Walkie Stacker with wide fixed legs and forged forks is particularly suitable for handling double-sided pallets due to its enhanced stability and strength. The wide legs provide a solid base, minimizing the risk of tipping while transporting heavy loads. Additionally, the forged forks are durable and capable of supporting the weight of double-sided pallets efficiently. The electric design allows for smooth maneuverability in tight spaces, making it ideal for various operational environments. Overall, this combination of features ensures safe, efficient, and versatile handling of double-sided pallets in warehouses and distribution centers.

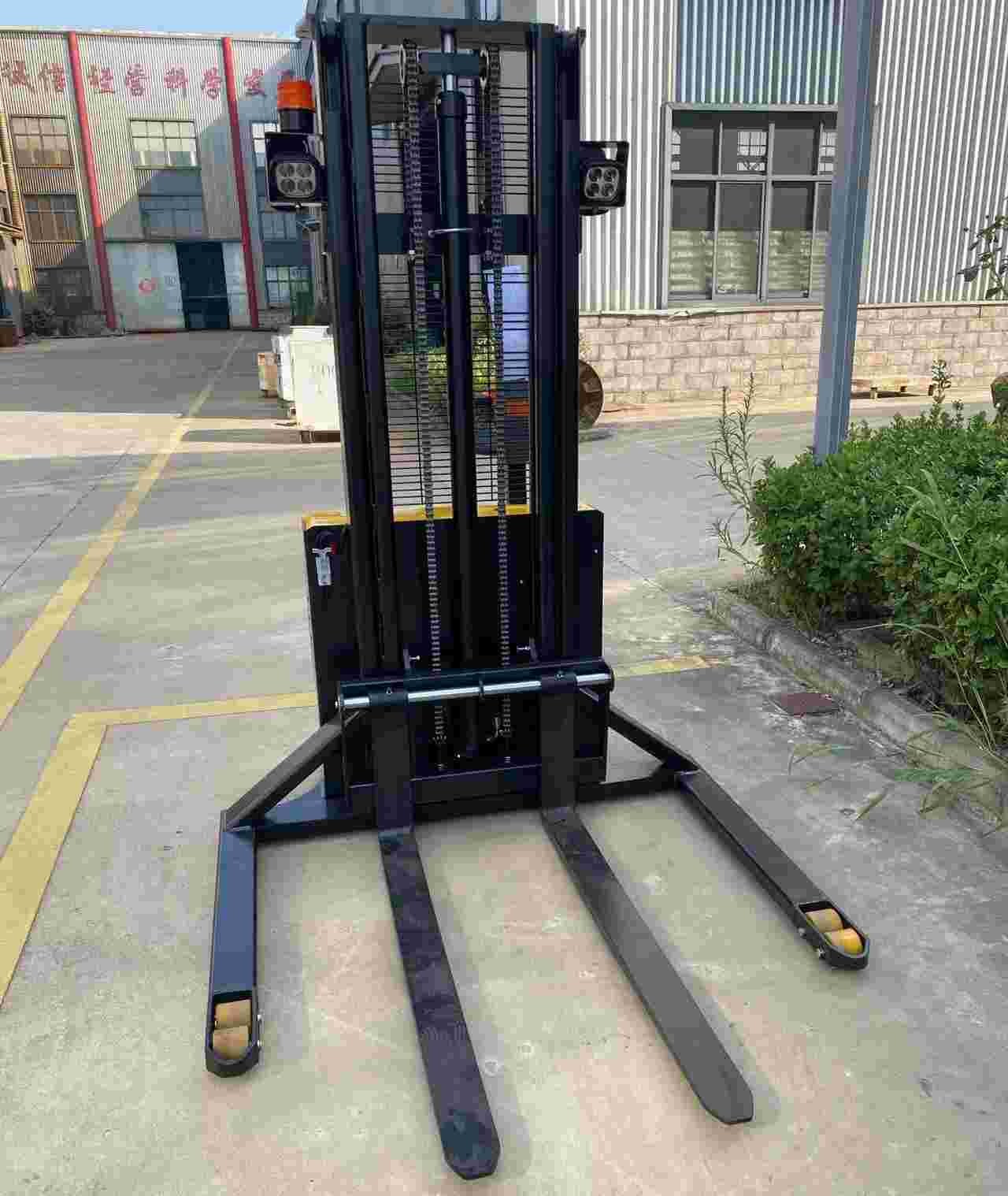

1.5ton 3meters Full Electric Walkie Stacker with Widen fixed leg and Forged fork for double-sided pallet 0

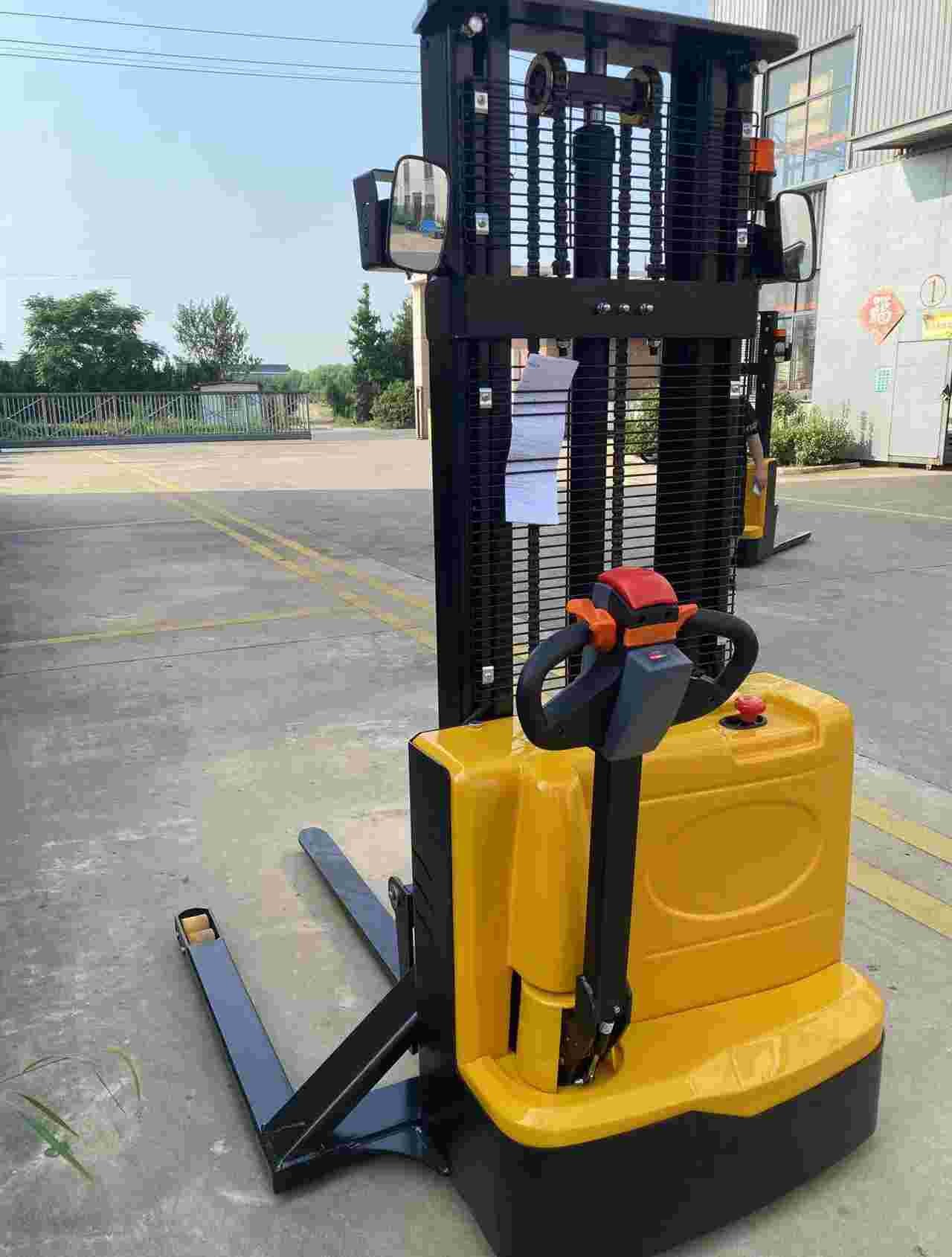

1.5ton 3meters Full Electric Walkie Stacker with Widen fixed leg and Forged fork for double-sided pallet 1

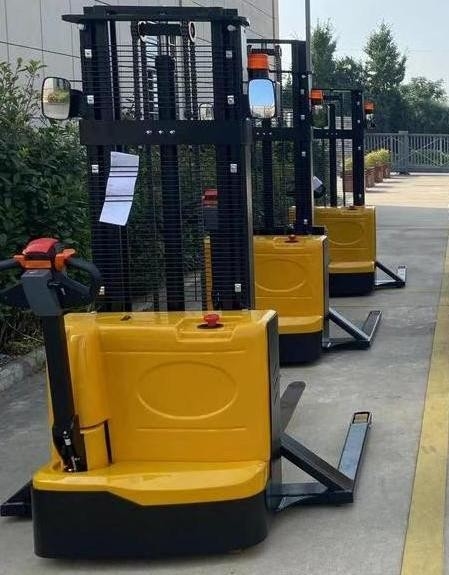

1.5ton 3meters Full Electric Walkie Stacker with Widen fixed leg and Forged fork for double-sided pallet 2

Specification

MODEL				CDDW10 CDDW15
Features	Drive system			Battery
	Driving mode			Walkie
	Load Capacity	Q	KG	1000
	Load Center	C	MM	500
Weight	Weight(With battery)		KG	480/495/515/535
Wheels	Material			PU
Size	Lifting Height	H3	MM	1600/2000/2500/3000
	Lowest Mast	H1	MM	2080/1580/1830/2080
	Max.Height when operating	H4	MM	2080/2730/3230/3730
	Min.Height of Fork	H13	MM	≤90
	Length	L1	MM	1770
	Width	B1	MM	850
	Fork Length	L	MM	1070
	Wheelbase	Y	MM	1250
	Fork Outside Width	B5	MM	680
	Fork Inside Width		MM	305
	Min.Turning Radius	WA	MM	1390
Performance	Driving Speed (Empty/Full Load)		MM/S	5.0/5.0
	Lifting Speed (Empty/Full Load)		MM/S	140/135
	Descending Speed (Empty/Full Load)		MM/S	150/155
	Max.Gradient (Empty/Full Load)		°	7/5
	Brake			Electromagnetic brake
	Driving Motor		KW	DC/0.75
	Lifting Motor		KW	DC/2.2
Battery	Capacity		V/Ah	24/80Ah

Main Features

1) Using Curtis controller,which can be serviced by any forklift service company around the world.

2) With its integrated charger it gives you the flexibility you need in a modern, urban supply chain.

3) Maintenance-free batteries,no need to add water.

4) High strength fork

FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?

1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

1) Using Curtis controller,which can be serviced by any forklift service company around the world.

2) With its integrated charger it gives you the flexibility you need in a modern, urban supply chain.

3) Maintenance-free batteries,no need to add water.

4)High strength fork
