Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | PRT0516 |
Minimum Order Quantity: | 1unit |
Price: | $3900-$4600 /unit |
Packaging Details: | Wooden pallet+plastic film |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Product Name: | Semi Electric Pneumatic Roll Turner Stacker | Load Weight: | 500kg |
---|---|---|---|
Lifting Height: | 1600mm | Weight: | 45kg |
Condition: | New | Warranty Of Core Components: | 1 Year |
Highlight: | 12V/120Ah Pneumatic Roll turner Stacker,DC motor Pneumatic Roll turner Stacker,Small Roll Pneumatic Roll turner Stacker |

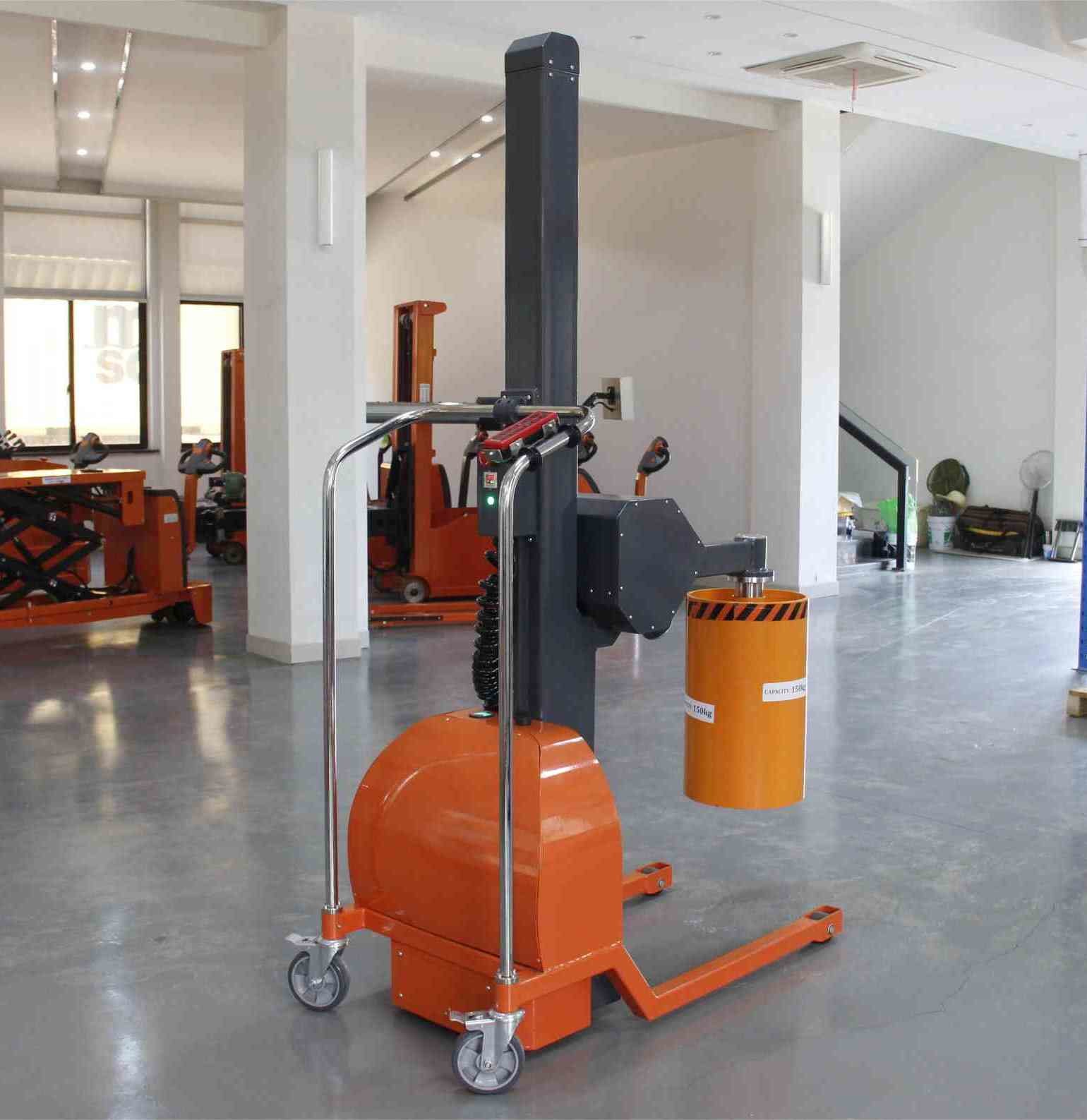

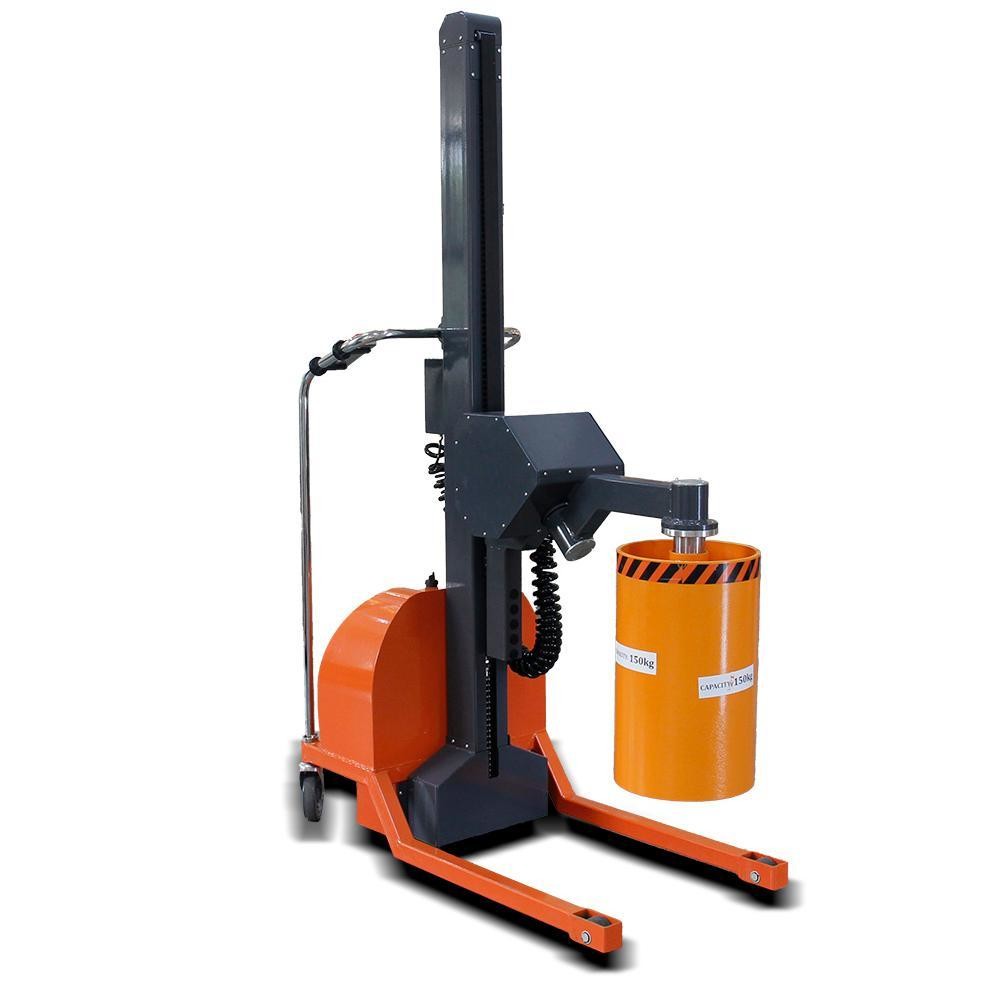

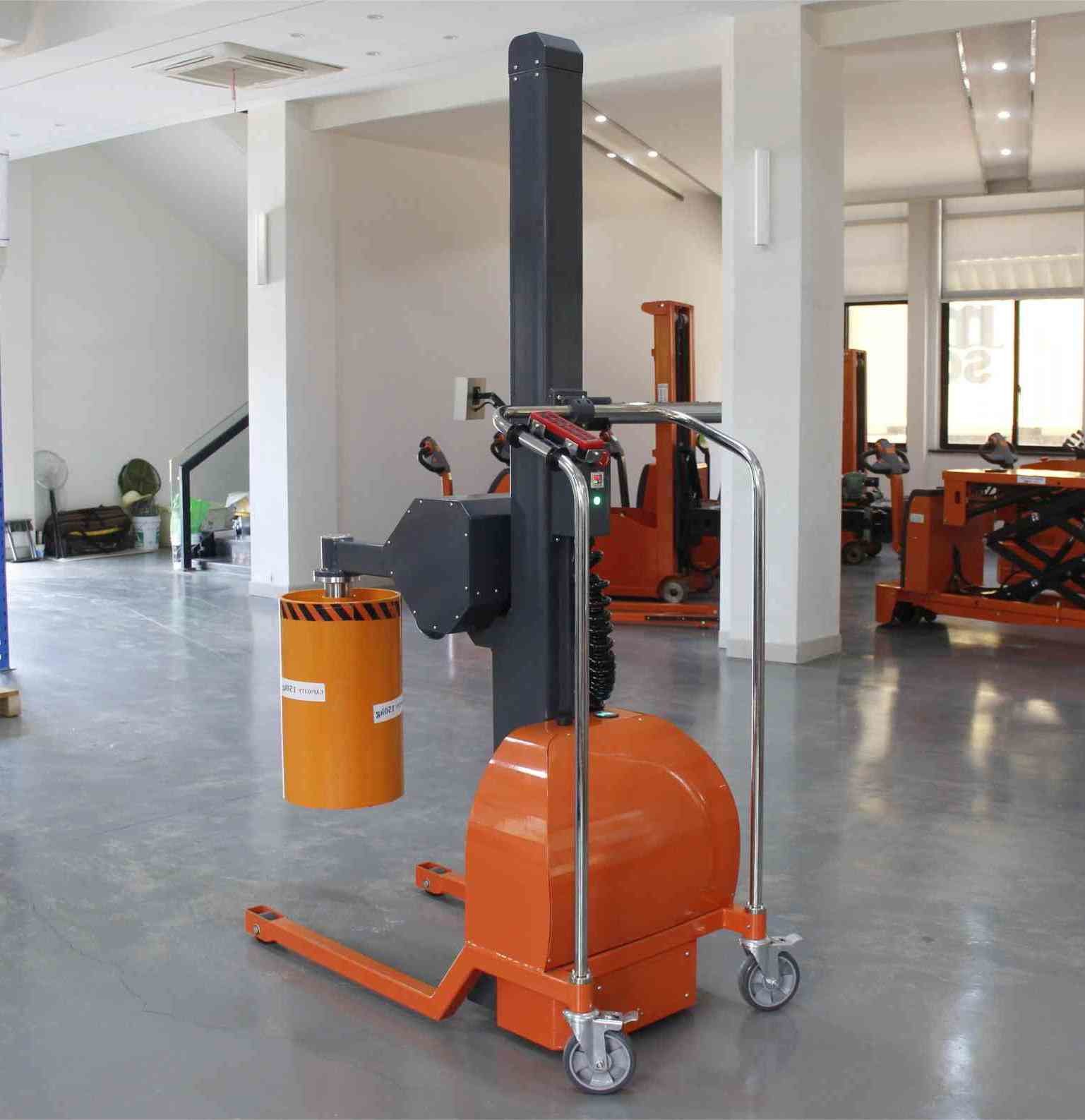

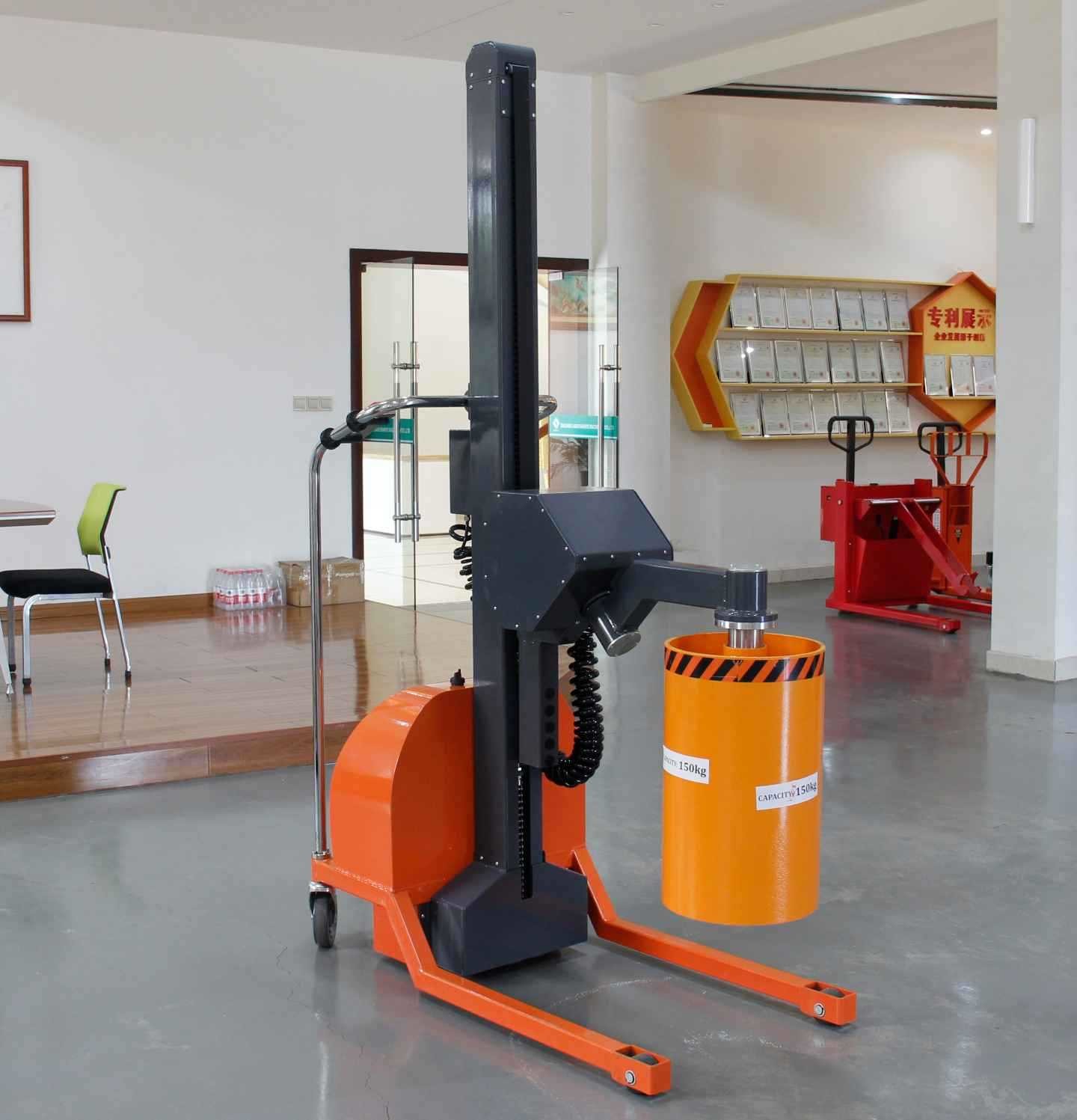

DC MOTOR Semi Electric Pneumatic Roll turner Stacker with 12V/120Ah battery for small roll lifting
The Semi Electric Pneumatic Roll Turner offers unique benefits that enhance operational efficiency. Its pneumatic mechanism allows for smooth and controlled rotation of heavy rolls, reducing the physical strain on operators.This model combines semi-electric features, providing the flexibility to use manual or powered assistance as needed, adapting to various environments. It minimizes the risk of damage during transport. Additionally, its compact design allows for easy maneuverability in tight spaces, making it suitable for both warehouses and production areas. This versatility ultimately improves workflow and productivity.
power source
|
|
Battery
|
rated load
|
kg
|
500
|
load center
|
mm
|
500
|
operation way
|
|
Standing operation,electric lifting,electric gripper,electric rotating,manual moving
|
turning radius
|
mm
|
1050
|
aisle width
|
mm
|
1900
|
length
|
mm
|
1500
|
width
|
mm
|
760
|
height
|
mm
|
2100
|
mast
|
|
1-stage mast
|
adjustable extent of turning
|
mm
|
200~1250
|
max height of forks
|
mm
|
1500
|
min height of forks
|
mm
|
200
|
rotation angle
|
°
|
90°(left and right)
|
running speed(load/unload)
|
km/h
|
manual
|
hoisting speed(load/unload)
|
mm/s
|
110/160
|
descent speed(load/unload)
|
mm/s
|
150/130
|
climbing capability
|
%
|
3,5
|
braking mode
|
|
Wheel brake
|
tyres,material
|
|
Nylon
|
load wheel dimensions
|
mm
|
85*80,2pcs
|
steering wheel dimensions
|
mm
|
180*50,2pcs
|
hydraulic motor
|
kw
|
12v/2.2kw
|
battery
|
v/ah
|
12/100
|
charger
|
v/a
|
12/15,
|
weight
|
kg
|
450
|
Mandreal diameter:
|
|
3''/6''/customized
|
