Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | CDDW |
Minimum Order Quantity: | 1unit |
Price: | To be negotiated |
Packaging Details: | iron pallet +plastic film |
Delivery Time: | 7work days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Product Name: | Electric Walkie Stacker | Load Capacity: | 1200/1600 |
---|---|---|---|
Lift Height: | 1600/200012500/3000/4000/4500 | Length: | 1770 |
Wdith: | 850 | Battery Capacity: | 2*7012*80 |
Battery Voltage: | DC24V | Power: | 0.75 |
Highlight: | 3meters Electric Pallet Stacker,1.5ton Electric Pallet Stacker,4meters Electric Pallet Stacker |

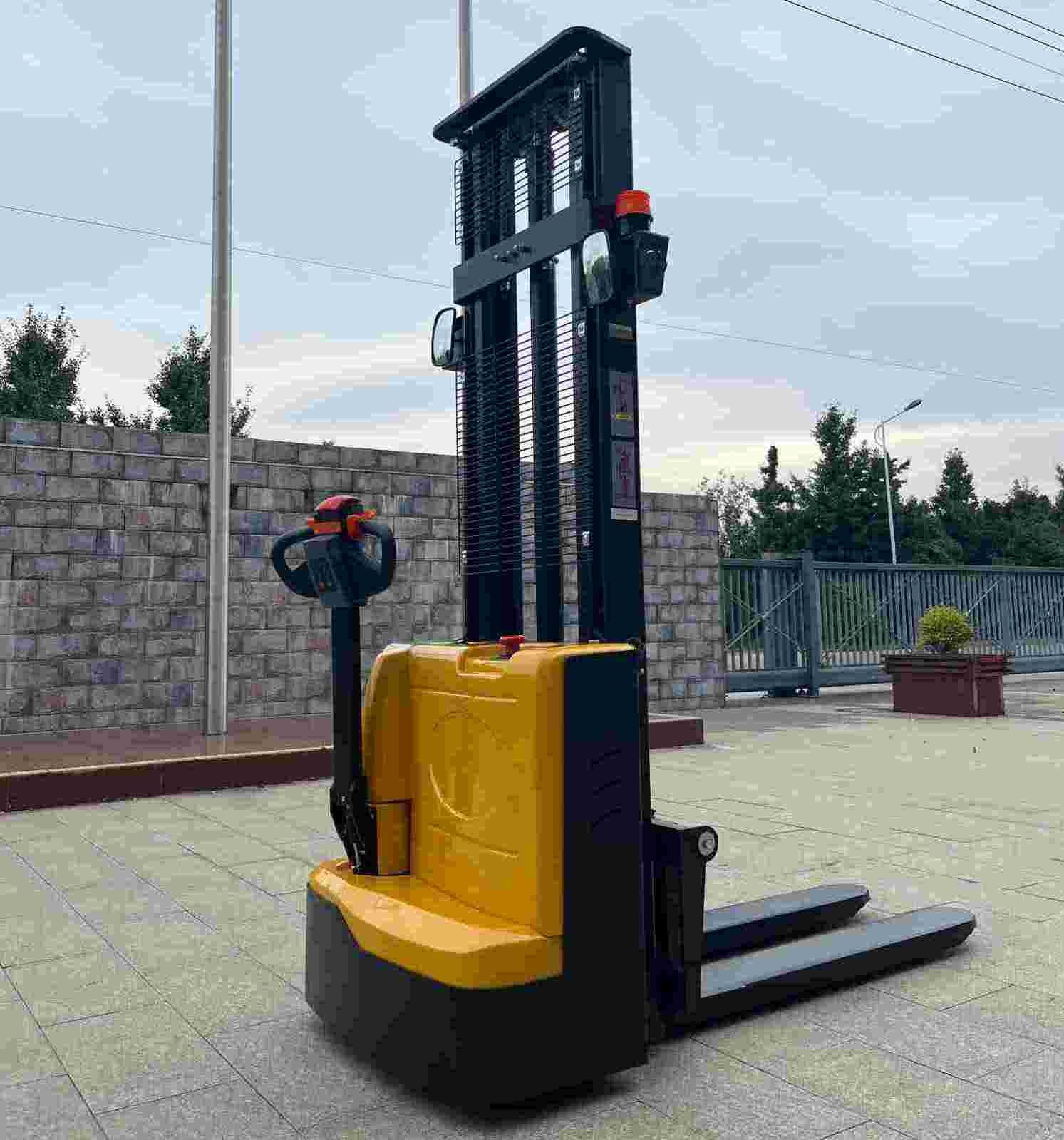

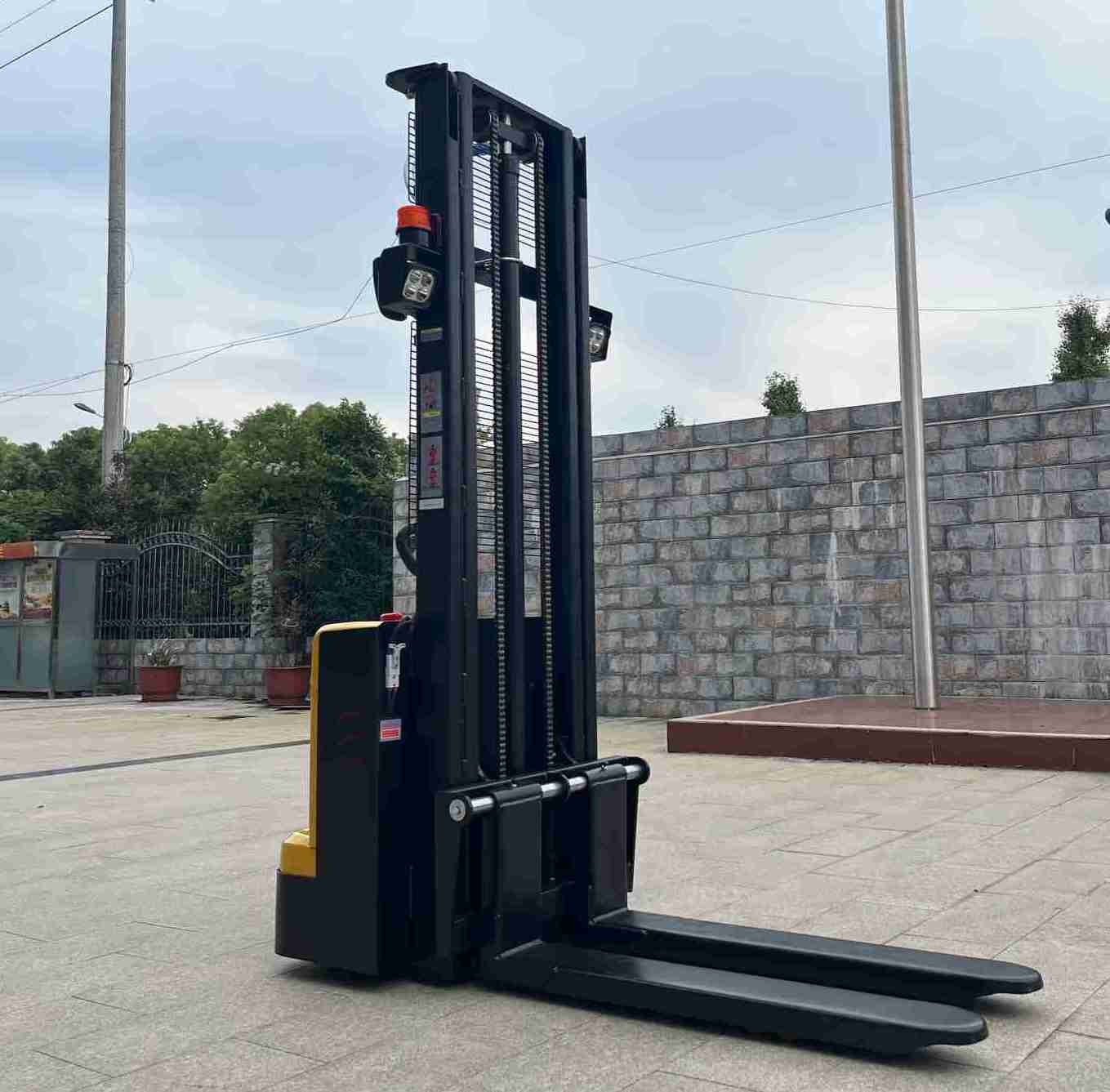

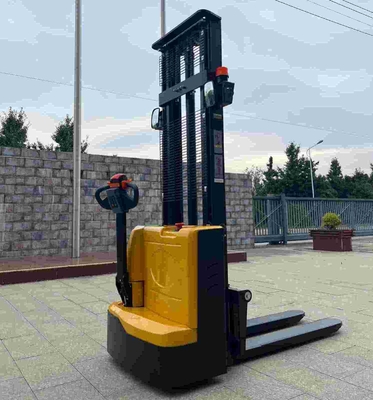

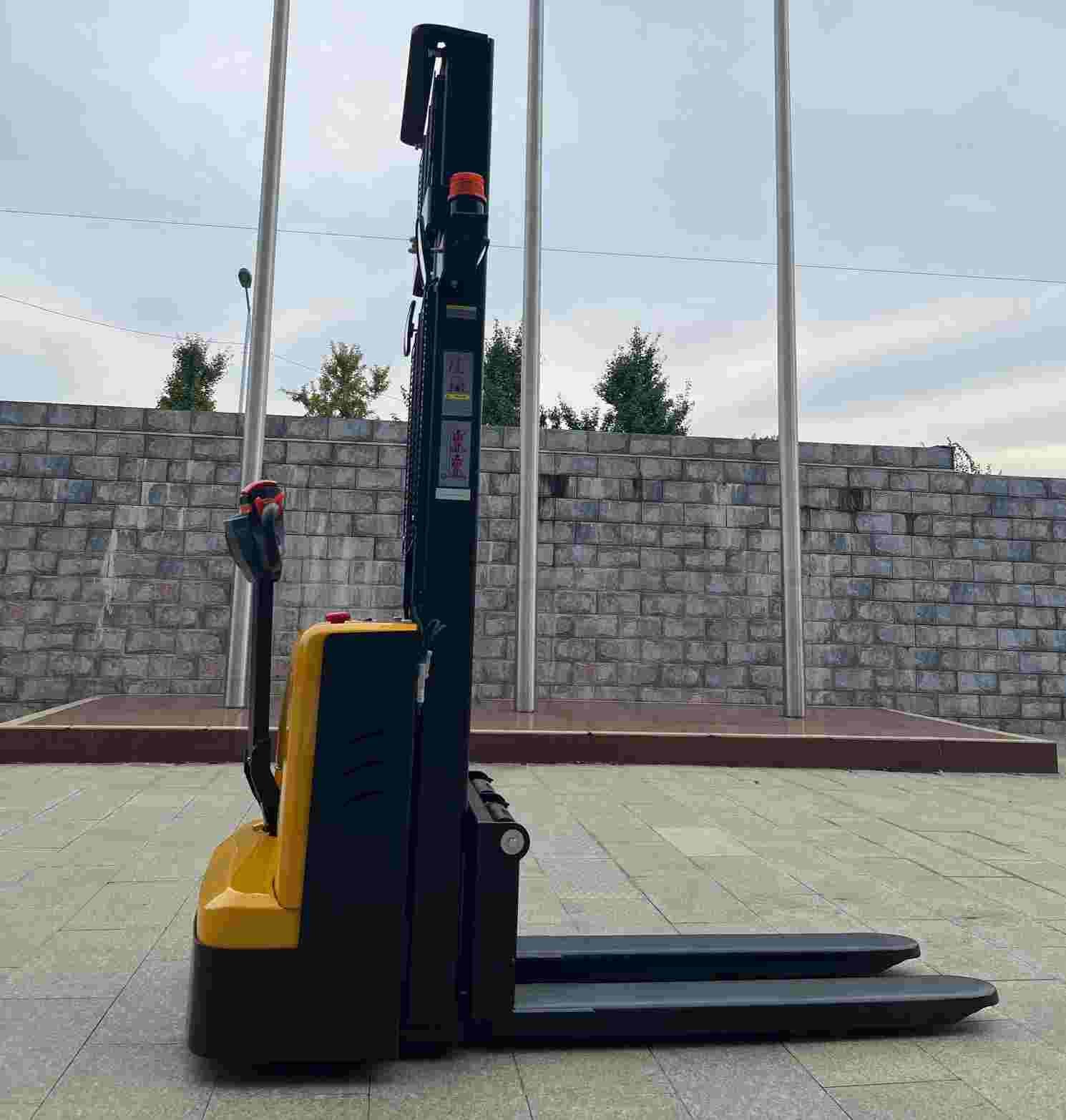

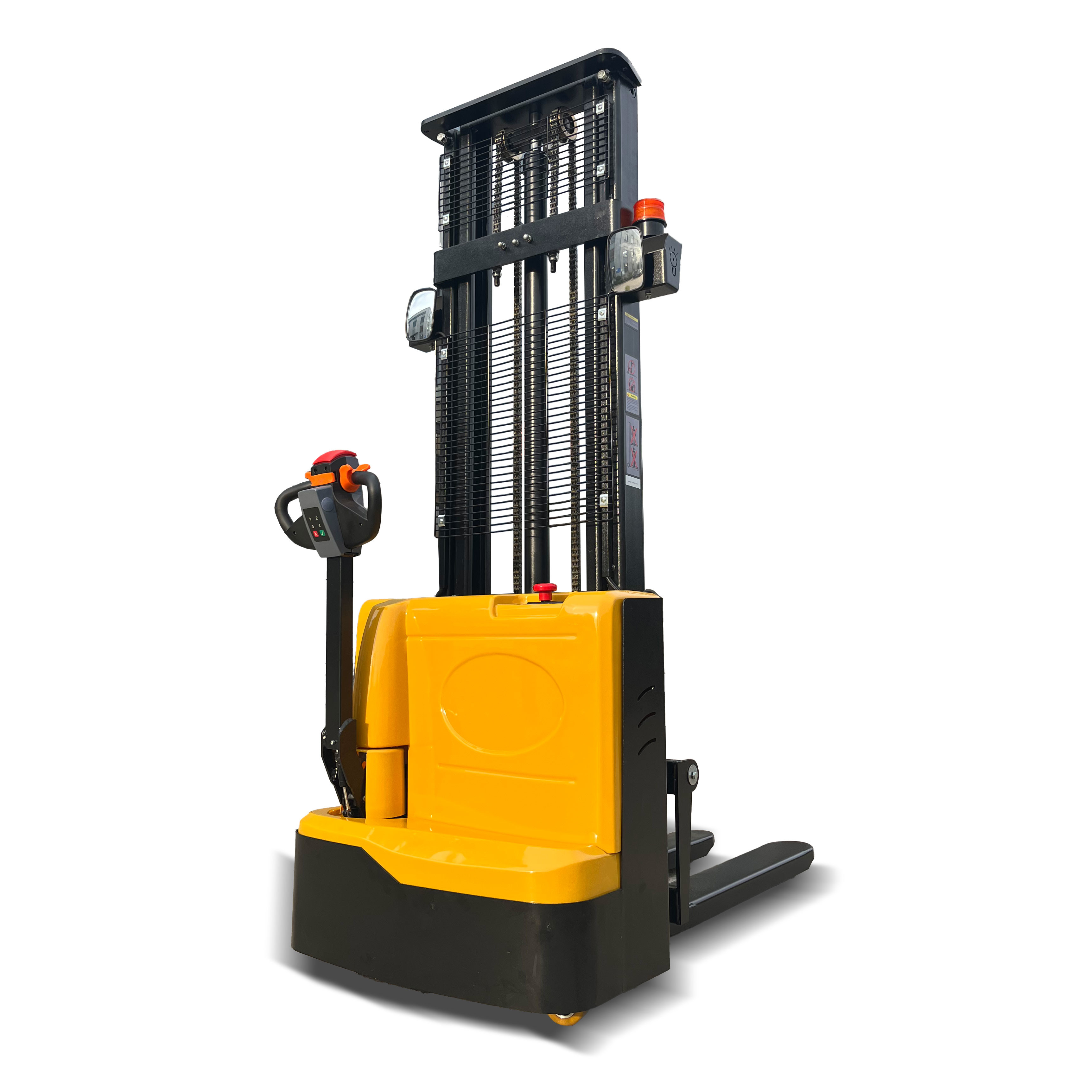

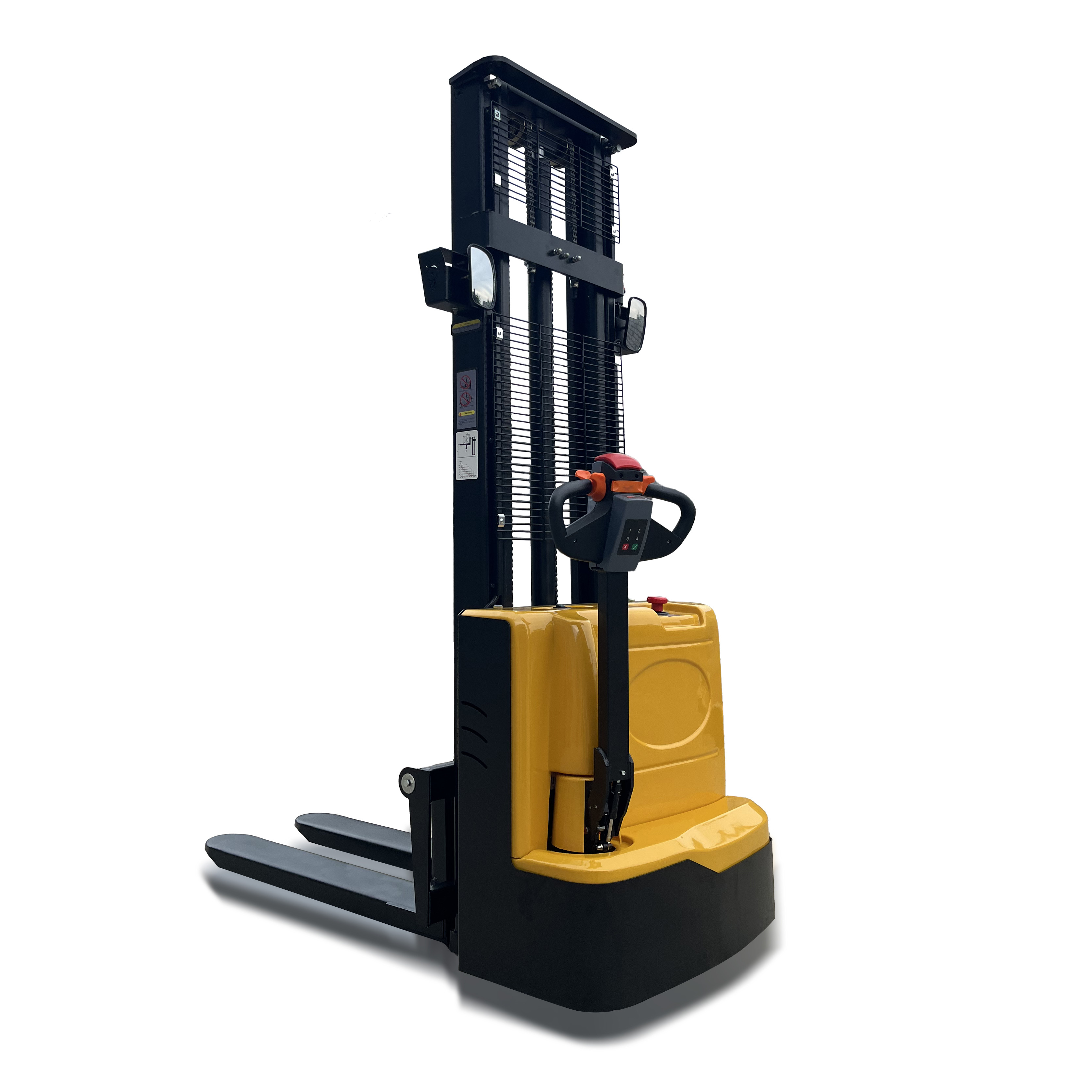

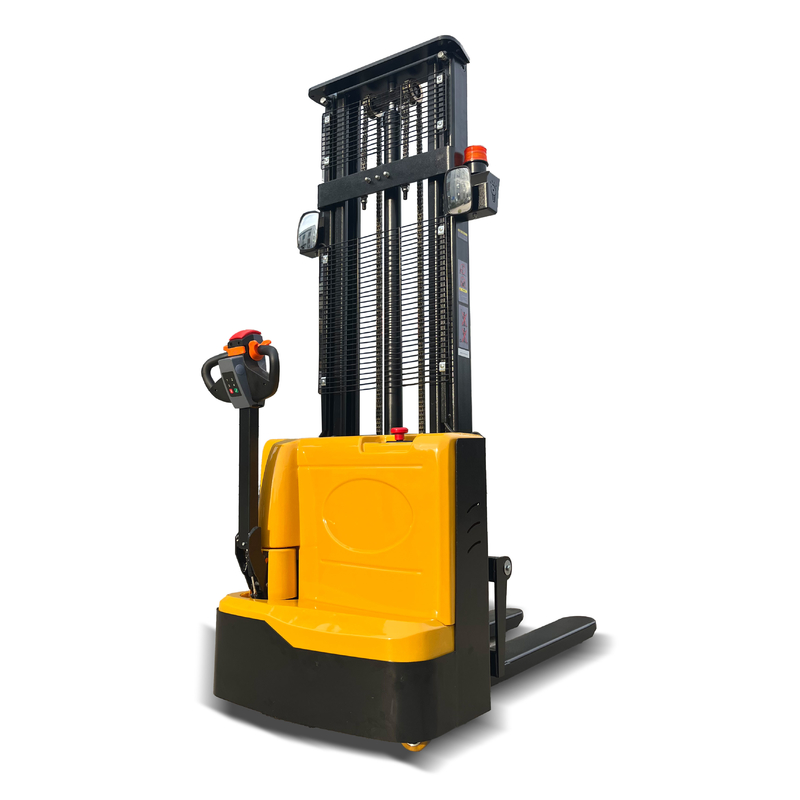

1.5ton 1ton 3meters 4meters 4.5meters Electric Pallet Stacker Full Electric Lift
Product Description
Electric pedestrian stacker cranes are transforming material handling in compact spaces where agility and adaptability are key. These innovative stacker cranes are engineered to enhance operational efficiency and ease of use, offering distinct benefits that set them apart in the realm of warehouse management and logistics.
Distinctive Features:
Specialized Applications:
Operational Advantages:
Ideal Use Cases:
MODEL
|
|
|
CDDW12 CDDW16
|
|
Features
|
Drive system
|
|
|
Battery
|
Driving mode
|
|
|
Walkie
|
|
Load Capacity
|
Q
|
KG
|
1200/1600
|
|
Load Center
|
|
MM
|
500
|
|
Weight
|
Weight(With battery)
|
CDDW12
|
KG
|
470/485/505/520
|
CDDW16
|
495/510/532/553
|
|||
Wheels
|
Material
|
|
|
PU
|
Size
|
Lifting Height
|
H3
|
MM
|
1600/2000/2500/3000
|
Lowest Mast
|
H1
|
MM
|
2080/1580/1830/2080
|
|
Max.Height when operating
|
H4
|
MM
|
2080/2730/3230/3730
|
|
Min.Height of Fork
|
H13
|
MM
|
≤90
|
|
Length
|
L
|
MM
|
1770
|
|
Width
|
B
|
MM
|
850
|
|
Fork Length
|
L1
|
MM
|
1070
|
|
Wheelbase
|
Y
|
MM
|
1250
|
|
Fork Outside Width
|
B1
|
MM
|
680
|
|
Fork Inside Width
|
B2
|
MM
|
305
|
|
Min.Turning Radius
|
WA
|
MM
|
1390
|
|
parameter
|
Driving Speed(Empty/Full Load)
|
|
MM/S
|
5.0/5.0
|
Lifting Speed(Empty/Full Load)
|
|
MM/S
|
140/135
|
|
Descending Speed(Empty/Full Load)
|
|
MM/S
|
150/155
|
|
Max.Gradient(Empty/Full Load)
|
|
%
|
7/5
|
|
Brake
|
|
|
Electromagnetic
|
|
Motor
|
Driving Motor
|
|
KW
|
DC/0.75
|
Lifting Motor
|
|
KW
|
DC/2.2
|
|
Battery
|
Capacity
|
|
V/Ah
|
24*70/24*80Ah
|
Others
|
Noise level DIN 12053
|
|
DB
|
<70
|
