Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | CDDL |
Minimum Order Quantity: | 1unit |
Price: | $2200/UNIT |
Packaging Details: | iron pallet +plastic film |
Delivery Time: | 7work days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Product Name: | Electric Walkie Stacker | Load Capacity: | 1200/1600 |
---|---|---|---|
Lift Height: | 1600/200012500/3000 | Length: | 1770 |
Wdith: | 850 | Battery Capacity: | 2*7012*80 |
Highlight: | Small Space Use Electric Pallet Stacker,4.5m Electric Pallet Stacker,1m electric pallet truck 2000kg |

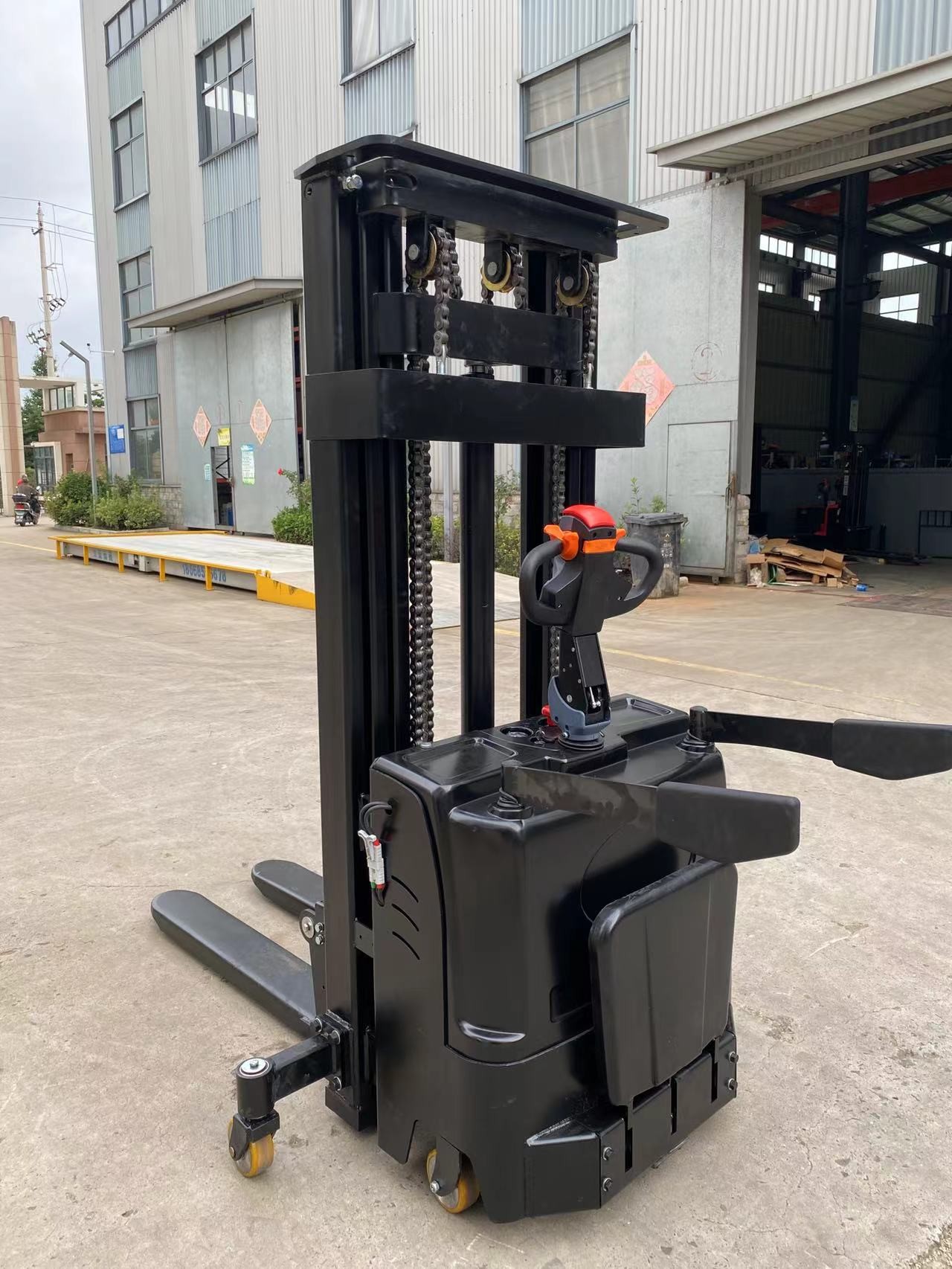

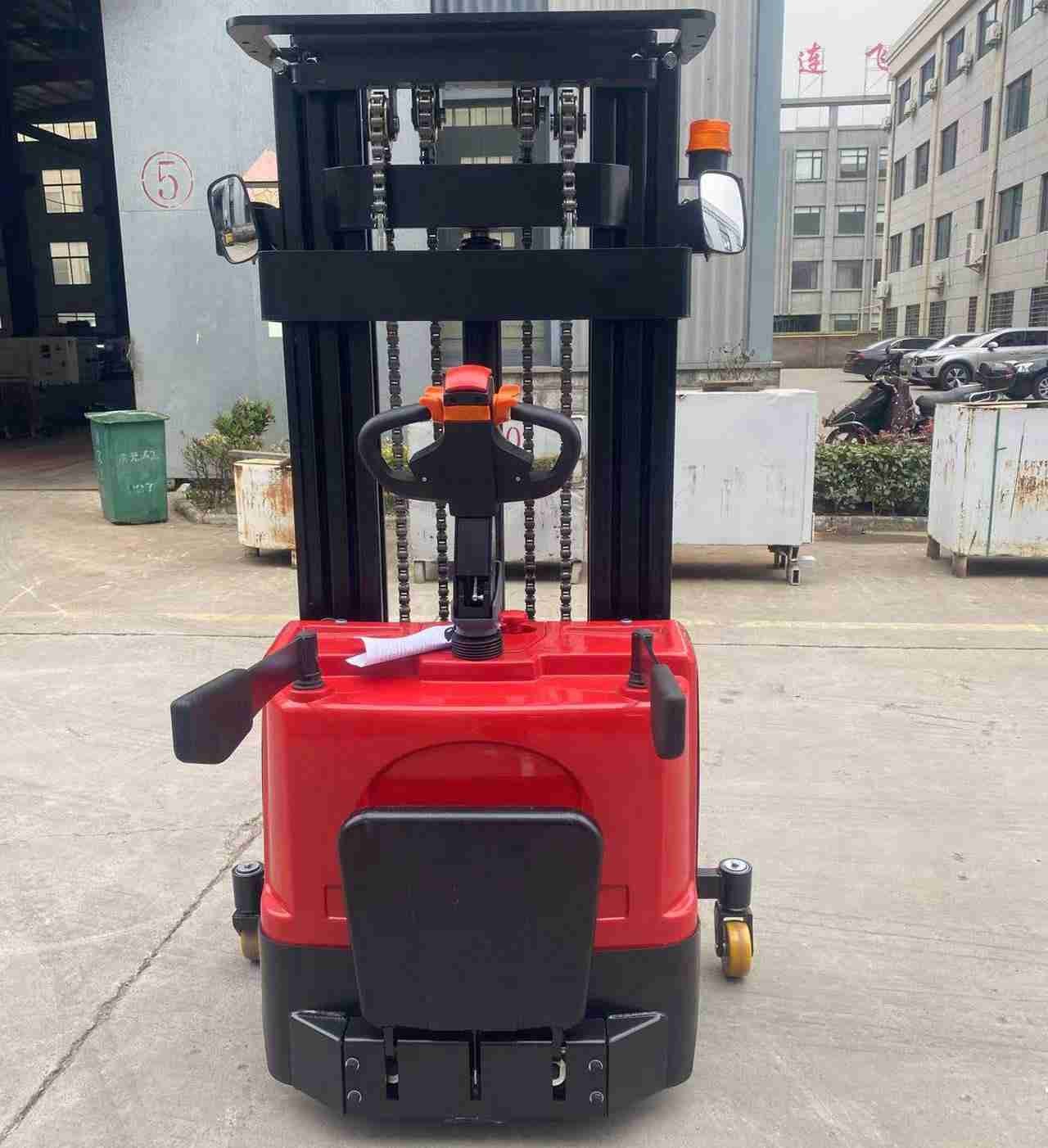

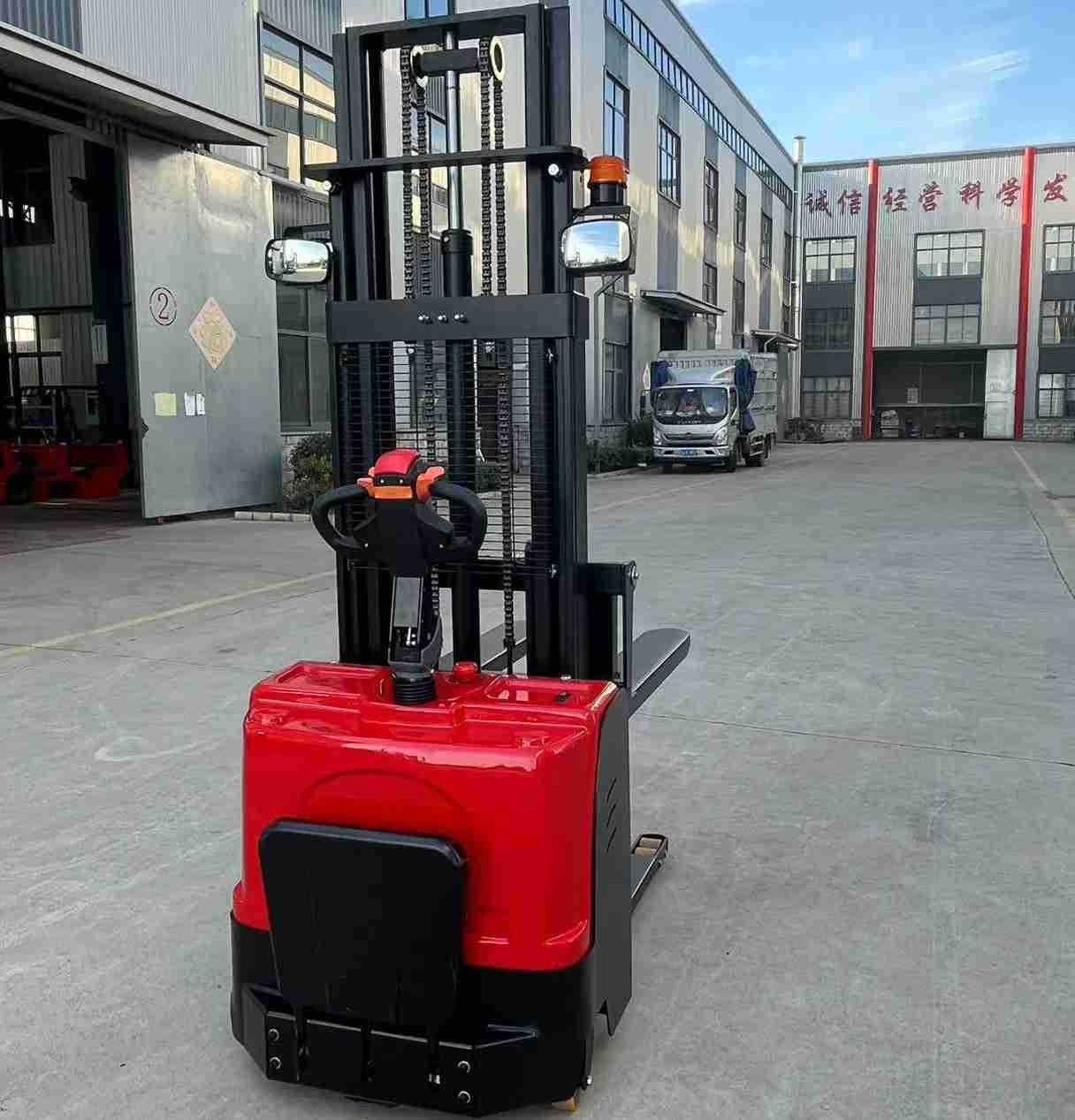

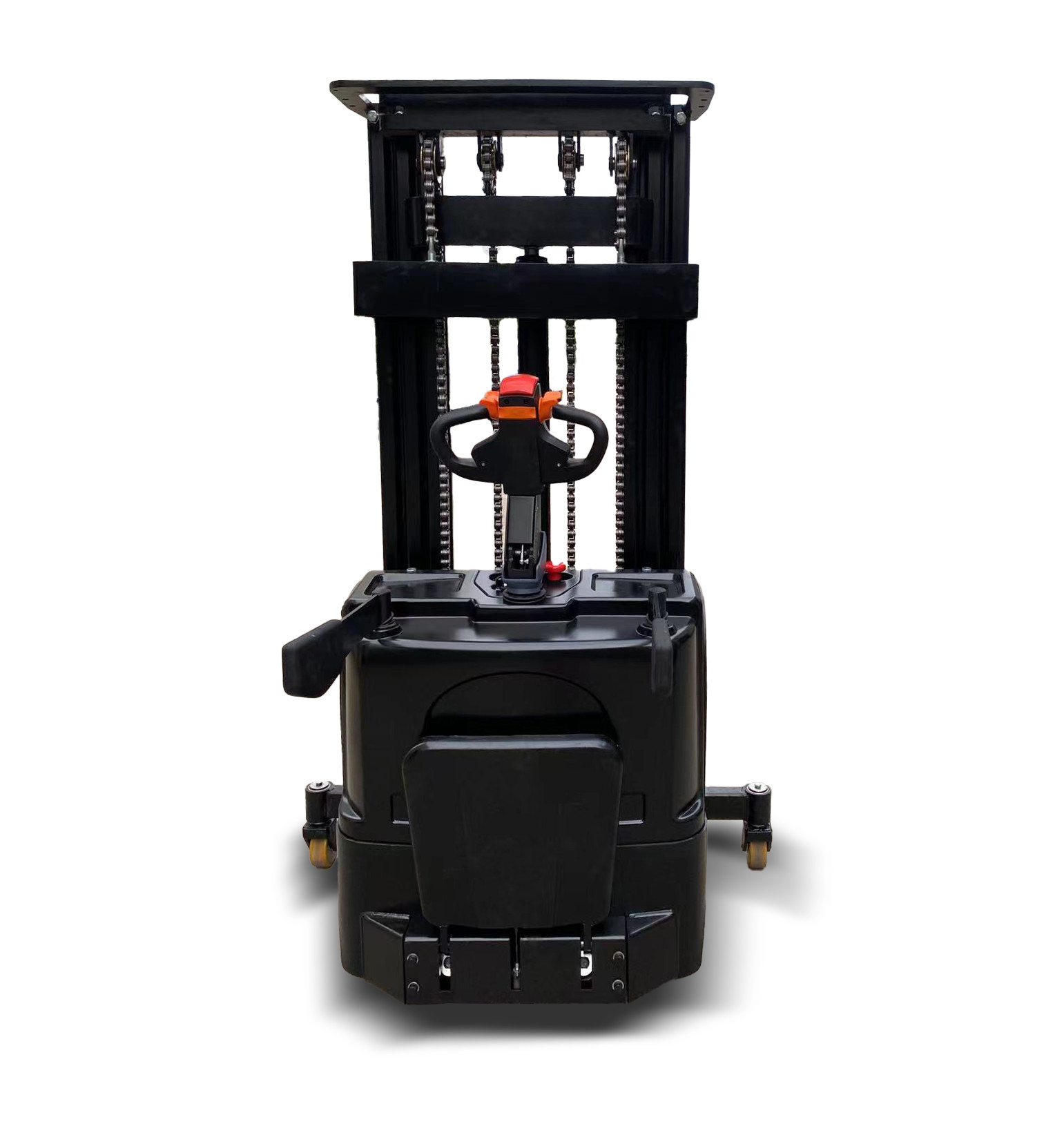

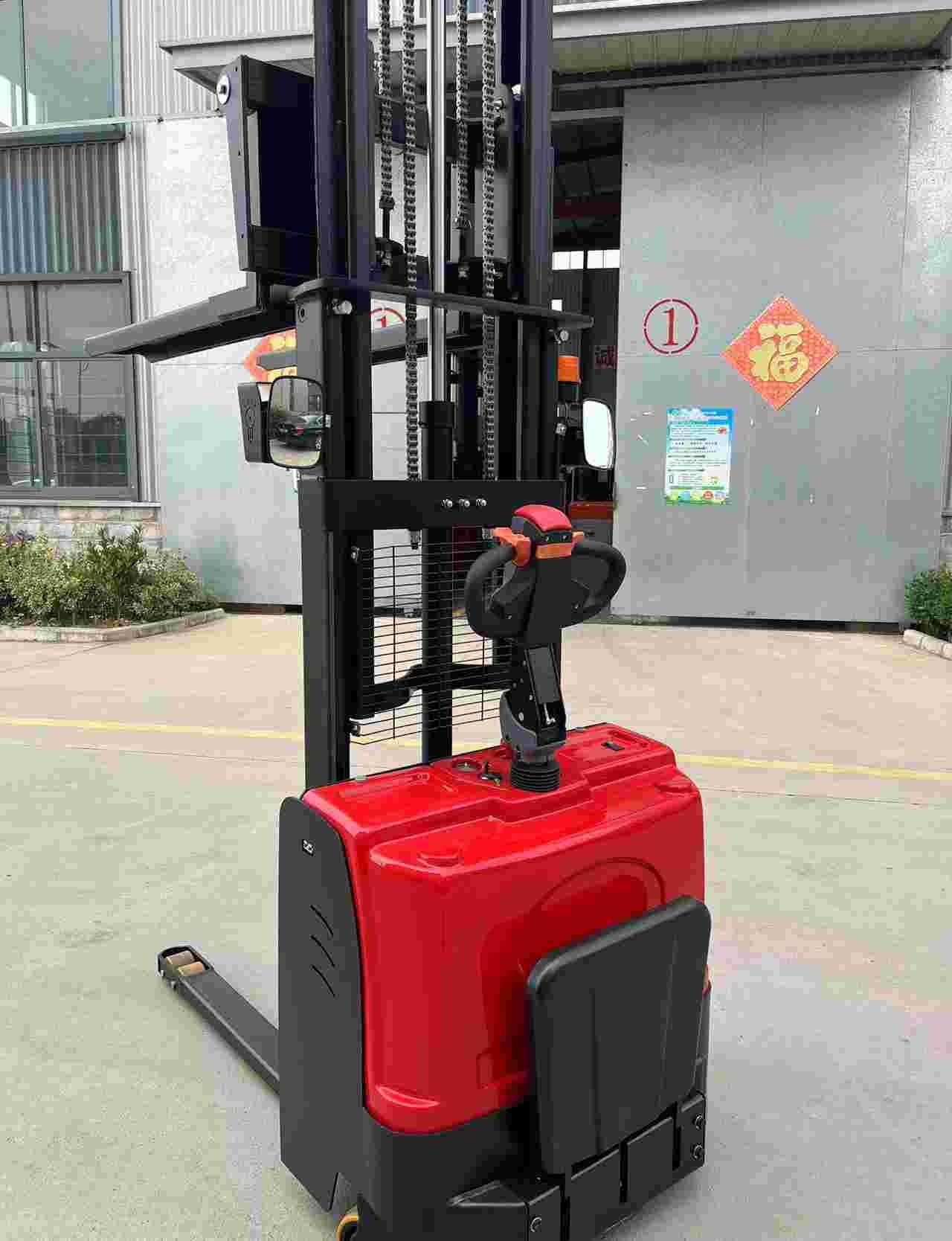

1m 2m 3m 4m 4.5m Electric Stacker Pallet Stacke Small Space Use Fork Lift Forklifts For Sale
Product Description
Electric stackers are widely used in several industries, including:
Warehousing: In warehouses, electric stackers are used to lift and move pallets of goods, stack them on shelves, and transport them to different areas of the facility.
Logistics: In logistics centers, electric stackers play a key role in loading and unloading trucks, as well as transporting goods to storage areas.
Manufacturing: Electric stackers are used in manufacturing plants to move raw materials and finished products between different stages of production.
Retail: In retail environments, electric stackers are used to manage inventory in stockrooms and move goods from storage to the sales floor.
Model
|
|
CDD1030
|
CDD1530
|
Load Capcity
|
kg
|
1000
|
1500
|
Lifting Height
|
mm
|
1600
|
1600
|
Load Center
|
mm
|
500
|
500
|
Fork Size
|
mm
|
1220*100*40
|
1220*100*40
|
Ground Clearance
|
mm
|
130
|
130
|
Pedal Length
|
mm
|
410
|
410
|
Handler Heihgt
|
mm
|
1490
|
1490
|
Outer Distance Between Forks
|
mm
|
685
|
685
|
Inner Distance Between Forks
|
mm
|
345
|
345
|
Tyre type
|
|
Polyurethane
|
Polyurethane
|
Control Way
|
|
Handler
|
Handler
|
Speed Regulation Way
|
|
Stepless Speed Regulation
|
Stepless Speed Regulation
|
The Min. Turning Radius
|
mm
|
1500
|
1500
|
Driving Speed with Full Loads
|
km/h
|
4
|
4
|
Gradient
|
°
|
10
|
10
|
Battery
|
V/Ah
|
24V/180A
|
24V/180A
|
Driving Motor
|
KW
|
1.2
|
1.2
|
Lifting Motor
|
KW
|
2.2
|
2.2
|
Tyre Size
|
mm
|
300/250
|
300/250
|
Overall Size
|
mm
|
2170*1570*2100
|
2170*1570*2100
|
Weight
|
kg
|
900
|
900
|
Reference Working Time
|
h
|
6
|
6
|
Increased height each tonnage
|
mm
|
1600/2000/2500/3000/3500
|
|
Max height
|
2100/1600/1850/2100/2350
|
Lightweight and flexible: Lightweight stacker trucks are usually lightweight and have a compact body design, making it easy for operators to carry and stack in narrow passages and limited spaces.
Easy to operate: Due to its small size and simple structure, it is easy to operate and suitable for operators of different levels.
Low cost: Compared to fully electric or large stacking equipment, lightweight stacking trucks are usually more affordable and suitable for small businesses or users with limited budgets.
Easy maintenance: Lightweight devices have a relatively simple structure and lower maintenance and repair costs.
Environmental protection and energy conservation: Lightweight stacker trucks are often manual or semi electric, with lower energy consumption and reduced demand for electricity.
Multifunctionality: Suitable for various scenarios, not only can it handle goods, but it can also be used for stacking to meet different storage needs.
