Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | CDDL |
Minimum Order Quantity: | 1unit |
Price: | $2200/UNIT |
Packaging Details: | iron pallet +plastic film |
Delivery Time: | 7work days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Product Name: | Electric Walkie Stacker | Load Capacity: | 1200/1600 |
---|---|---|---|
Lift Height: | 1600/200012500/3000 | Length: | 1770 |
Wdith: | 850 | Battery Capacity: | 2*7012*80 |
Highlight: | Light Weight Electric Pallet Stacker,1.5 Ton Electric Pallet Stacker,Full Electric Pallet Stacker |

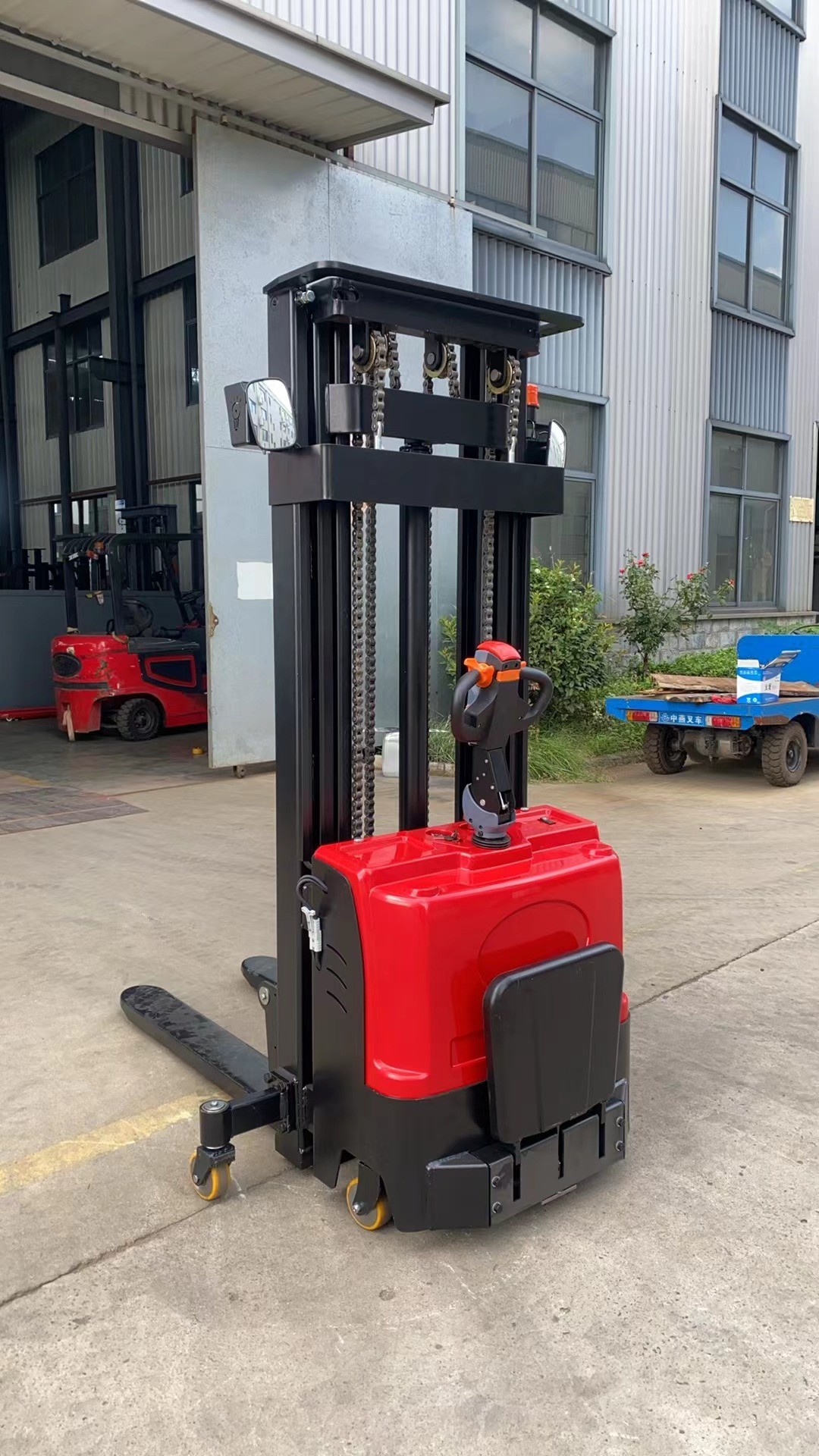

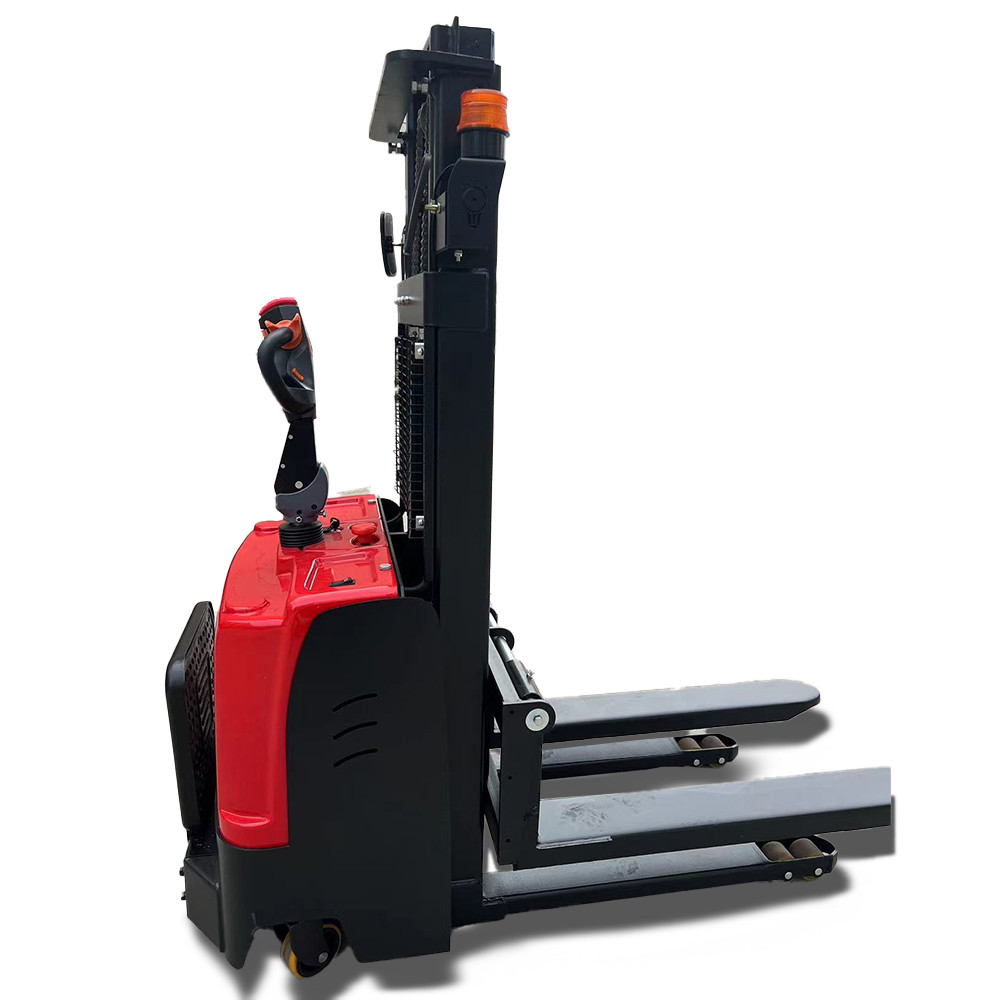

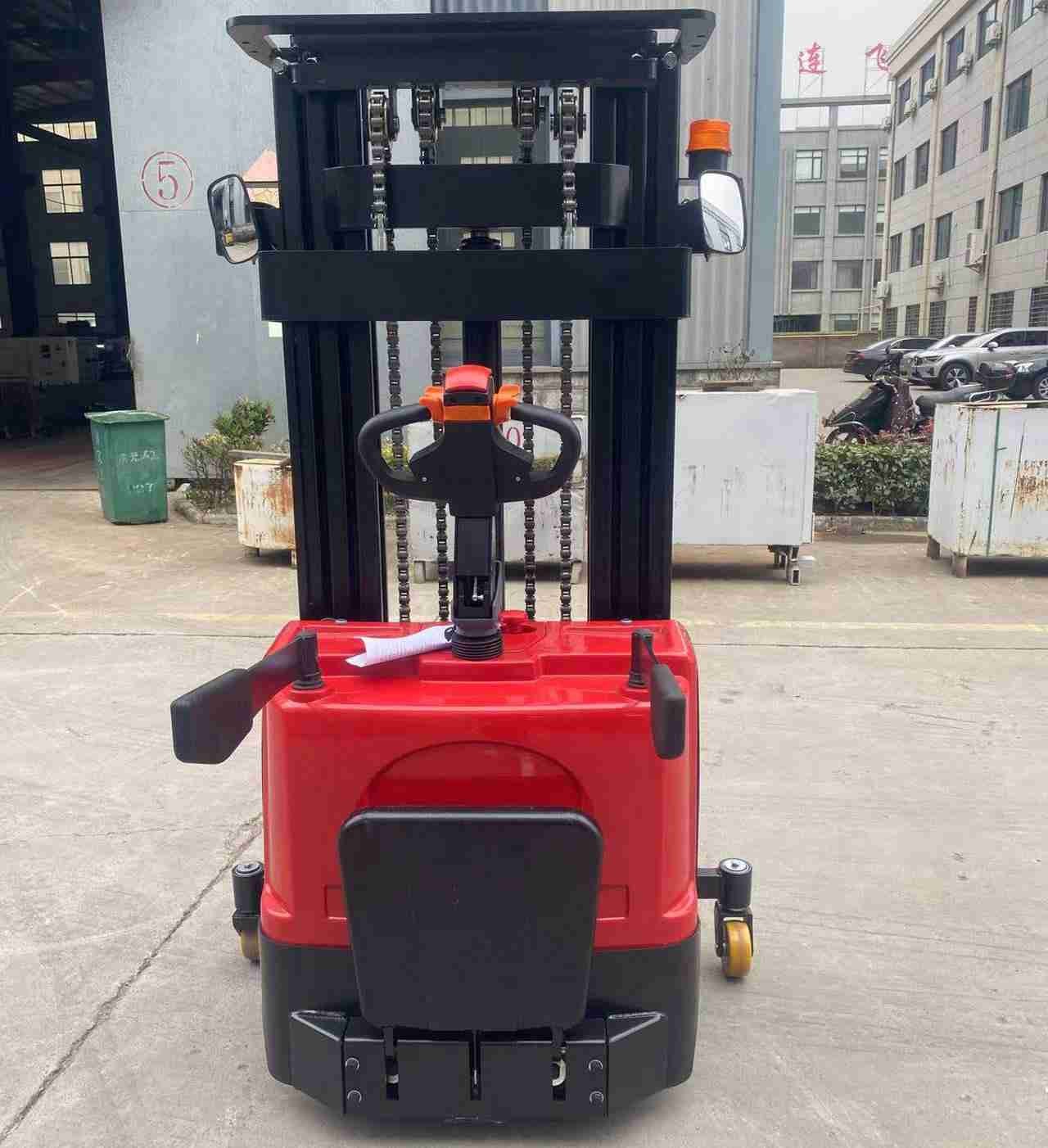

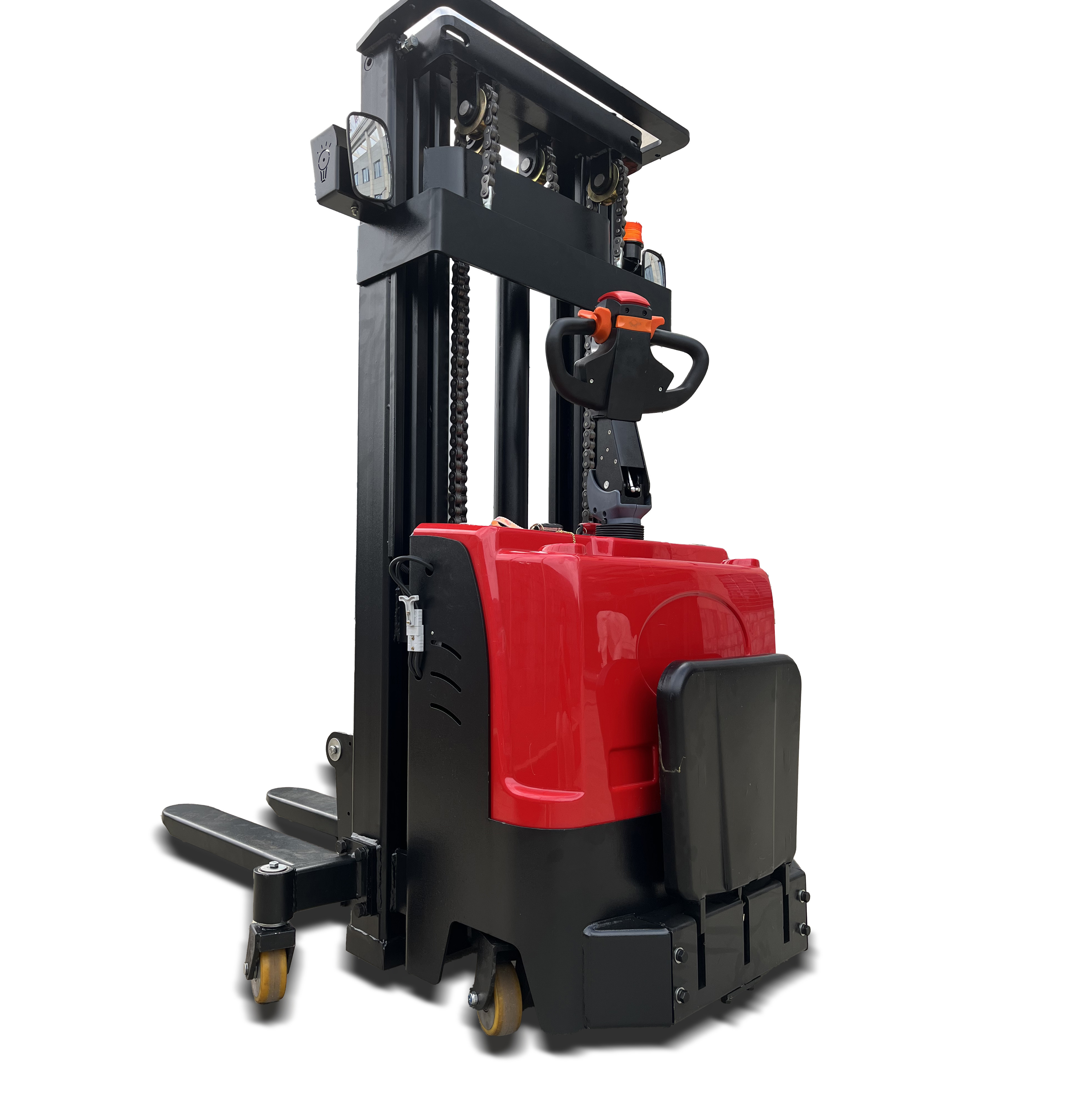

Container Electric Forklift Stacker 1.5 Ton Light Weight Full Electric Pallet Stacker
Product Description
A fully electric straddle leg stacker is an industrial machine designed for cargo handling and stacking, primarily used in the warehousing and logistics sectors. Its "straddle leg" design enables the support legs to extend on both sides of the load, making it ideal for situations where there’s a gap between the pallet and the cargo, enhancing the equipment's stability and adaptability.
Key features include:
This type of stacker is widely used in logistics centers, warehouses, and manufacturing industries, especially in scenarios requiring the lifting, stacking, or transportation of heavy loads.
Model
|
|
CDD1030
|
CDD1530
|
Load Capcity
|
kg
|
1000
|
1500
|
Lifting Height
|
mm
|
1600
|
1600
|
Load Center
|
mm
|
500
|
500
|
Fork Size
|
mm
|
1220*100*40
|
1220*100*40
|
Ground Clearance
|
mm
|
130
|
130
|
Pedal Length
|
mm
|
410
|
410
|
Handler Heihgt
|
mm
|
1490
|
1490
|
Outer Distance Between Forks
|
mm
|
685
|
685
|
Inner Distance Between Forks
|
mm
|
345
|
345
|
Tyre type
|
|
Polyurethane
|
Polyurethane
|
Control Way
|
|
Handler
|
Handler
|
Speed Regulation Way
|
|
Stepless Speed Regulation
|
Stepless Speed Regulation
|
The Min. Turning Radius
|
mm
|
1500
|
1500
|
Driving Speed with Full Loads
|
km/h
|
4
|
4
|
Gradient
|
°
|
10
|
10
|
Battery
|
V/Ah
|
24V/180A
|
24V/180A
|
Driving Motor
|
KW
|
1.2
|
1.2
|
Lifting Motor
|
KW
|
2.2
|
2.2
|
Tyre Size
|
mm
|
300/250
|
300/250
|
Overall Size
|
mm
|
2170*1570*2100
|
2170*1570*2100
|
Weight
|
kg
|
900
|
900
|
Reference Working Time
|
h
|
6
|
6
|
Increased height each tonnage
|
mm
|
1600/2000/2500/3000/3500
|
|
Max height
|
2100/1600/1850/2100/2350
|
Lightweight and flexible: Lightweight stacker trucks are usually lightweight and have a compact body design, making it easy for operators to carry and stack in narrow passages and limited spaces.
Easy to operate: Due to its small size and simple structure, it is easy to operate and suitable for operators of different levels.
Low cost: Compared to fully electric or large stacking equipment, lightweight stacking trucks are usually more affordable and suitable for small businesses or users with limited budgets.
Easy maintenance: Lightweight devices have a relatively simple structure and lower maintenance and repair costs.
Environmental protection and energy conservation: Lightweight stacker trucks are often manual or semi electric, with lower energy consumption and reduced demand for electricity.
Multifunctionality: Suitable for various scenarios, not only can it handle goods, but it can also be used for stacking to meet different storage needs.
