Place of Origin: | China |
---|---|
Brand Name: | Taizhou KAD Electromechanical Co., Ltd. |
Certification: | CE |
Model Number: | PA05-8 |
Minimum Order Quantity: | 1 Unit |
Price: | $400-$5000/unit |
Packaging Details: | Wooden box |
Delivery Time: | 15 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50 Units |
Lift Capacity: | 500kg | Working Height Max: | 4-12m |
---|---|---|---|
Platform Height Max: | 8m | Length: | 1.8M |
Width: | 1M | Height: | 3.6M |
Platform Size: | 1.8*1M | Weight(AC): | 340KG |
Highlight: | Self Propelled Hydraulic Scissor Lift Platform,CE Certificated Hydraulic Scissor Lift Platform,Electric Hydraulic Scissor Lift Platform |

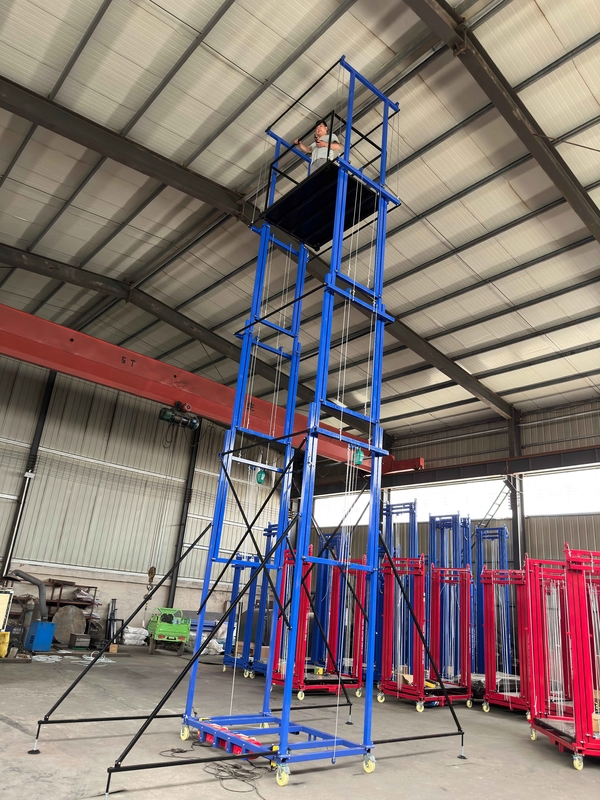

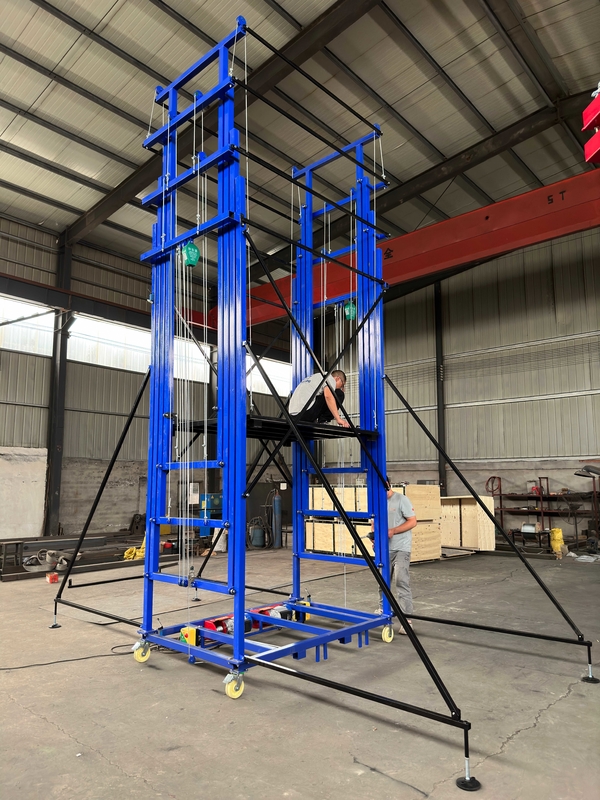

Electric scaffolding is transforming the construction and material handling sectors by incorporating cutting-edge innovations for greater flexibility and productivity. Unlike traditional systems, this new scaffolding solution comes equipped with a lightweight but sturdy aluminum frame, an intelligent pulley system, and an ergonomic wired control panel. One key differentiator is its modular design, which allows for rapid customization to different project needs. Additionally, the scaffolding features a smart stabilization system that automatically adjusts to uneven surfaces, providing enhanced stability without manual adjustments. This minimizes downtime while maintaining worker safety, making it an indispensable asset for modern construction projects.
Liifting height
|
2m
|
3m
|
4m
|
5m
|
6m
|
7m
|
8m
|
electrical machinery
|
PA800/PA1000
|
PA800/PA1000
|
PA800/PA1000
|
PA800/PA1000
|
PA1000
|
PA1000
|
PA1000
|
Load capacity
|
300kg/500kg
|
300kg/500kg
|
300kg/500kg
|
300kg/500kg
|
500kg
|
500kg
|
500kg
|
Wheels (6 inches)
|
2 directional and 2 universal (with brakes)
|
2 directional and 2 universal (with brakes)
|
2 directional and 2 universal (with brakes)
|
2 directional and 2 universal (with brakes)
|
2 directional and 2 universal (with brakes)
|
2 directional and 2 universal (with brakes)
|
2 directional and 2 universal (with brakes)
|
stopper
|
Upper and lower limits implement
|
Upper and lower limits implement
|
Upper and lower limits implement
|
Upper and lower limits implement
|
Upper and lower limits implement
|
Upper and lower limits implement
|
Upper and lower limits implement
|
platform
|
iron plate
|
iron plate
|
iron plate
|
iron plate
|
iron plate
|
iron plate
|
iron plate
|
clear height
|
1.8 meters (two sections) and 1.4 meters (three sections)
|
2.3 meters (two sections) and 1.8 meters (three sections)
|
2.8 meters (two sections) 2.2 meters (three sections)
|
3.3 meters (two sections) and 2.5 meters (three sections)
|
3.8 meters (two sections) 2.9 meters (three sections)
|
3.3 meters (three sections)
|
3.7 meters (three sections)
|
Lift the platform off the ground
|
2m
|
3m
|
4m
|
5m
|
6m
|
7m
|
8m
|
Total height after promotion
|
2.7m
|
3.7m
|
4.7m
|
5.7m
|
6.7m
|
7.7m
|
8.7m
|
Platform size (meters)
|
1.3*0.68
|
1.3*0.68
|
1.4*0.78
|
1.4*0.78
|
1.6*0.98
|
1.6*0.98
|
1.6*0.98
|
overall dimension
|
1.5*0.7
|
1.5*0.7
|
1.6*0.8
|
1.6*0.8
|
1.8*1
|
1.8*1
|
1.8*1
|
wirerope
|
0.6CM
|
0.6CM
|
0.6CM
|
0.6CM
|
0.6CM
|
0.6CM
|
0.6CM
|
Weight of two or three sections
|
140KG180KC
|
170KG200KG
|
190KG220KG
|
210KG240KG
|
250KG300KG
|
330KG
|
330KG
|
Supporting leg guardrail
|
not have
|
have
|
have
|
have
|
have
|
have
|
have
|
