Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | DJ500-16 |
Minimum Order Quantity: | 1unit |
Price: | $4000-$4500 /unit |
Packaging Details: | Iron pallet+plastic film |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Product Name: | Clamp Electric Stacker | Load Weight: | 500kg |
---|---|---|---|
Load Height: | 1600mm | Clamping Diameter Range: | 200~1250mm |
Battery Capacity: | 12V/120Ah | Driving Motor: | 1.5kw |
Highlight: | 2m Semi Electric Roll Stacker,500kg Semi Electric Roll Stacker,2000mm Semi Electric Roll Stacker |

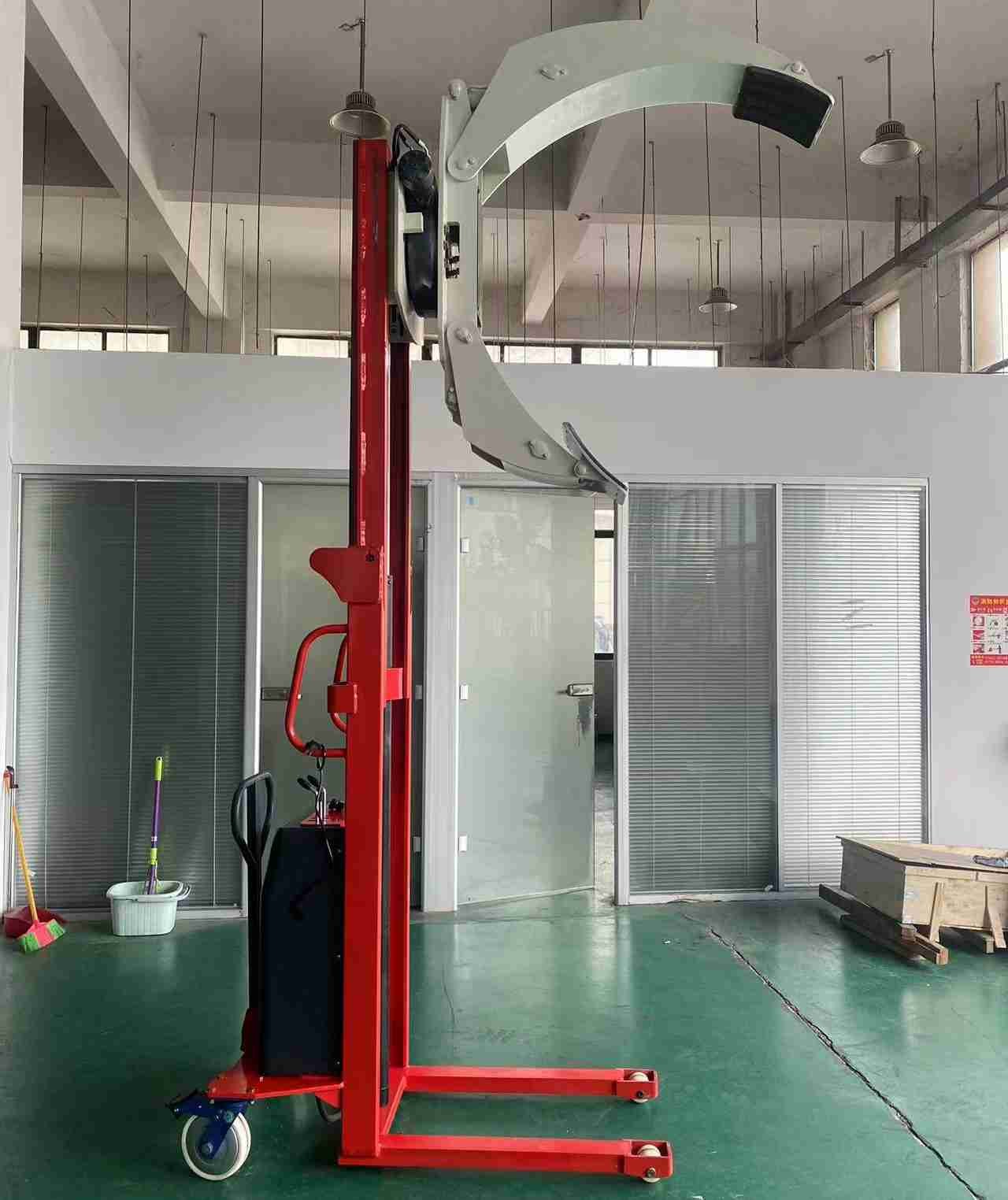

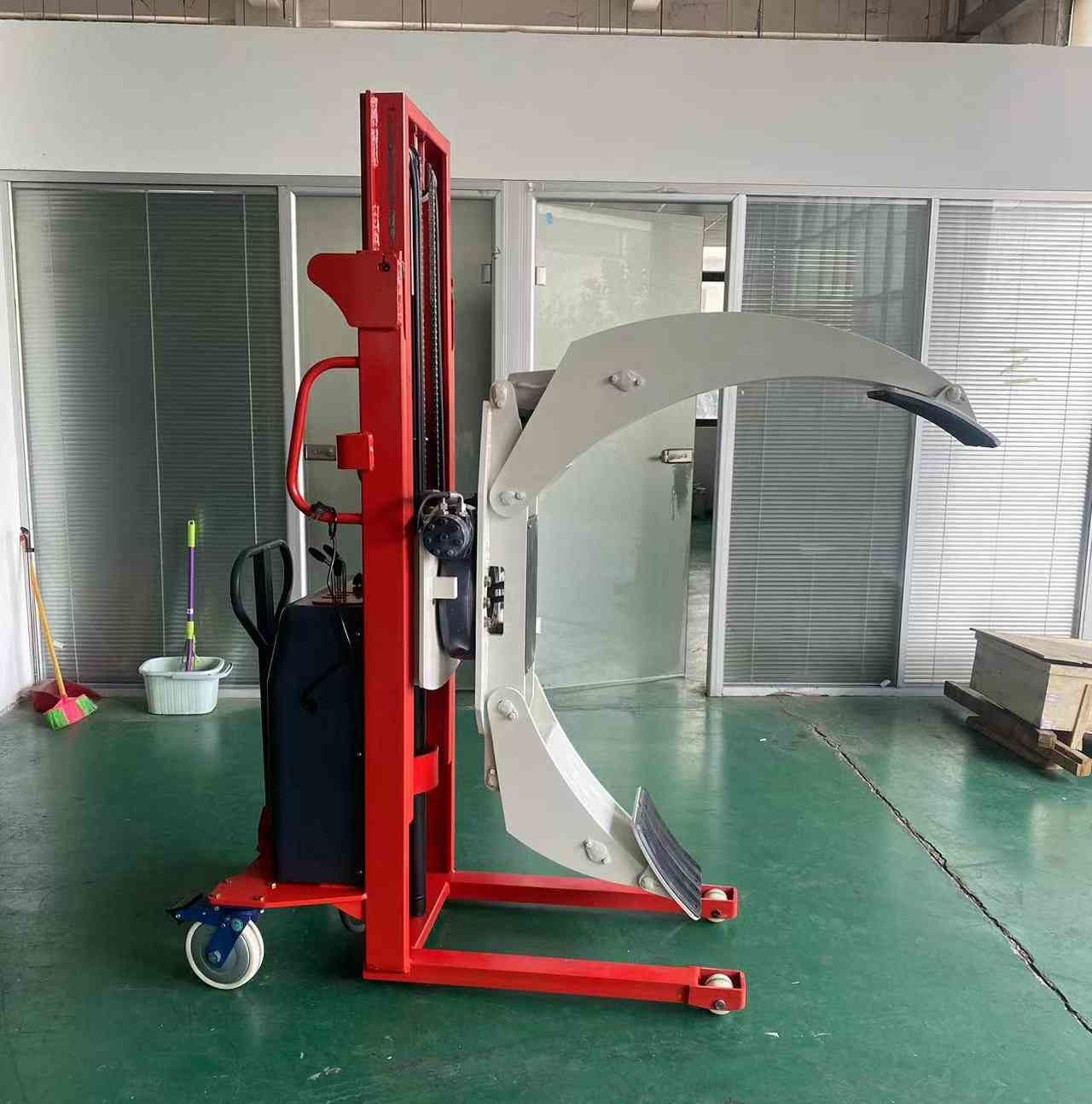

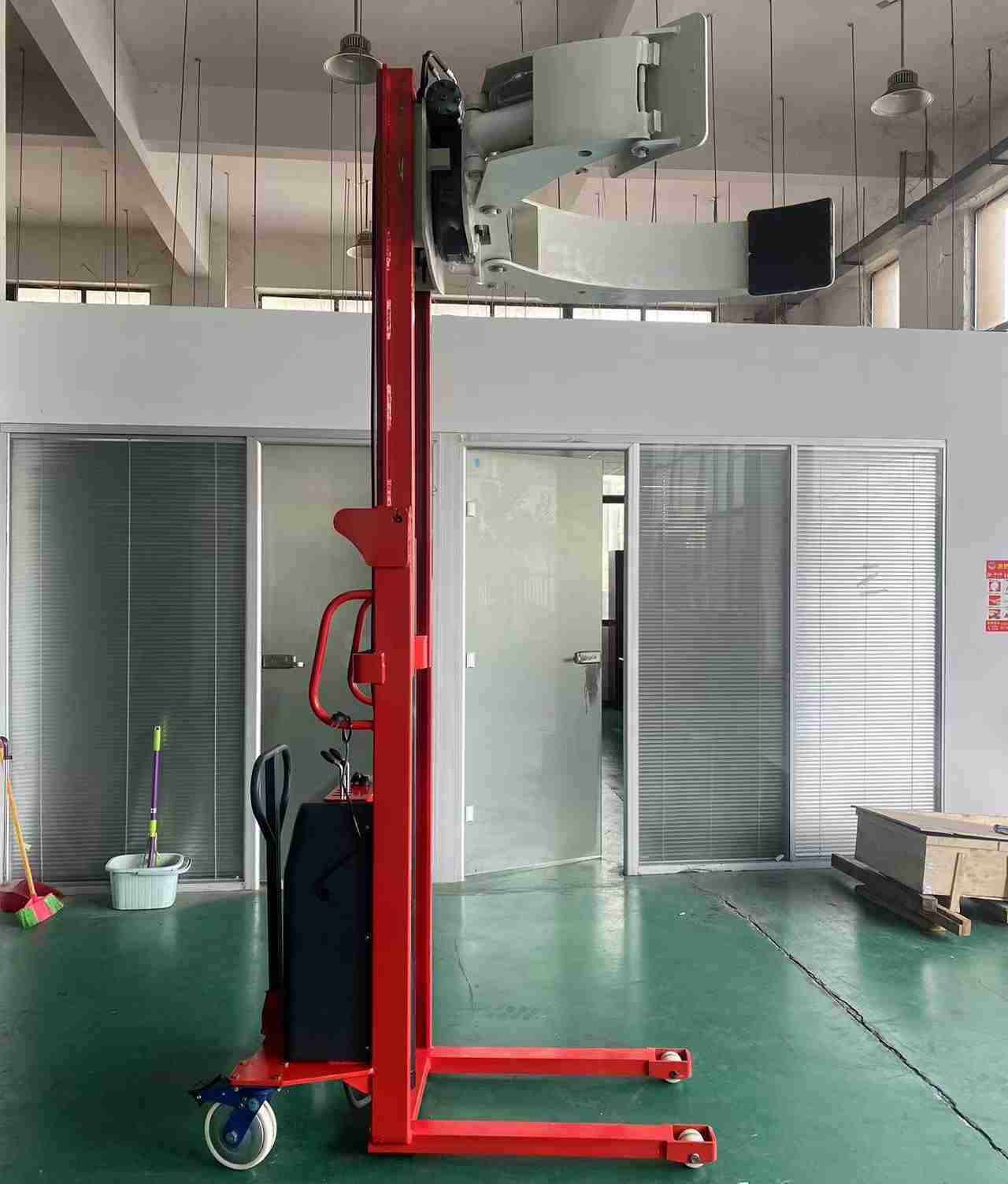

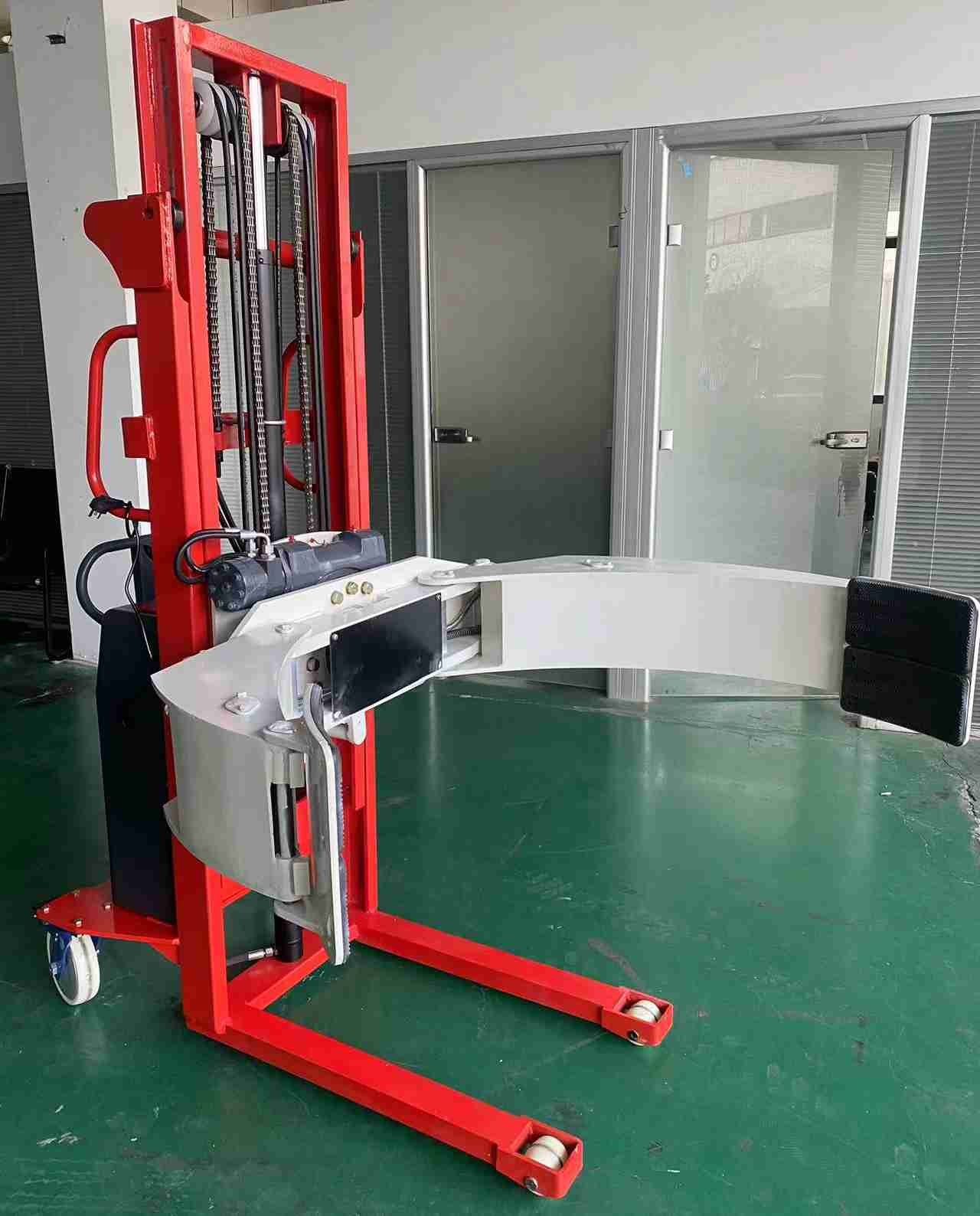

360 degree 500kg 2000mm 2m Semi Electric Roll Stacker With Clamp and pressure regulator
The Semi Electric Roll Stacker stands out for its blend of power and convenience. It harnesses the strength of an electric motor to effortlessly lift and stack heavy loads, while retaining the agility of manual control for precise placement. This hybrid approach reduces operator fatigue, ensuring safer, more efficient workflows. Its compact frame and intuitive operation make it ideal for tight spaces and quick tasks, enhancing productivity in dynamic environments. Furthermore, its adaptability to varying loads and ease of maintenance contribute to its long-term cost-effectiveness. In essence, the Semi Electric Roll Stacker offers a smart, sustainable solution for modern material handling needs.
1.It is suitable for holding goods, rotating, raising and placing.
2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.
3.It can rotate 180 degrees or 360 degrees electrically.
power source
|
|
Battery
|
rated load
|
kg
|
250/300/500
|
load center
|
mm
|
500
|
operation way
|
|
Standing operation,electric lifting,electric gripper,electric rotating,manual moving
|
turning radius
|
mm
|
1050
|
aisle width
|
mm
|
1900
|
length
|
mm
|
1500
|
width
|
mm
|
760
|
height
|
mm
|
2100
|
mast
|
|
1-stage mast
|
adjustable extent of clamp
|
mm
|
200~1250
|
max height of forks
|
mm
|
1500
|
min height of forks
|
mm
|
200
|
rotation angle
|
°
|
90°(left and right)
|
running speed(load/unload)
|
km/h
|
manual
|
hoisting speed(load/unload)
|
mm/s
|
110/160
|
descent speed(load/unload)
|
mm/s
|
150/130
|
climbing capability
|
%
|
3,5
|
braking mode
|
|
Wheel brake
|
tyres,material
|
|
Nylon
|
load wheel dimensions
|
mm
|
85*80,2pcs
|
steering wheel dimensions
|
mm
|
180*50,2pcs
|
hydraulic motor
|
kw
|
12v/2.2kw
|
battery
|
v/ah
|
12/120
|
charger
|
v/a
|
12/15,
|
weight
|
kg
|
450
|
