Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | DJ500-16 |
Minimum Order Quantity: | 1unit |
Price: | $4000-$4500 /unit |
Packaging Details: | Iron pallet+plastic film |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Product Name: | Clamp Electric Stacker | Load Weight: | 500kg |
---|---|---|---|
Load Height: | 1600mm | Clamping Diameter Range: | 200~1250mm |
Battery Capacity: | 12V/120Ah | Driving Motor: | 1.5kw |
Highlight: | 1102lb Semi Electric Roll Stacker,1543lb Semi Electric Roll Stacker,2 meters Semi Electric Roll Stacker |

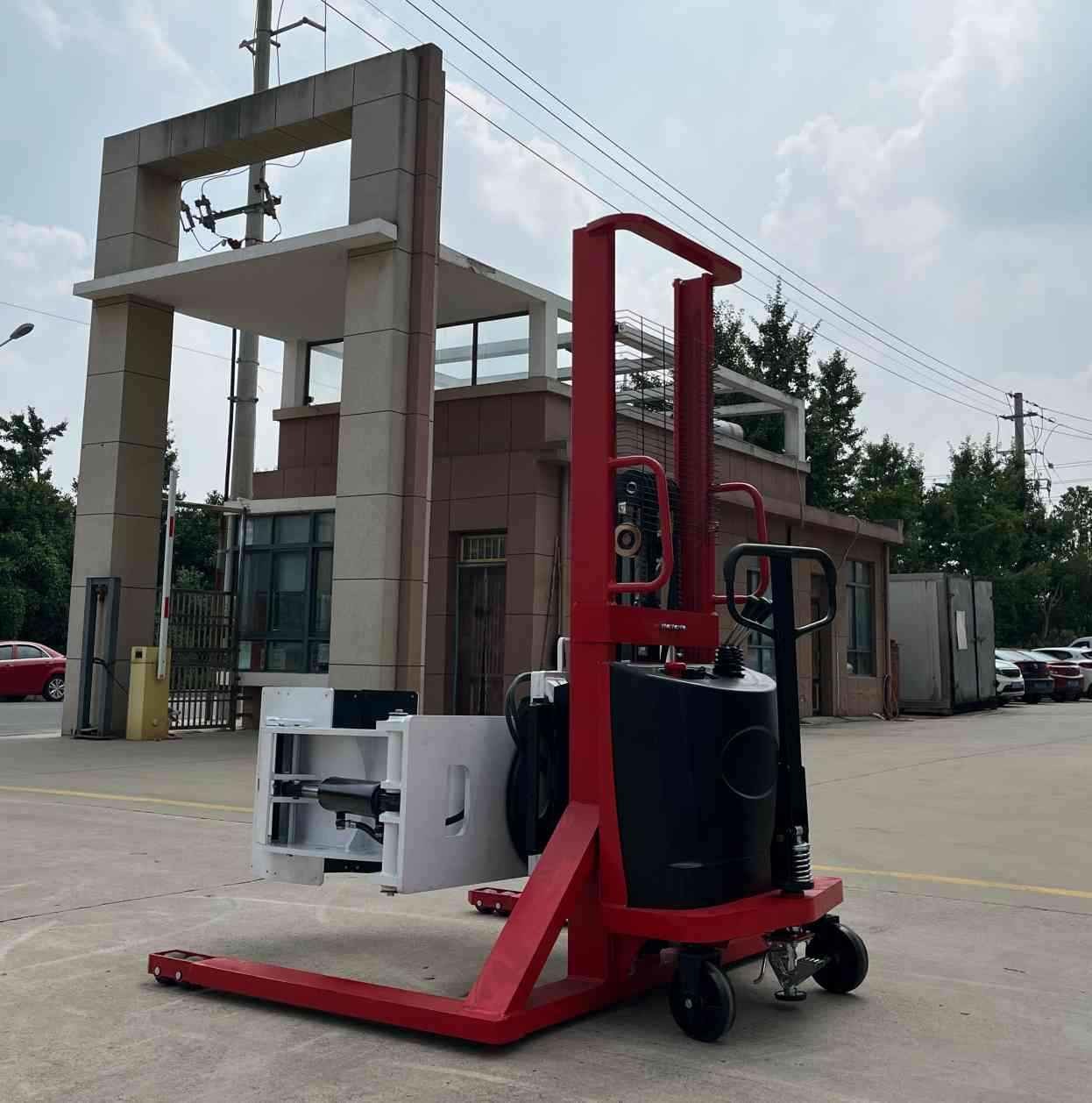

1102lb 1543lb 2 meters Semi Electric Roll Stacker can rotate 360 degree with adjustable Clamp
The Semi Electric Roll Stacker stands out for its balance of power, efficiency, and cost-effectiveness. By integrating an electric motor for lifting and lowering functions with manual operation for horizontal movements, it optimizes energy usage while maintaining robust performance. This hybrid design not only reduces running costs but also contributes to a greener workplace by minimizing emissions. The stacker's user-friendly interface simplifies operation, requiring minimal training, thereby enhancing operator safety and overall productivity. Its versatility in handling a wide range of roll sizes and weights makes it an ideal choice for diverse industrial and commercial applications. Furthermore, its compact footprint enables seamless navigation in tight spaces, maximizing storage capacity. With durable construction and reliable components, the Semi Electric Roll Stacker offers a long-lasting solution for efficient material handling tasks.
1.It is suitable for holding goods, rotating, raising and placing.
2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.
3.It can rotate 180 degrees or 360 degrees electrically.
power source
|
|
Battery
|
rated load
|
kg
|
250/300/500
|
load center
|
mm
|
500
|
operation way
|
|
Standing operation,electric lifting,electric gripper,electric rotating,manual moving
|
turning radius
|
mm
|
1050
|
aisle width
|
mm
|
1900
|
length
|
mm
|
1500
|
width
|
mm
|
760
|
height
|
mm
|
2100
|
mast
|
|
1-stage mast
|
adjustable extent of clamp
|
mm
|
200~1250
|
max height of forks
|
mm
|
1500
|
min height of forks
|
mm
|
200
|
rotation angle
|
°
|
90°(left and right)
|
running speed(load/unload)
|
km/h
|
manual
|
hoisting speed(load/unload)
|
mm/s
|
110/160
|
descent speed(load/unload)
|
mm/s
|
150/130
|
climbing capability
|
%
|
3,5
|
braking mode
|
|
Wheel brake
|
tyres,material
|
|
Nylon
|
load wheel dimensions
|
mm
|
85*80,2pcs
|
steering wheel dimensions
|
mm
|
180*50,2pcs
|
hydraulic motor
|
kw
|
12v/2.2kw
|
battery
|
v/ah
|
12/120
|
charger
|
v/a
|
12/15,
|
weight
|
kg
|
450
|
