Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | CDD1530 |
Minimum Order Quantity: | 1unit |
Price: | $2000-$3000 /unit |
Packaging Details: | Iron pallet+plastic film |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500units/month |
Color: | Red/Customized | Product Name: | Electric Forklift |
---|---|---|---|
Load Center: | 500mm | Load Capacity: | 1000-1500kg |
Load Height: | 3000mm | Feature: | High Efficiency |
Battery Cpacity: | 24V/80Ah | ||
Highlight: | 4000mm Full electric stacker,1.5 tons Full electric stacker,Full electric stacker with pedal |

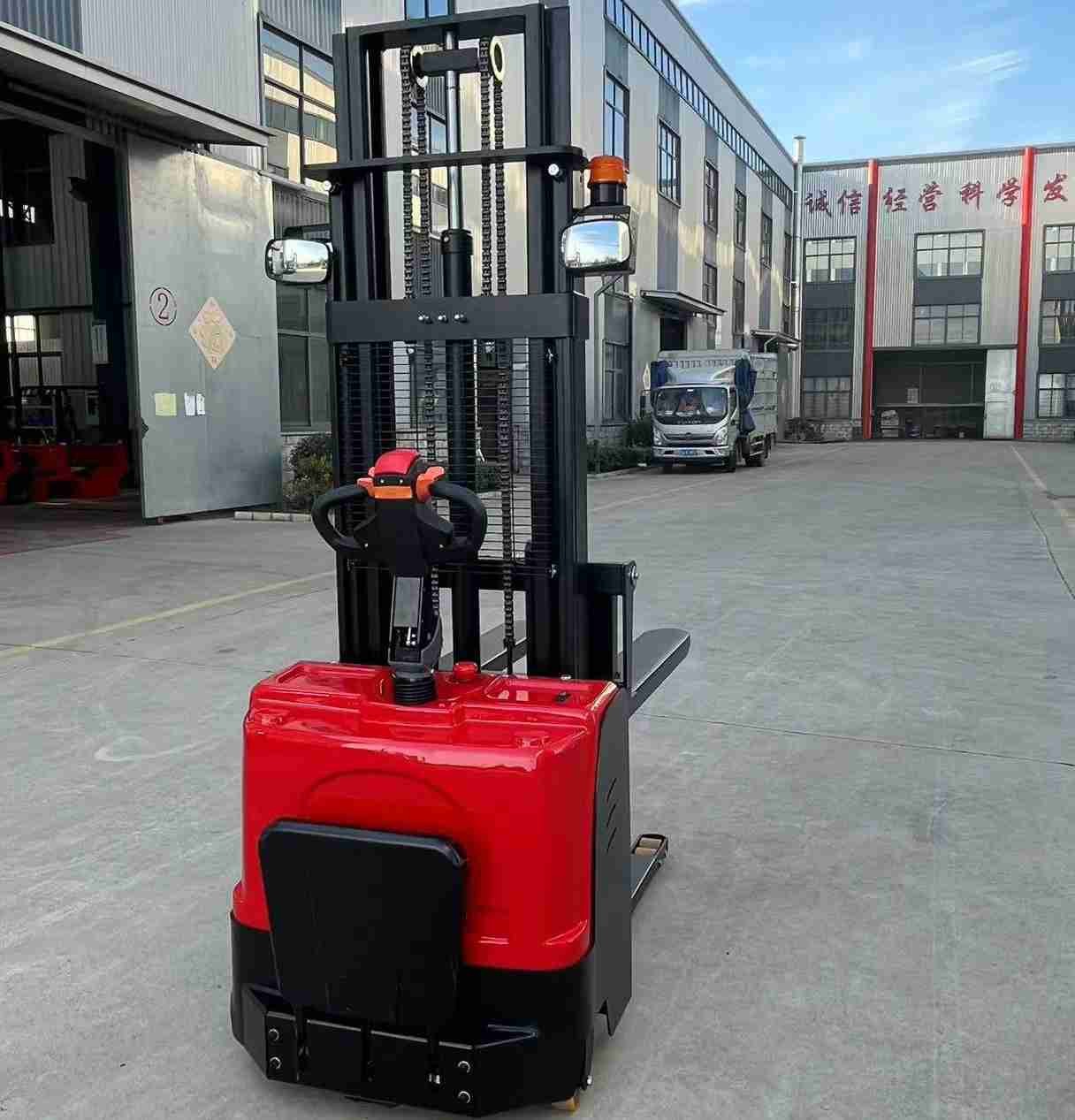

1500kg 1.5ton 4000mm Full electric stacker with side wheels for transportation industry
The Full electric stacker offers unparalleled convenience and performance in warehouse operations. Its electric drive guarantees a clean, emission-free working environment, while its sleek profile enables seamless navigation through cramped aisles. Its precise control system ensures safe and efficient load handling, minimizing manual effort and maximizing productivity. Maintenance is minimal and cost-effective, translating to lower operational expenses. Furthermore, its reliable battery technology guarantees extended runtime with quick recharging, reducing downtime. The Full electric stacker is a smart choice for modern logistics, balancing efficiency, sustainability, and cost-effectiveness.
1. Medium intensity material handling, stacking and loading/unloading.
2. Designed for narrow aisles .
3. Only suitable for single-sided pallet use.
4. High-strength vertical gearbox improves transmission efficiency, reduces transmission noise, and has a long working life.
5. Folding pedals provide a comfortable working environment for operation.
6. Large-capacity battery ensures long time use.
Model
|
|
CDD1030
|
CDD1530
|
Load Capacity
|
kg
|
1000
|
1500
|
Lifting Height
|
mm
|
3000
|
3000
|
Load Center
|
mm
|
500
|
500
|
Fork size
|
mm
|
1100*170*50
|
1100*170*50
|
Minimum Ground Clearance
|
mm
|
30
|
30
|
Pedal Length
|
mm
|
410
|
410
|
Handler Height
|
mm
|
1490
|
1490
|
Outer Distance between Forks
|
mm
|
685
|
685
|
Inner Distance between Forks
|
mm
|
345
|
345
|
Tyre Type
|
|
Polyurethane
|
Polyurethane
|
Control Way
|
|
Handler
|
Handler
|
Speed Regulation Way
|
|
Stepless Speed Regulation
|
Stepless Speed Regulation
|
The Min.Turning Radius
|
mm
|
1450
|
1450
|
Driving Speed with Full Loads
|
km/h
|
4
|
4
|
Maximum gradient climb with full load
|
°
|
3°/5°
|
3°/5°
|
Battery
|
V/Ah
|
24V/80A
|
24V/80A
|
Driving Motor
|
kw
|
0.75
|
0.75
|
Lifting Motor
|
kw
|
2.2
|
2.2
|
Tyre Size
|
mm
|
210/80
|
210/80
|
Overall dimensions(L*W*H)
|
mm
|
1880*860*2100
|
1880*860*2100
|
Weight
|
kg
|
580
|
600
|
Reference Working Time
|
h
|
3
|
3
|
lncreased height each tonnage
|
mm
|
1600/2000/2500/3000/3500
|
|
Max height
|
2100/1600/1850/2100/2350
|
Features of lightweight electric pallet stackers
The structure of electric pallet stacker is relatively simple and flexible in maneuvering. It is suitable for operation in narrow passages and limited space, and is an important vehicle equipment for warehouses, supermarkets, loading, unloading and stacking palletized goods.
1. energy efficient: the use of electric power drive, not only can improve work efficiency, but also can save energy.
2. Flexible: the equipment is compact and can move freely in a narrow space, and has good steering ability.
3. Simple operation: the control system is simple and easy to understand, the operator only needs to carry out simple instructions to realize the control of the equipment.
4. Safe and reliable: adopting hydraulic system, it can ensure the goods lifting and placing smoothly, and has the function of preventing accidents.
