350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle

350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle
350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle
350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle
Basic Information
Place of Origin: China
Brand Name: KAD
Certification: CE
Model Number: DJ500-16
Minimum Order Quantity: 1unit
Price: ＄4000-＄4500 /unit
Packaging Details: Iron pallet+plastic film
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50units/month
Get Best Price Contact Now
Product Name: Clamp Electric Stacker Load Weight: 500kg
Load Height: 1600mm Clamping Diameter Range: 200~1250mm
Battery Capacity: 12V/120Ah Driving Motor: 1.5kw
Highlight:

350kg Semi Electric Roll Stacker

,

1.7ton Semi Electric Roll Stacker

,

1700mm Semi Electric Roll Stacker

Product Description

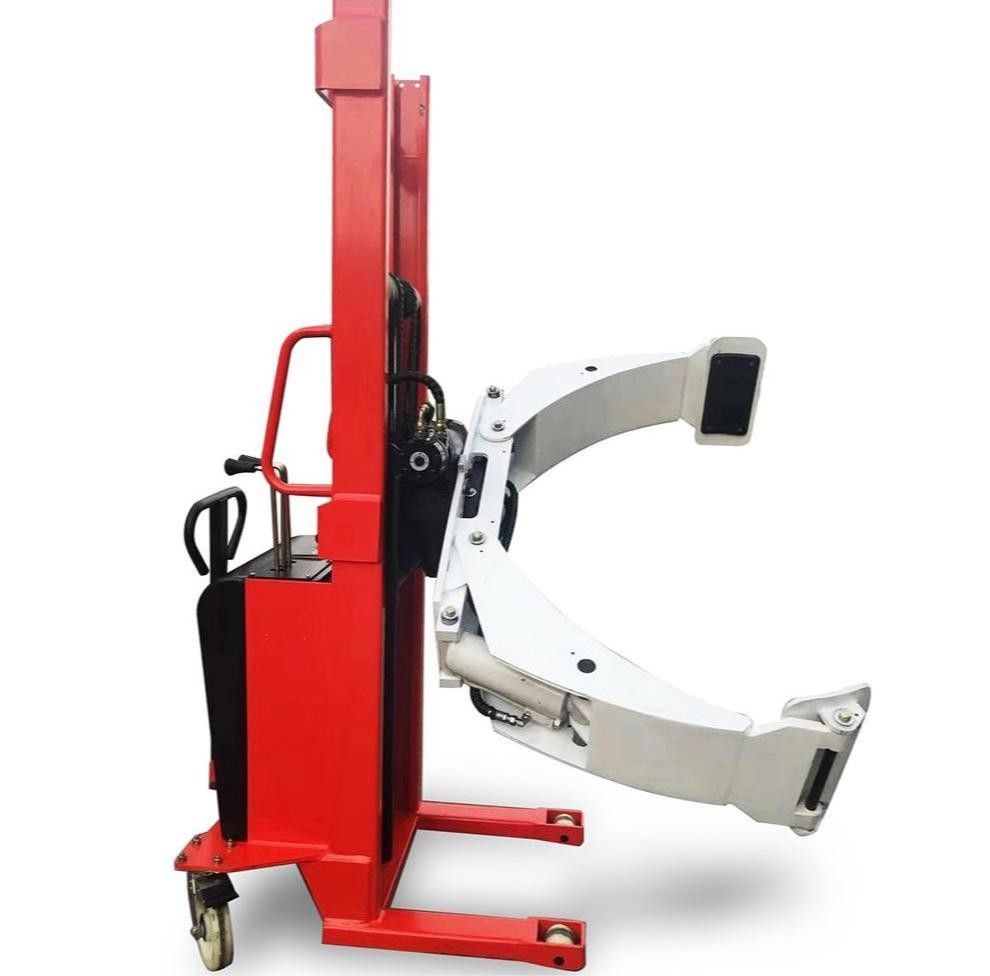

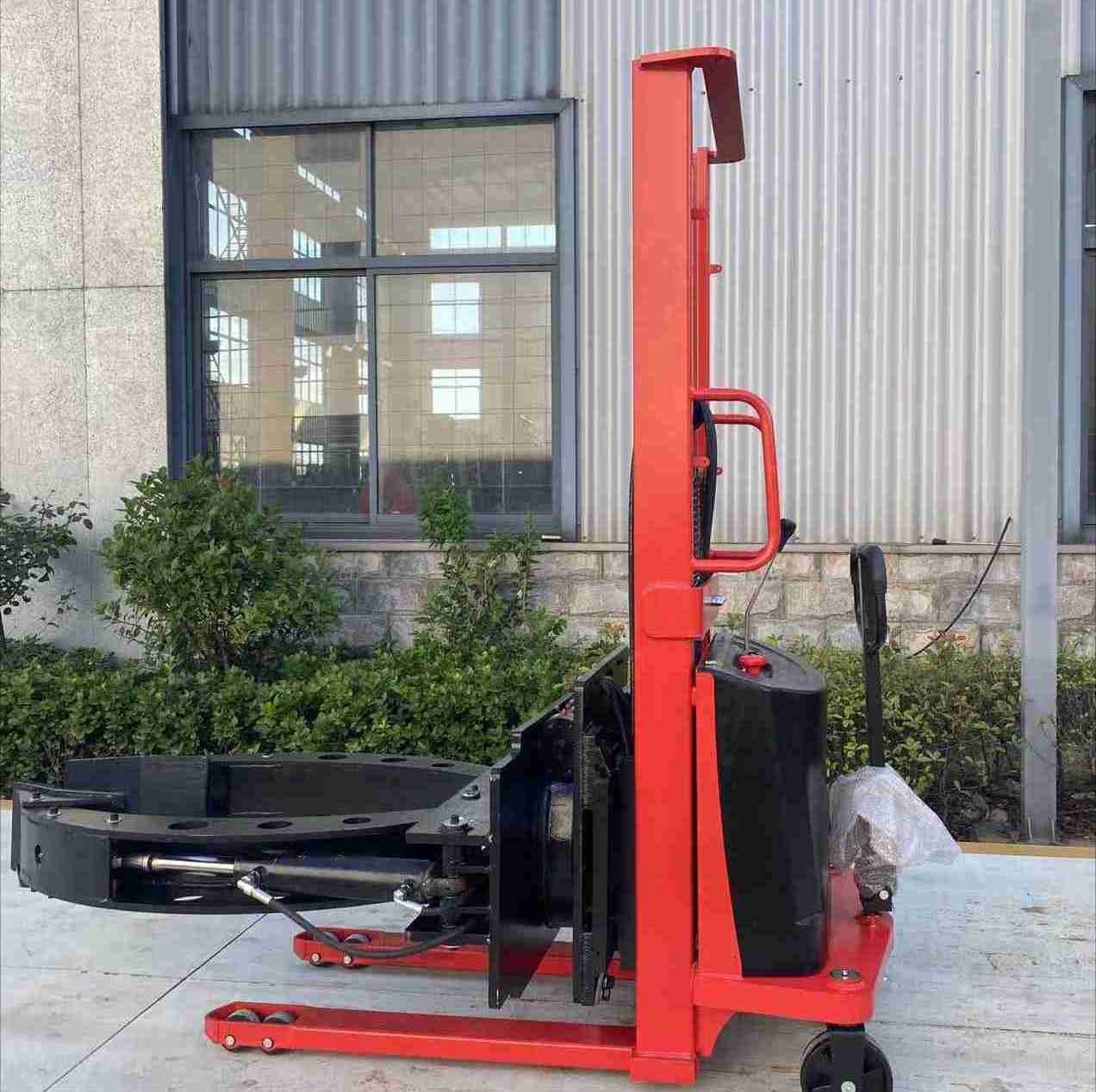

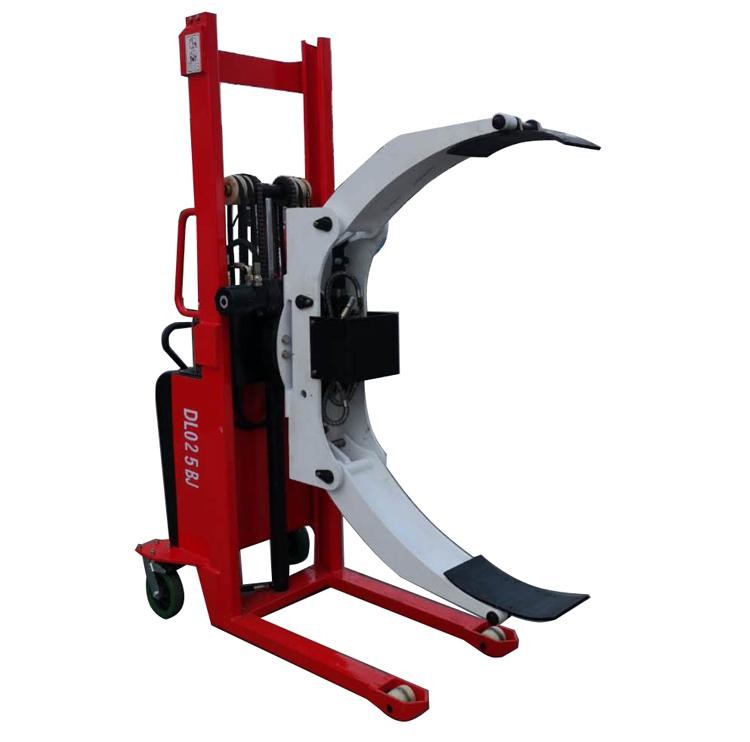

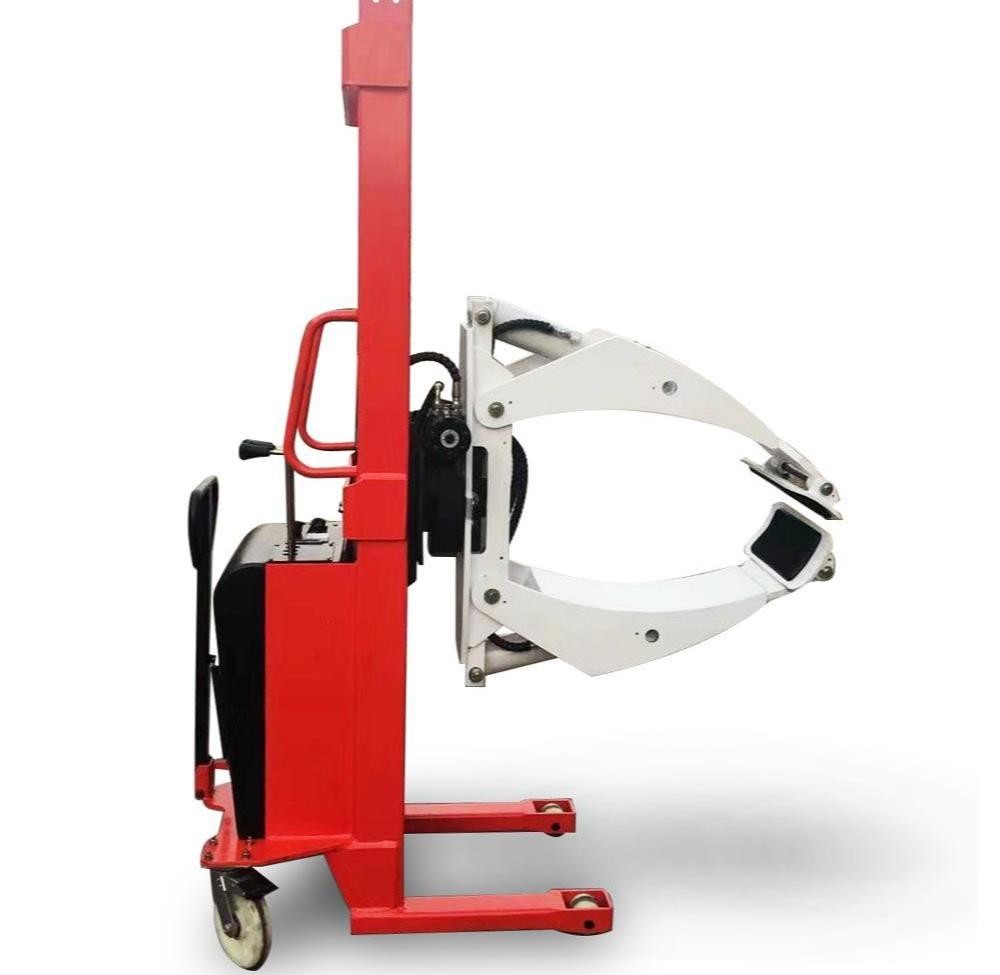

350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp can customized rotation angle

The Semi Electric Roll Stacker with Clamp offers several advantages, including enhanced efficiency through its semi-electric operation, easy handling of rolls due to the integrated clamp mechanism, and improved workspace safety by minimizing manual lifting. Its design also ensures stability during stacking, making it a reliable choice for various industrial applications.

350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 0

350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 1

350kg 1700mm 1.7m Semi Electric Roll Stacker With Clamp Customized Rotation Angle 2



Main Features

1.It is suitable for holding goods, rotating, raising and placing.

2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.

3.It can rotate 180 degrees or 360 degrees electrically.


4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.



Specification
power source

Battery
rated load
kg
250/300/500
load center
mm
500
operation way

Standing operation,electric lifting,electric gripper,electric rotating,manual moving
turning radius
mm
1050
aisle width
mm
1900
length
mm
1500
width
mm
760
height
mm
2100
mast

1-stage mast
adjustable extent of clamp
mm
200~1250
max height of forks
mm
1500
min height of forks
mm
200
rotation angle
°
90°(left and right)
running speed(load/unload)
km/h
manual
hoisting speed(load/unload)
mm/s
110/160
descent speed(load/unload)
mm/s
150/130
climbing capability
%
3,5
braking mode

Wheel brake
tyres,material

Nylon
load wheel dimensions
mm
85*80,2pcs
steering wheel dimensions
mm
180*50,2pcs
hydraulic motor
kw
12v/2.2kw
battery
v/ah
12/120
charger
v/a
12/15,
weight
kg
450
FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet.
We can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.


Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
