Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | COT0.35D |
Minimum Order Quantity: | 1 unit |
Price: | $2000-$2600 /unit |
Packaging Details: | Iron pallet+plastic film |
Delivery Time: | 7 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200units/month |
Load Capacity: | 550kg | Front Leg Width: | 640/800mm |
---|---|---|---|
Battery: | 12V/120Ah | Lifting Height: | 3000mm |
Lifting Speed: | 120mm/s | Overall Length: | 1480mm |
Overall Width: | 1040mm | Overall Height: | 2075mm |
Highlight: | 1 ton Electric Oil Drum Stacker,DC motor Electric Oil Drum Stacker,3 Meters Electric Oil Drum Stacker |

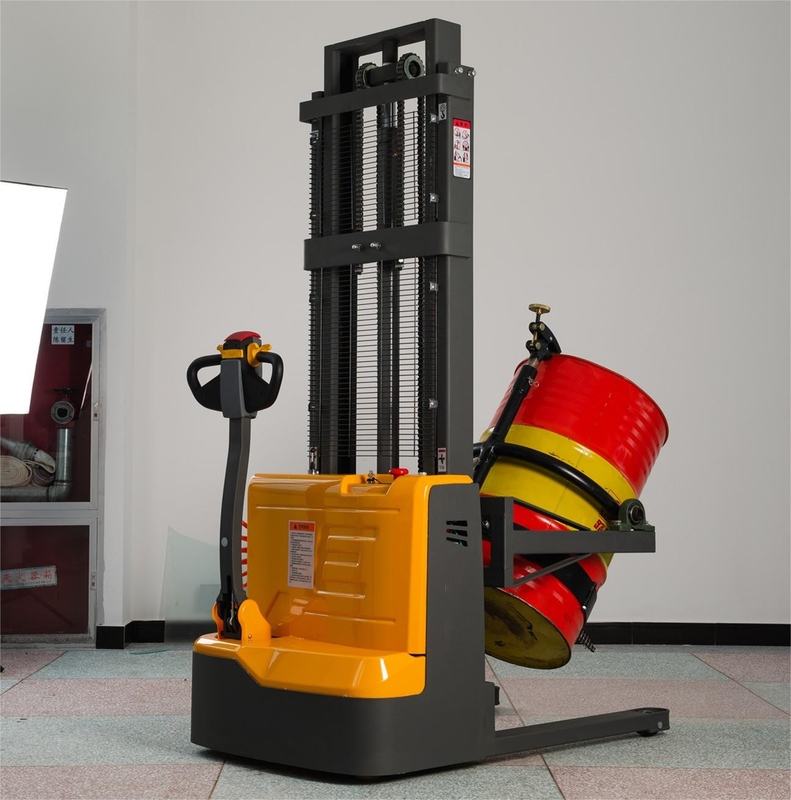

Electric Oil Drum Stacker with DC motor Lifting height 3 Meters Capacity 500kg 1 ton for drum handling
The Full Electric Drum Lifter offers numerous advantages. It boasts high efficiency and speed with electric-powered lifting, ensuring rapid drum handling. Its safety features, such as overload protection, ensure safe operation. With intuitive controls, it's easy to use, and its adjustable design caters to various drums. Space-saving, it's a valuable addition to any logistics or warehouse setup.
1.With explosion-proof valve at the bottom of cylinder, even ifthe pipe burst, the mast will not rapidly decline.
2.Heavy duty steel mast is reliable and hard to bend over.
3.The foot brake is easy to operate and maintain.
4.The width of fork can be adjusted easily for its Sleeve design.
MODEL
|
|
|
CDDW10 CDDW15
|
|
Features
|
Drive system
|
|
|
Battery
|
Driving mode
|
|
|
Walkie
|
|
Load Capacity
|
Q
|
KG
|
1000
|
|
Load Center
|
C
|
MM
|
500
|
|
Weight
|
Weight(With battery)
|
|
KG
|
480/495/515/535
|
Wheels
|
Material
|
|
|
PU
|
Size
|
Lifting Height
|
H3
|
MM
|
1600/2000/2500/3000
|
Lowest Mast
|
H1
|
MM
|
2080/1580/1830/2080
|
|
Max.Height when operating
|
H4
|
MM
|
2080/2730/3230/3730
|
|
Min.Height of Fork
|
H13
|
MM
|
≤90
|
|
Length
|
L1
|
MM
|
1770
|
|
Width
|
B1
|
MM
|
850
|
|
Fork Length
|
L
|
MM
|
1070
|
|
Wheelbase
|
Y
|
MM
|
1250
|
|
Fork Outside Width
|
B5
|
MM
|
680
|
|
Fork Inside Width
|
|
MM
|
305
|
|
Min.Turning Radius
|
WA
|
MM
|
1390
|
|
Performance
|
Driving Speed
(Empty/Full Load)
|
|
MM/S
|
5.0/5.0
|
Lifting Speed
(Empty/Full Load)
|
|
MM/S
|
140/135
|
|
Descending Speed
(Empty/Full Load)
|
|
MM/S
|
150/155
|
|
Max.Gradient
(Empty/Full Load)
|
|
°
|
7/5
|
|
Brake
|
|
|
Electromagnetic brake
|
|
|
Driving Motor
|
|
KW
|
DC/0.75
|
Lifting Motor
|
|
KW
|
DC/2.2
|
|
Battery
|
Capacity
|
|
V/Ah
|
24/80Ah
|
