Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | CDD1530 |
Minimum Order Quantity: | 1unit |
Price: | $2000-$3000 /unit |
Packaging Details: | Iron pallet+plastic film |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500units/month |
Color: | Red/Customized | Product Name: | Electric Forklift |
---|---|---|---|
Load Center: | 500mm | Load Capacity: | 1000-1500kg |
Load Height: | 3000mm | Feature: | High Efficiency |
Battery Cpacity: | 24V/80Ah | ||
Highlight: | 9.84ft Electric pallet truck,3t Electric pallet truck,Lightweight Electric pallet truck |

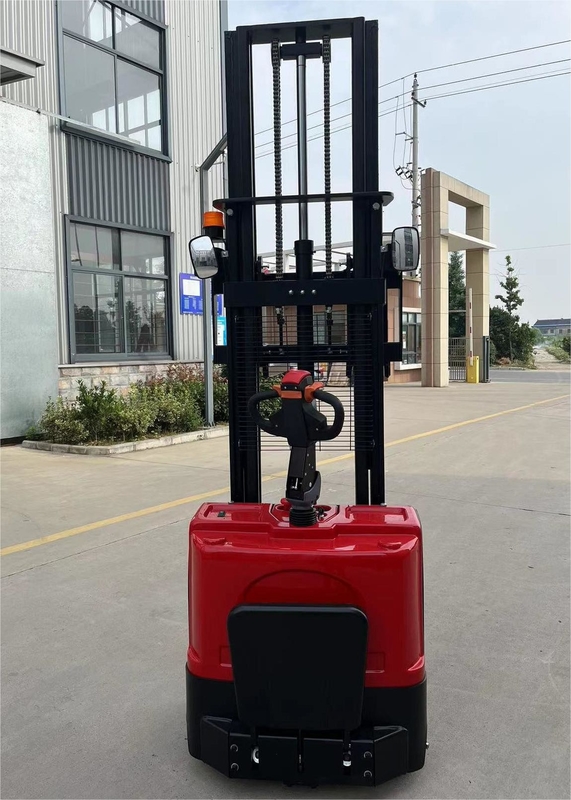

Lift 3000mm Standing 9.84ft 3t Electric pallet truck with Lightweight forlogistics and warehouse
The standing electric forklift operates efficiently by leveraging a combination of key components. It is powered by an electric motor and battery pack, allowing for smooth and quiet operation. The hydraulic system facilitates the lifting and tilting of loads, while the maneuverability is enhanced by the precision control of the steering and drive mechanisms. Standing operators can efficiently handle materials in various environments, thanks to the ergonomic design and intuitive controls of the forklift.
1. Medium intensity material handling, stacking and loading/unloading.
2. Designed for narrow aisles .
3. Only suitable for single-sided pallet use.
4. High-strength vertical gearbox improves transmission efficiency, reduces transmission noise, and has a long working life.
5. Folding pedals provide a comfortable working environment for operation.
6. Large-capacity battery ensures long time use.
Model
|
|
CDD1030
|
CDD1530
|
Load Capacity
|
kg
|
1000
|
1500
|
Lifting Height
|
mm
|
3000
|
3000
|
Load Center
|
mm
|
500
|
500
|
Fork size
|
mm
|
1100*170*50
|
1100*170*50
|
Minimum Ground Clearance
|
mm
|
30
|
30
|
Pedal Length
|
mm
|
410
|
410
|
Handler Height
|
mm
|
1490
|
1490
|
Outer Distance between Forks
|
mm
|
685
|
685
|
Inner Distance between Forks
|
mm
|
345
|
345
|
Tyre Type
|
|
Polyurethane
|
Polyurethane
|
Control Way
|
|
Handler
|
Handler
|
Speed Regulation Way
|
|
Stepless Speed Regulation
|
Stepless Speed Regulation
|
The Min.Turning Radius
|
mm
|
1450
|
1450
|
Driving Speed with Full Loads
|
km/h
|
4
|
4
|
Maximum gradient climb with full load
|
°
|
3°/5°
|
3°/5°
|
Battery
|
V/Ah
|
24V/80A
|
24V/80A
|
Driving Motor
|
kw
|
0.75
|
0.75
|
Lifting Motor
|
kw
|
2.2
|
2.2
|
Tyre Size
|
mm
|
210/80
|
210/80
|
Overall dimensions(L*W*H)
|
mm
|
1880*860*2100
|
1880*860*2100
|
Weight
|
kg
|
580
|
600
|
Reference Working Time
|
h
|
3
|
3
|
lncreased height each tonnage
|
mm
|
1600/2000/2500/3000/3500
|
|
Max height
|
2100/1600/1850/2100/2350
|
Applications of Lightweight Electric Pallet Stacker
Lightweight Electric Pallet Stacker have a wide range of applications in the logistics and warehousing industry, mainly including the following aspects:
1. loading and unloading of goods: lightweight electric forklift trucks are suitable for loading and unloading of goods, can quickly and safely remove the goods from the shelves or place them on the shelves.
2. Cargo handling: lightweight electric forklift trucks can be used for cargo handling operations, and can quickly move goods inside the warehouse to improve work efficiency.
3. Warehouse management: lightweight electric forklift trucks can help warehouse managers to quickly and efficiently organize the goods in the warehouse, yardage and inventory work.
4. material transportation on production line: on the production line, the lightweight electric forklift truck can be used for material supply and transportation, which improves the production efficiency.
