Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | CDDW |
Minimum Order Quantity: | 1unit |
Price: | To be negotiated |
Packaging Details: | iron pallet +plastic film |
Delivery Time: | 7work days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Product Name: | Electric Walkie Stacker | Load Center: | 500 Mm |
---|---|---|---|
Place Of Origin: | CN;JIA | Load Weight: | 1000/1500KG |
Load Height: | 3000mm Or Customized | Feature: | Easy Operation Safety Convenience |
Highlight: | Full Electric Pallet Stacker,1600 kg Electric Pallet Stacker,3 meters Electric Pallet Stacker |

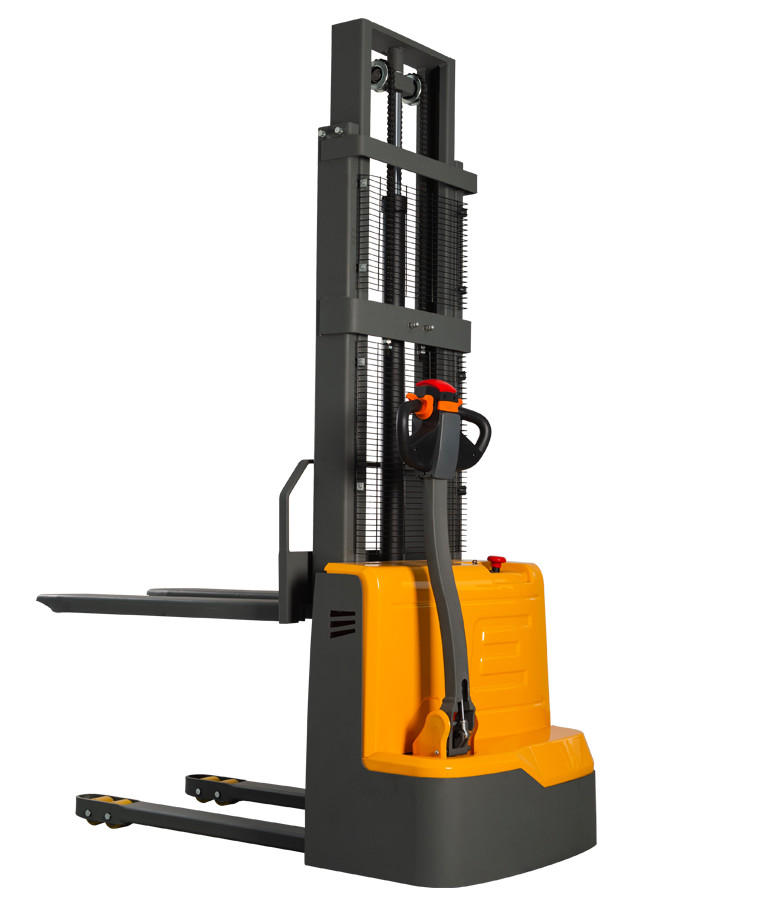

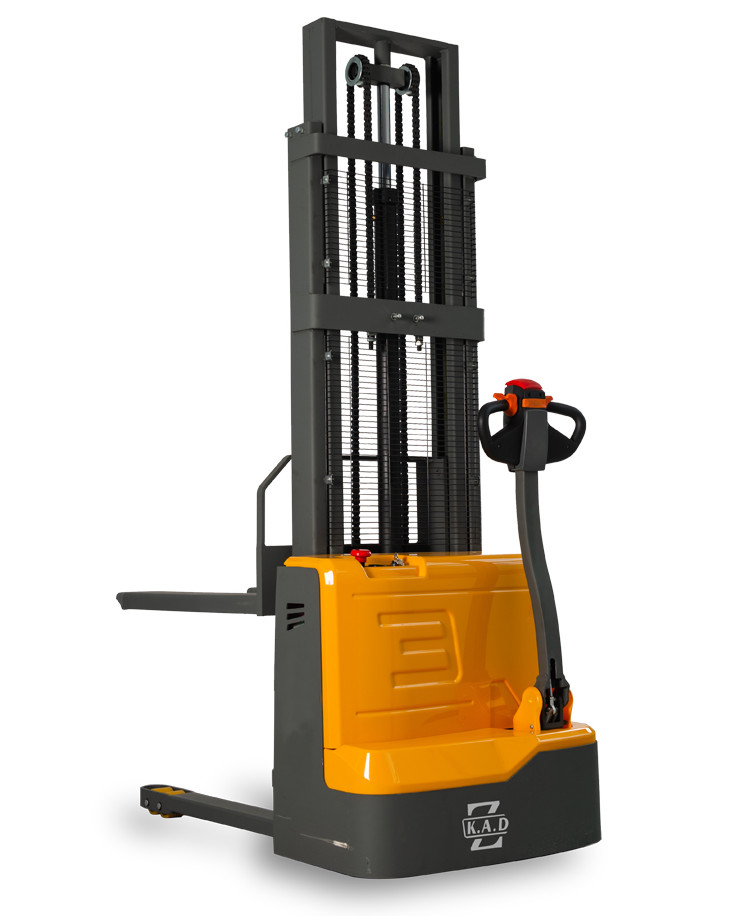

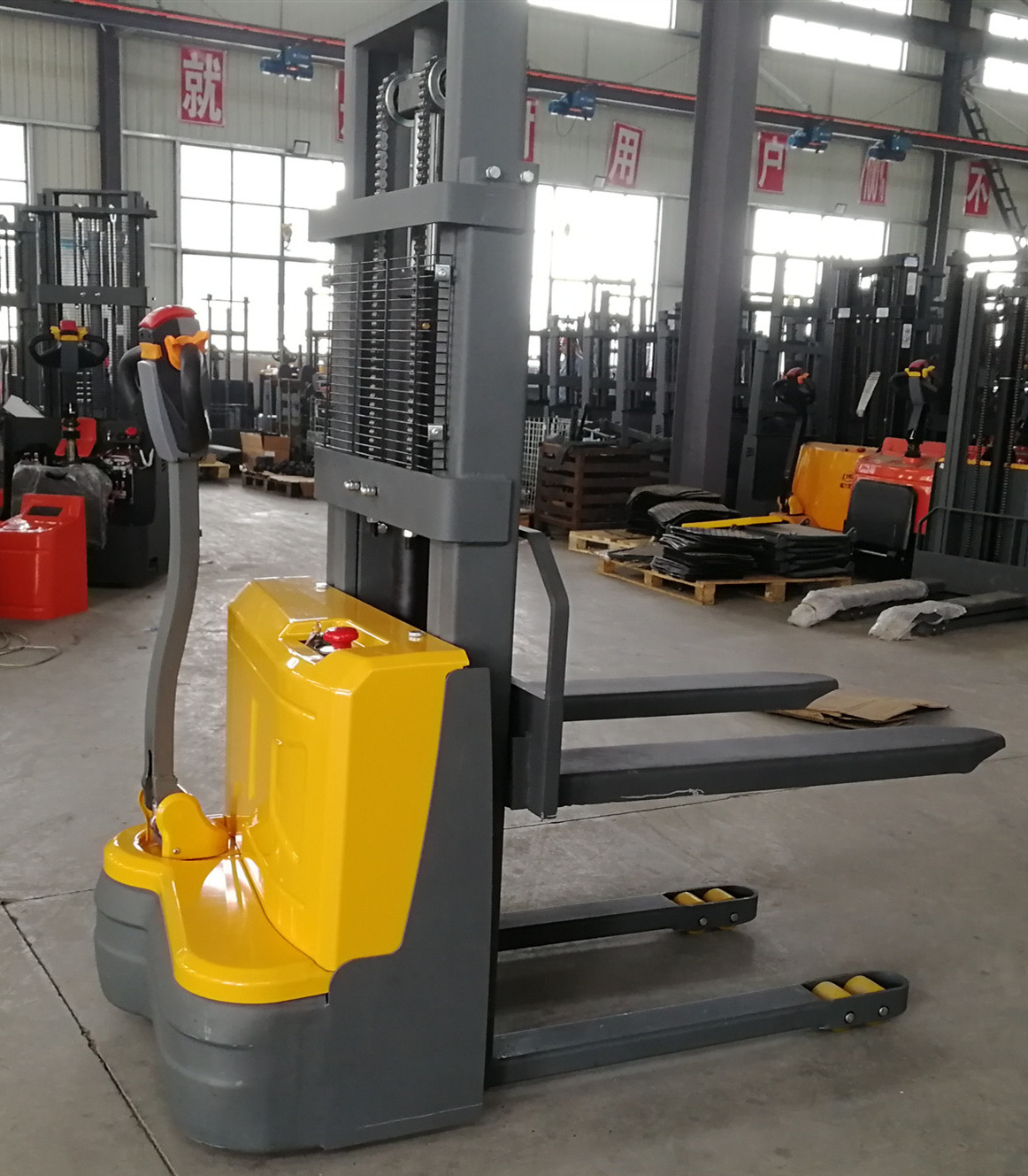

1600 kg 1.6 ton 3 meters Electric Pallet Stacker Full Electric Walkie Stacker with Curtis controller
The full electric walkie stacker offers numerous advantages, primarily in terms of efficiency, cost-savings, and environmental friendliness. Firstly, its large battery capacity ensures longer working hours with a quick charging time of 6-8 hours. Secondly, its low operational costs allow for significant savings, with each device requiring only minimal electricity expenditure per day. Additionally, its compact design and flexible maneuverability enable it to operate in various environments, including narrow aisles and stairs. Moreover, its ease of operation and high safety features, such as emergency stop buttons, ensure a safe working environment. In summary, the full electric walkie stacker provides a cost-effective, efficient, and environmentally friendly solution for material handling.
MODEL
|
|
|
CDDW10 CDDW15
|
|
Features
|
Drive system
|
|
|
Battery
|
Driving mode
|
|
|
Walkie
|
|
Load Capacity
|
Q
|
KG
|
1000
|
|
Load Center
|
C
|
MM
|
500
|
|
Weight
|
Weight(With battery)
|
|
KG
|
480/495/515/535
|
Wheels
|
Material
|
|
|
PU
|
Size
|
Lifting Height
|
H3
|
MM
|
1600/2000/2500/3000
|
Lowest Mast
|
H1
|
MM
|
2080/1580/1830/2080
|
|
Max.Height when operating
|
H4
|
MM
|
2080/2730/3230/3730
|
|
Min.Height of Fork
|
H13
|
MM
|
≤90
|
|
Length
|
L1
|
MM
|
1770
|
|
Width
|
B1
|
MM
|
850
|
|
Fork Length
|
L
|
MM
|
1070
|
|
Wheelbase
|
Y
|
MM
|
1250
|
|
Fork Outside Width
|
B5
|
MM
|
680
|
|
Fork Inside Width
|
|
MM
|
305
|
|
Min.Turning Radius
|
WA
|
MM
|
1390
|
|
Performance
|
Driving Speed
(Empty/Full Load)
|
|
MM/S
|
5.0/5.0
|
Lifting Speed
(Empty/Full Load)
|
|
MM/S
|
140/135
|
|
Descending Speed
(Empty/Full Load)
|
|
MM/S
|
150/155
|
|
Max.Gradient
(Empty/Full Load)
|
|
°
|
7/5
|
|
Brake
|
|
|
Electromagnetic brake
|
|
|
Driving Motor
|
|
KW
|
DC/0.75
|
Lifting Motor
|
|
KW
|
DC/2.2
|
|
Battery
|
Capacity
|
|
V/Ah
|
24/80Ah
|
