Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | RD070BJ-15 |
Minimum Order Quantity: | 1unit |
Price: | $4000-$6000 /unit |
Packaging Details: | Iron pallet+plastic film |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Color: | Green/Red/Yellow/Customized | Tire: | PU Wheel |
---|---|---|---|
Load Center: | 500mm | Turning Radius: | 1520mm |
Load Weight: | 500-1500kg | Load Height: | 1500-3000mm/customized |
Battery Cpacity: | 24V/80Ah | Feature: | High Efficiency |
Highlight: | Electric Paper Roll Stacker,1500 Kg Paper Roll Stacker,High Efficiency Paper Roll Stacker |

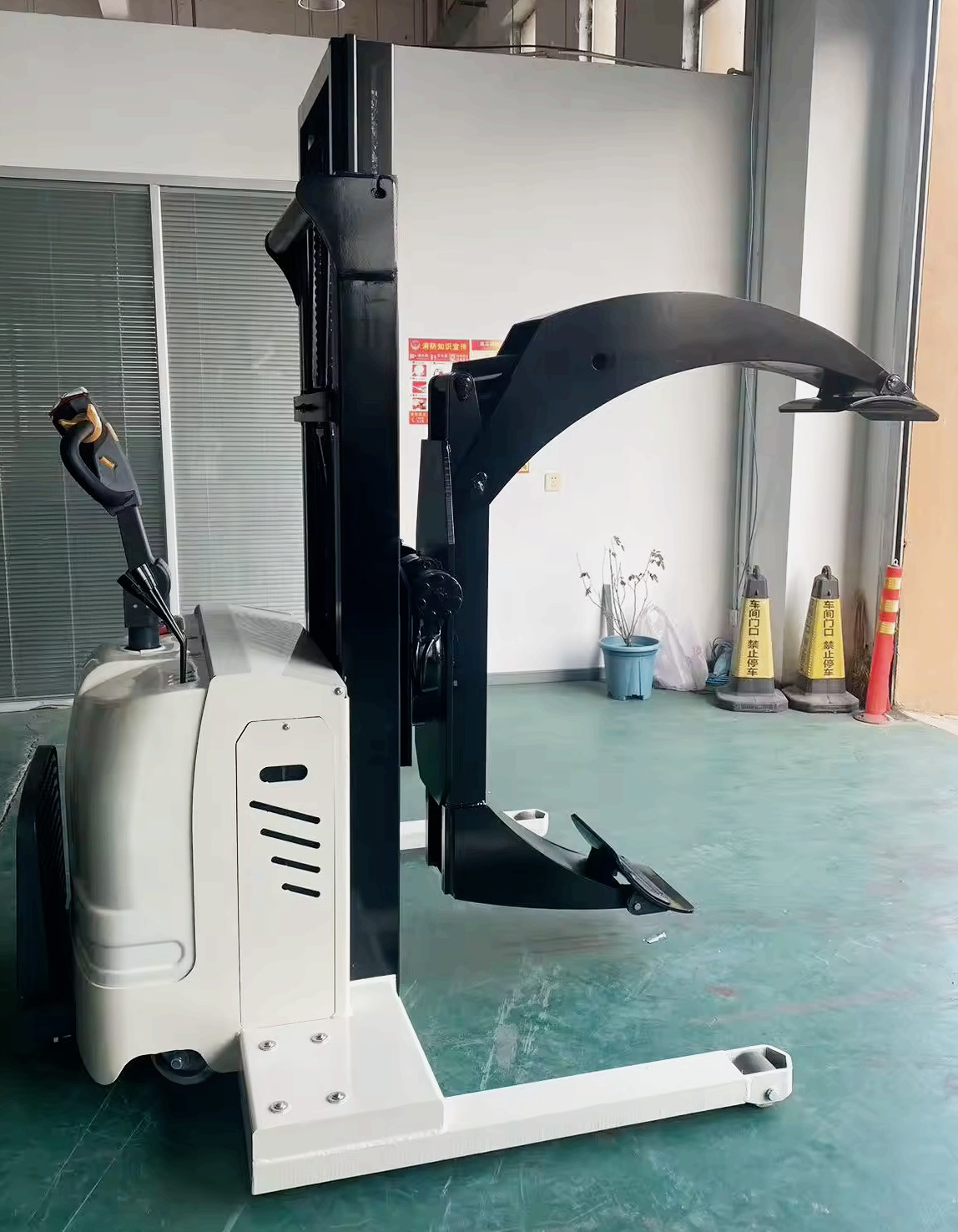

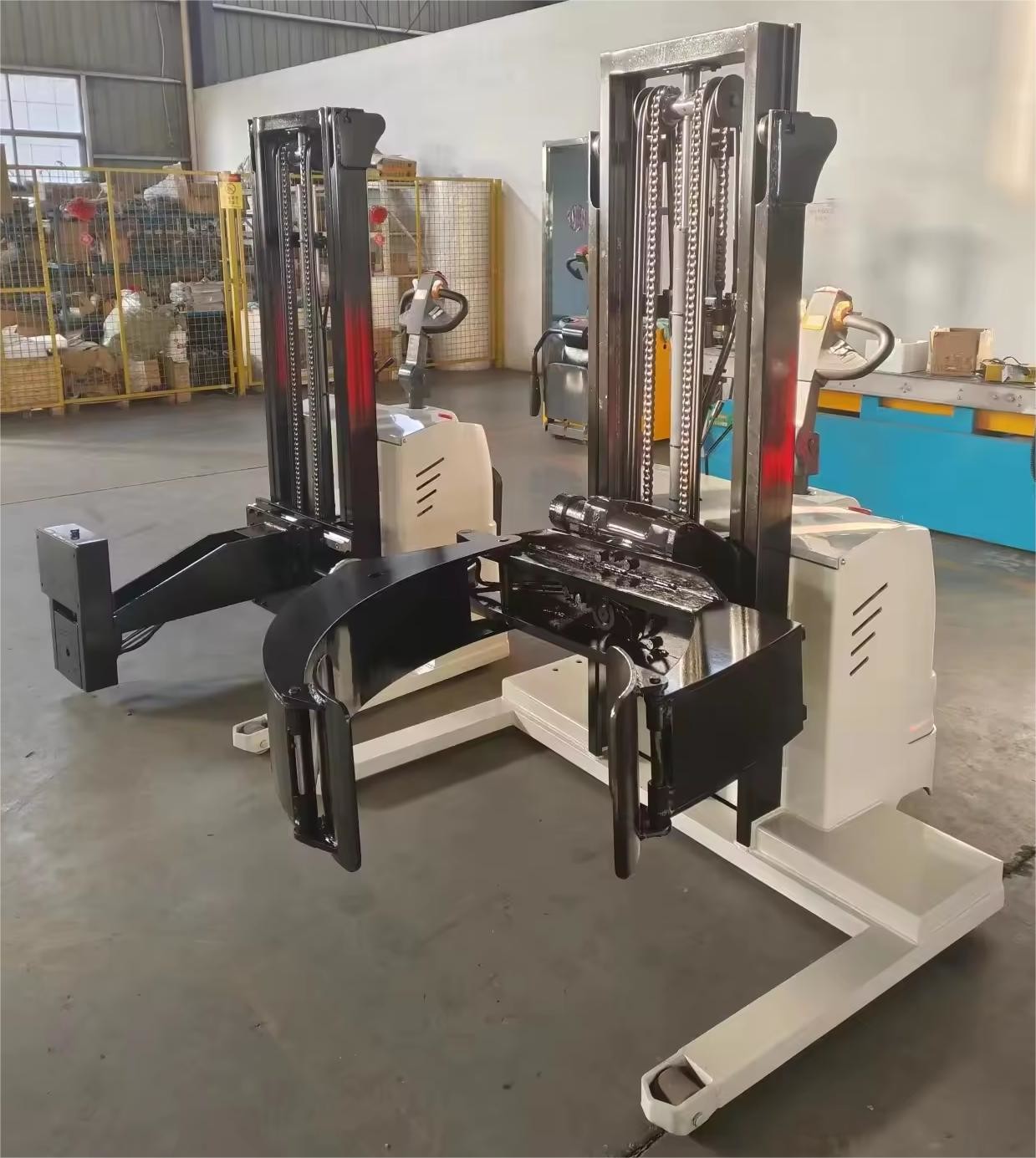

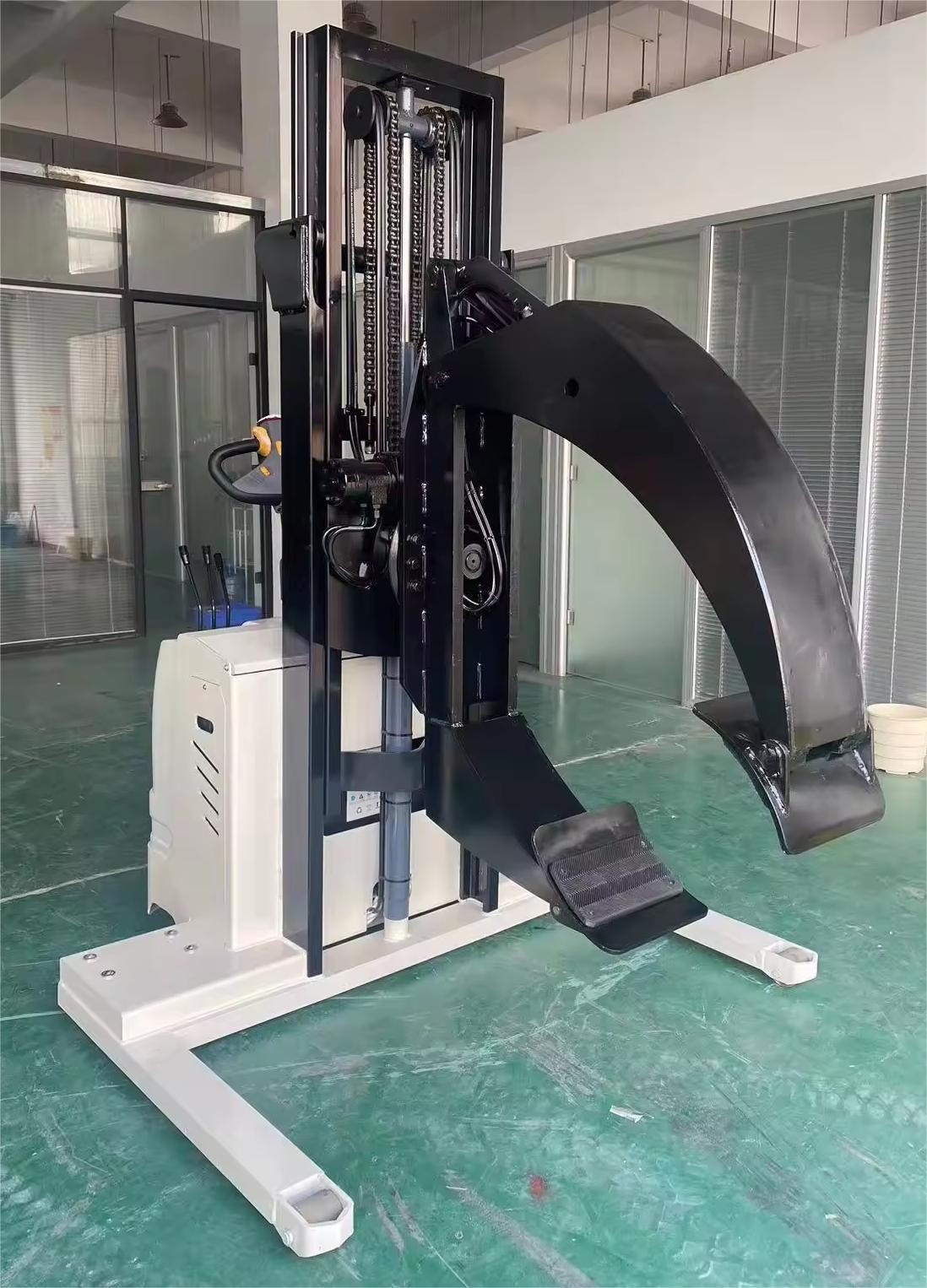

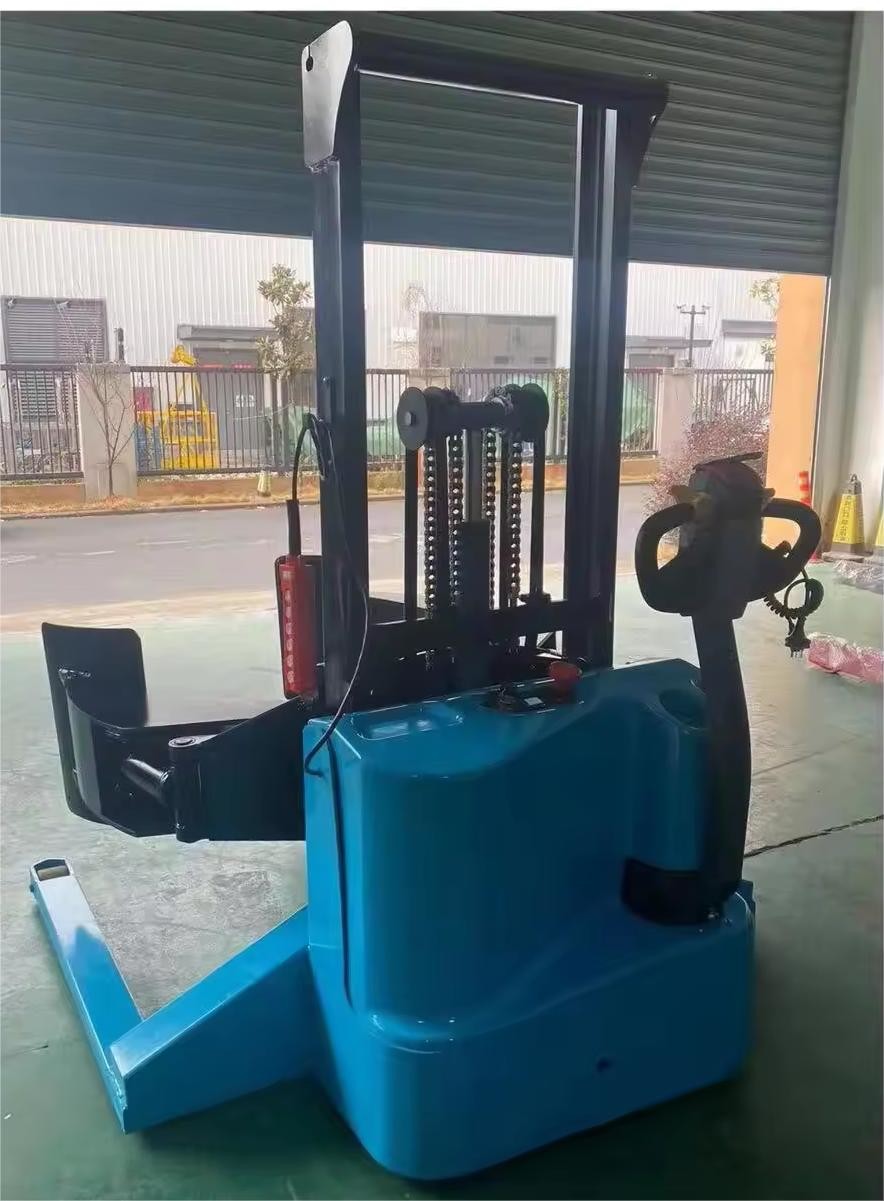

High Efficiency 500-1500 Kg Load Capacity Electric Stacker With Paper Roll Clamp
The Electric Stacker with Paper Roll Clamp is an exceptional solution for handling paper rolls with unmatched precision and efficiency. Boasting an electric motor, it offers smooth, quiet operation while eliminating harmful emissions. The specialized clamp securely grips rolls of various sizes, ensuring safe and damage-free handling. Not only is it environmentally friendly, but its precise control capabilities also allow for accurate positioning and stacking, reducing the risk of damage and maximizing workspace utilization. With its unique combination of features, this stacker truly stands out as a superior choice for paper roll handling.
1.It is suitable for holding goods, rotating, raising and placing.
2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.
3.It can rotate 180 degrees or 360 degrees electrically.
Rated load
|
kg
|
500/1000/1500
|
Max height of clamp
|
mm
|
1500/3000/customized
|
Min height of clamp
|
mm
|
100
|
Load center
|
mm
|
500
|
Operation way
|
|
Electric moving, lifting, rotating, graping
|
Turning radius
|
mm
|
1520
|
Aisle width
|
mm
|
2500
|
Length
|
mm
|
1900
|
Width
|
mm
|
810
|
Height
|
mm
|
1900
|
Mast
|
|
1-stage/2 stage
|
Adjustable extent of clamp
|
mm
|
700-1200
|
Rotation angle
|
°
|
90/180/360
|
Running speed (load/unload)
|
km/h
|
4.3/4.5
|
Hoisting speed(load/unload)
|
mm/s
|
110/160
|
Descent speed(load/unload)
|
mm/s
|
150/130
|
Climbing capability
(load/unload) |
%
|
5/8
|
Braking mode
|
|
Electronic brake
|
Tyres,material
|
|
Pu
|
Hydraulic motor
|
kw
|
2.5kw
|
Battery
|
v/ah
|
24/80Ah
|
Charger
|
v/a
|
24v/30
|
Weight
|
kg
|
1000
|
The significance of the use of forklift attachments:
1.High productivity, low operating costs.
Mechanized handling than the traditional manpower handling operations work short, while reducing the income and cost of labour, and improve the efficiency. In the same handling cycle, the number of forklift initiatives significantly lower, forklift corresponding tyres, transmission gears, fuel consumption, etc. are also reduced accordingly, the operating costs are also reduced accordingly.
2.Safe and reliable operation reduces the accident rate.
Forklift attachments designed and consumed by professional forklift attachments manufacturers for different industrial conditions are designed with safety devices, so that the goods clamped (or forked) are not easy to slide down in abnormal conditions, such as the pressure-retaining installation of clamping attachments (the oil pipe bursts when the goods are loaded, and the hydraulic fracture maintains the pressure so that the goods will not slide down); the end buffer installation of sidetransferring attachments, etc, which reduces the rate of accidents.
3.Little loss of goods.
With the help of the fixtures unique clamping, side shift, rotation and other functions, the goods can be more safely transported or stacked high or loading and unloading, and thus minimise the level of loss of goods. The use of attachments also reduces the frequency of pallet use (e.g. no pallet handling operations), its corresponding marketing and maintenance costs.
The above points are the benefits of using forklift attachments, so it is more appropriate to use forklift attachments if necessary.
