Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | CDDW |
Minimum Order Quantity: | 1unit |
Price: | To be negotiated |
Packaging Details: | iron pallet +plastic film |
Delivery Time: | 7work days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Product Name: | Electric Walkie Stacker | Load Capacity: | 1200/1600 |
---|---|---|---|
Lift Height: | 1600/200012500/3000 | Length: | 1770 |
Wdith: | 850 | Battery Capacity: | 2*7012*80 |
Battery Voltage: | DC24V | Power: | 0.75 |
Highlight: | Material Lifting walkie pallet stackers,1500kg walkie pallet stackers,2000kg walkie pallet stackers |
Professional material lifting equipment walkie full electric stacker 1500kg 2000kg electric lifting workshop trolley
Product Description

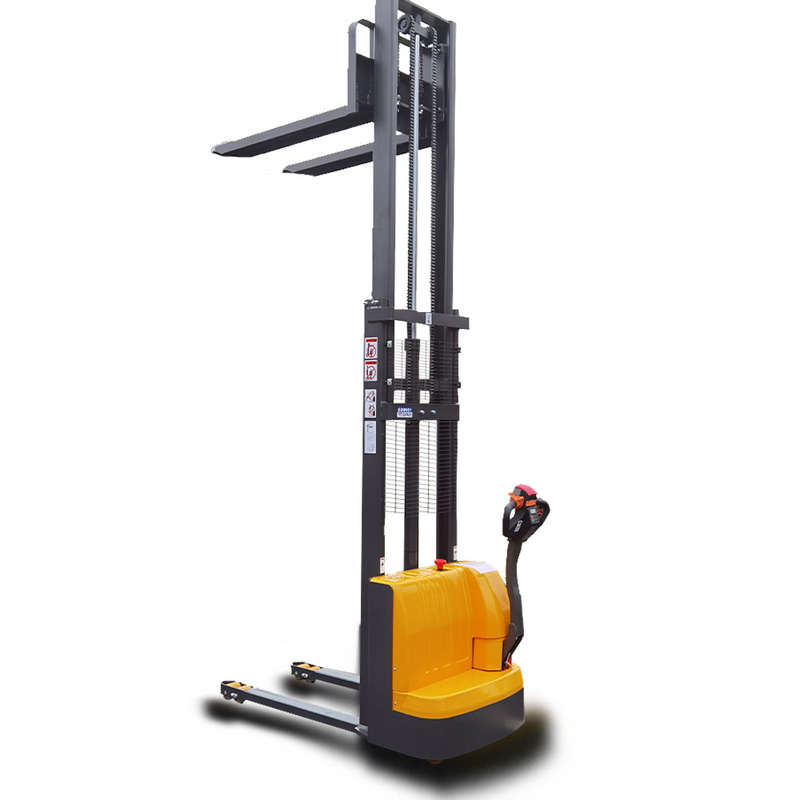

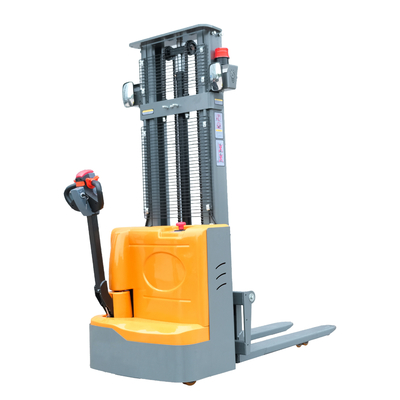

Electric Walkie Stacker Product Description
This is an efficient and convenient electric walkie talkie stacker designed specifically for the warehousing and logistics industry. By utilizing advanced electrical technology, it can effortlessly lift and move goods, reducing physical labor. The operation is simple, intuitive to use, and it also has stability and safety, ensuring the integrity of the goods during transportation. Whether in small warehouses or large logistics centers, this electric walkie talkie stacker is your ideal lifting and moving tool.
MODEL
|
|
|
CDDW12 CDDW16
|
|
Features
|
Drive system
|
|
|
Battery
|
Driving mode
|
|
|
Walkie
|
|
Load Capacity
|
Q
|
KG
|
1200/1600
|
|
Load Center
|
|
MM
|
500
|
|
Weight
|
Weight(With battery)
|
CDDW12
|
KG
|
470/485/505/520
|
CDDW16
|
495/510/532/553
|
|||
Wheels
|
Material
|
|
|
PU
|
Size
|
Lifting Height
|
H3
|
MM
|
1600/2000/2500/3000
|
Lowest Mast
|
H1
|
MM
|
2080/1580/1830/2080
|
|
Max.Height when operating
|
H4
|
MM
|
2080/2730/3230/3730
|
|
Min.Height of Fork
|
H13
|
MM
|
≤90
|
|
Length
|
L
|
MM
|
1770
|
|
Width
|
B
|
MM
|
850
|
|
Fork Length
|
L1
|
MM
|
1070
|
|
Wheelbase
|
Y
|
MM
|
1250
|
|
Fork Outside Width
|
B1
|
MM
|
680
|
|
Fork Inside Width
|
B2
|
MM
|
305
|
|
Min.Turning Radius
|
WA
|
MM
|
1390
|
|
parameter
|
Driving Speed(Empty/Full Load)
|
|
MM/S
|
5.0/5.0
|
Lifting Speed(Empty/Full Load)
|
|
MM/S
|
140/135
|
|
Descending Speed(Empty/Full Load)
|
|
MM/S
|
150/155
|
|
Max.Gradient(Empty/Full Load)
|
|
%
|
7/5
|
|
Brake
|
|
|
Electromagnetic
|
|
Motor
|
Driving Motor
|
|
KW
|
DC/0.75
|
Lifting Motor
|
|
KW
|
DC/2.2
|
|
Battery
|
Capacity
|
|
V/Ah
|
24*70/24*80Ah
|
Others
|
Noise level DIN 12053
|
|
DB
|
<70
|
