Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | CPD2030 |
Minimum Order Quantity: | 1unit |
Price: | $7100-$7300 /unit |
Packaging Details: | Iron pallet+plastic film |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Color: | Red/Customized | Product Name: | Electric Forklift |
---|---|---|---|
Load Center: | 500mm | Load Weight: | 1500-3000kg |
Load Height: | 3000mm | Tyres: | Solid Core Tire |
Feature: | High Efficiency | ||
Highlight: | 2 Ton counterbalanced forklift truck,4 Wheel counterbalanced forklift truck |

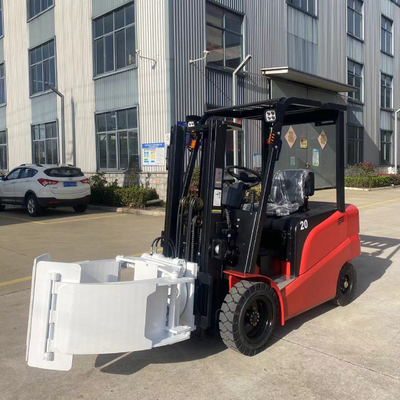

CPD 4-wheel forklift truck with clamps is suitable for large tonnage and high lift cargo storage applications. Rated load 1500Kg-3000kg, it is equipped with heavy duty forklift trucks, characterized by heavy load bearing and flexible direction, small turning radius, and can ignore the obstacles at the bottom of the shelves. It is suitable for the storage and transportation of goods in large three-dimensional factories, warehouses, supermarkets and wharves.
1.It is suitable for holding goods, rotating, raising and placing.
2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.
3.It can rotate 180 degrees or 360 degrees electrically.
4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.
Model
|
|
CPD1530
|
CPD2030
|
CPD3030
|
Load Capacity
|
kg
|
1500
|
2000
|
3000
|
Lifting Height
|
mm
|
3000
|
3000
|
3000
|
Load Center
|
mm
|
500
|
500
|
500
|
Fork size
|
mm
|
1070*100*40
|
1220*120*60
|
1220*120*60
|
Ground Clearance
|
mm
|
60/130
|
80/130
|
80/130
|
Tyre Type
|
|
solid Tyres
|
solid Tyres
|
solid Tyres
|
Control Way
|
|
Steering Wheel
|
Steering Wheel
|
Steering Wheel
|
Speed Regulation Way
|
|
Stepless Speed Regulation
|
Stepless Speed Regulation
|
Stepless Speed Regulation
|
Protection Guard Height
|
mm
|
2000
|
2100
|
2100
|
Mast Tilt Angle (Front/Rear)
|
(°)
|
3.0/6.0
|
3.0/6.0
|
3.0/6.0
|
The Min.Turning Radius
|
mm
|
1750
|
2100
|
2150
|
Driving Speed with Full Load
|
km/h
|
6
|
15
|
15
|
Maximum Gradient with full load
|
°
|
5°/8°
|
15
|
15
|
Battery
|
V/Ah
|
48/140
|
60/280
|
48/420
|
Driving Motor
|
kw
|
3
|
5
|
5
|
Lifting Motor
|
kw
|
3
|
5
|
5.5
|
Tyre Size (Front/ Rear)
|
mm
|
400/400
|
22x7-12/18x7-8
|
22x7-12/18x7-8
|
Overall dimensions(L*W*H)
|
mm
|
3000*1030*2100
|
3450*1100*2100
|
3750*1160*2100
|
Weight
|
kg
|
2200
|
3000
|
3800
|
Reference Working Time
|
h
|
4/6
|
4/6
|
4/6
|
Increased height each tonnage
|
mm
|
1600/2000/2500/3000/3500
|
||
Max height
|
mm
|
2100/1600/1850/2100/2350
|
Features of Electric 4-wheel forklift with clamps
Seated electric clamping and tipping forklift trucks are operated by power steering wheel steering and infinitely variable speed control system, it is equipped with high performance traction high capacity battery and its front and rear equipped with solid tires.
The advantages of battery operated ride-on stacker forklift truck with clamping are energy saving, small turning radius, light and easy to operate, which is in line with ergonomics theory and reliable. It plays the role of traveling smoothly, with strong climbing performance. It can adapt to the new century indoor and outdoor warehousing stacking, stacking height, loading and unloading, handling, stacking and other functions.
