Place of Origin: | China |
---|---|
Brand Name: | Taizhou KAD Electromechanical Co., Ltd. |
Certification: | CE |
Model Number: | DL060BJ-15 |
Minimum Order Quantity: | 1 Unit |
Price: | $4000-$5200 |
Packaging Details: | iron pallet and plastic firm |
Delivery Time: | 15 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50 Units |
Load Capacity: | 600kg | Lifting Height: | 1500kg |
---|---|---|---|
Rotation Angle: | 90/180/360 | Rotation Direction: | From Left To Right/ From Front To Back |
Adjustable Extent Of Clamp: | 700-1200mm | Braking Mode: | Wheel Brake |
Tyres,material: | Nylon | Weight: | 650kg |
Running Speed(load/unload): | Manual | Warranty: | 1 Year |
Highlight: | 500kg semi electric forklift,customized load capacity semi electric forklift |

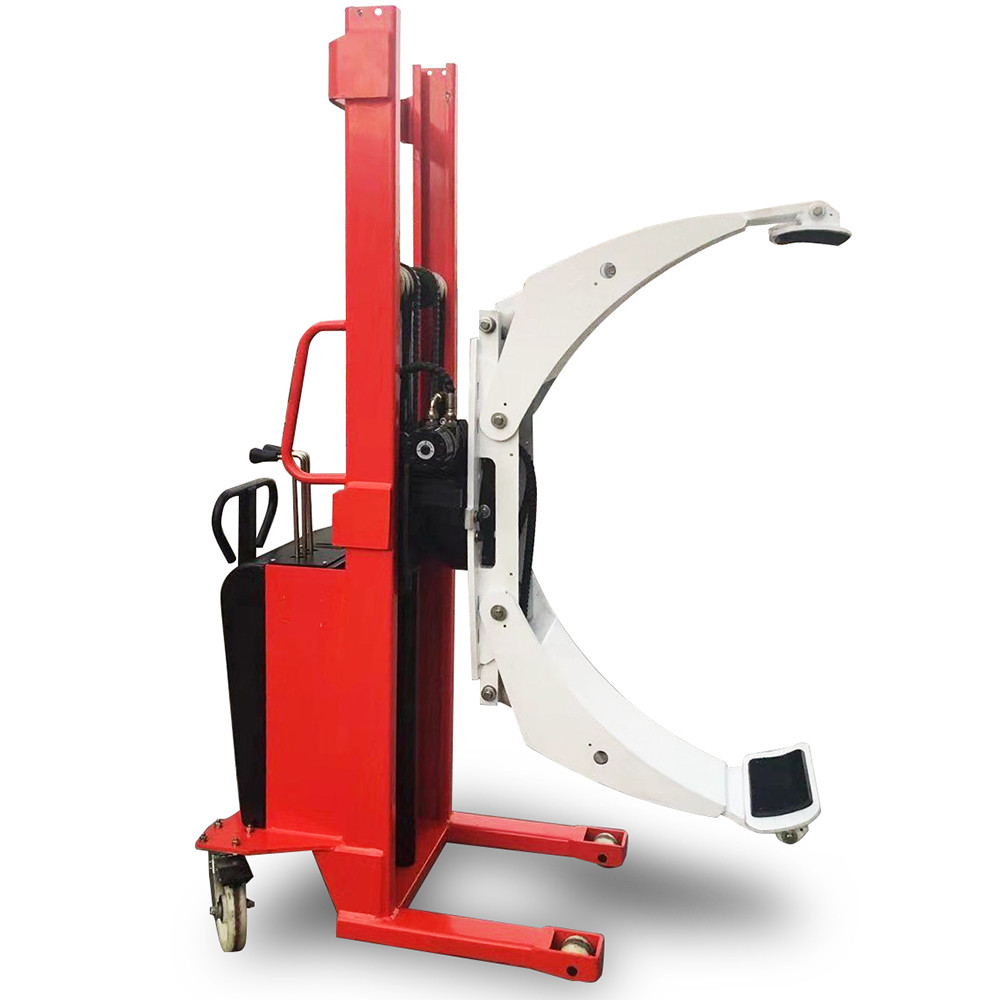

semi electric straddle portable loading and unloading forklift rotating clamp paper roll lifter stacker
semi electric straddle portable loading and unloading forklift rotating clamp paper roll lifter stacker
The semi electric paper roll stacker is mainly used in the paper processing, printing, packaging, and paper manufacturing industries for handling and stacking paper rolls. Its semi electric design provides both electric and manual features during the transportation process, making it flexible for different scenarios.The application of semi electric paper roll stacker not only improves the handling efficiency of paper products, but also helps to reduce labor costs, and can also play a role in narrow workplaces.
power source | Battery | |
rated load | kg | 250 |
load center | mm | 500 |
operation way | Standing operation,electric lifting,electric gripper,electric rotating,manual moving | |
turning radius | mm | 1050 |
aisle width | mm | 1900 |
length | mm | 1500 |
width | mm | 760 |
height | mm | 2100 |
mast | 1-stage mast | |
adjustable extent of clamp | mm | 200~1250 |
max height of clamps | mm | 1500 |
min height of clamps | mm | 200 |
rotation angle | ° | 90°(left and right) |
running speed(load/unload) | km/h | manual |
hoisting speed(load/unload) | mm/s | 110/160 |
descent speed(load/unload) | mm/s | 150/130 |
climbing capability | % | 3,5 |
braking mode | Wheel brake | |
tyres,material | Nylon | |
load wheel dimensions | mm | 85*80,2pcs |
steering wheel dimensions | mm | 180*50,2pcs |
hydraulic motor | kw | 12v/2.2kw |
battery | v/ah | 12/100 |
charger | v/a | 12/15, |
weight | kg | 450 |
