Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | KLD05-H |
Minimum Order Quantity: | 1 unit |
Price: | $1650-$1800 /unit |
Packaging Details: | Iron pallet+plastic film |
Delivery Time: | 20 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Type: | Powered Pallet Stacker | Load Center: | 500mm |
---|---|---|---|
Place Of Origin: | CN;JIA | Loading Capacity: | 500kg |
Color: | Customer Demanded | After-sales Service Provided: | 24h Online Support |
Lifting Height: | 1300mm | Warranty: | 1 Year |
Power: | 60ah | ||
Highlight: | 500kg semi electric forklift,Automatic Semi Electric Pallet Stacker,Semi Electric Stacker 500mm |

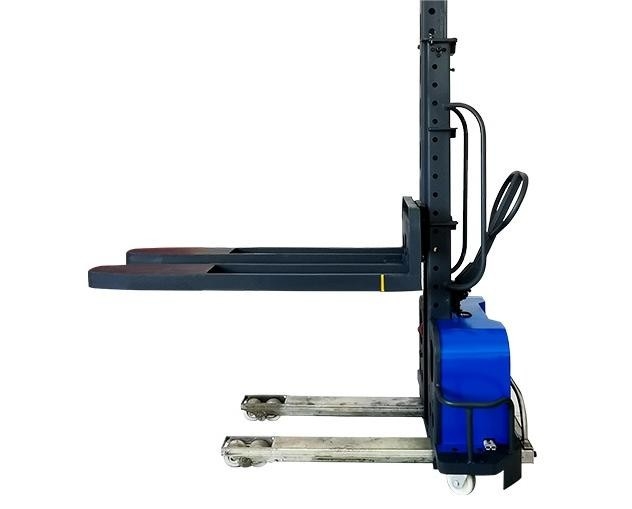

It is commonly used in warehouses, factories and supermarkets and is used in a wide range of logistics and warehousing applications. In small warehouses, production or retail environments, it is a self-elevating handling stacker that can be optimized for daily work. Because of its ability to travel with the vehicle, this stacker can be utilized to its advantage in limited spaces.
1. It can be boarded with the goods which is very convenient to make full use of its advantages.
2. Sealed cylinder
3. Reinforced forks make the carrying capacity stronger.
4. Using composite chain and thickened door frame.
5. Equipped with emergency stop switch button and maneuverable handle.
Load capacity
|
kg
|
500
|
Load center distance
|
mm
|
500
|
Weight with battery
|
kg
|
245
|
Lifting height
|
mm
|
1300
|
Lifting speed without load
|
mm/s
|
140
|
Lifting speed with load
|
mm/s
|
135
|
Lowering speed without load
|
mm/s
|
140
|
Lowering speed with load
|
mm/s
|
145
|
Overall Length
|
mm
|
1558
|
Overall width
|
mm
|
850
|
Gantry lowered to lowest overall height
|
mm
|
1630
|
Door frame up to maximum overall height
|
mm
|
2880
|
Wheelbase
|
mm
|
959
|
Fork length
|
mm
|
1160
|
Outer fork width
|
mm
|
535
|
Inside fork width
|
mm
|
225
|
Fork thickness
|
mm
|
60
|
Minimum ground clearance
|
mm
|
20
|
Fork height when lowered to the lowest level
|
mm
|
90
|
Minimum turning radius
|
mm
|
1000
|
Carrier Wheel
|
mm
|
80*50
|
Steering Wheel
|
mm
|
100*50
|
Lifting motor type
|
|
DC motor
|
Wattage
|
kw
|
0.8
|
Voltage
|
V
|
12.8
|
Capacity
|
AH
|
60
|
Support legs
Retractable, self-boarding
Cylinder
Double linkage cylinder assembly, locking and lifting alternating movement
Movable door
Swinging guide wheels under the movable door seat for smooth entry of the bodywork into the compartment
