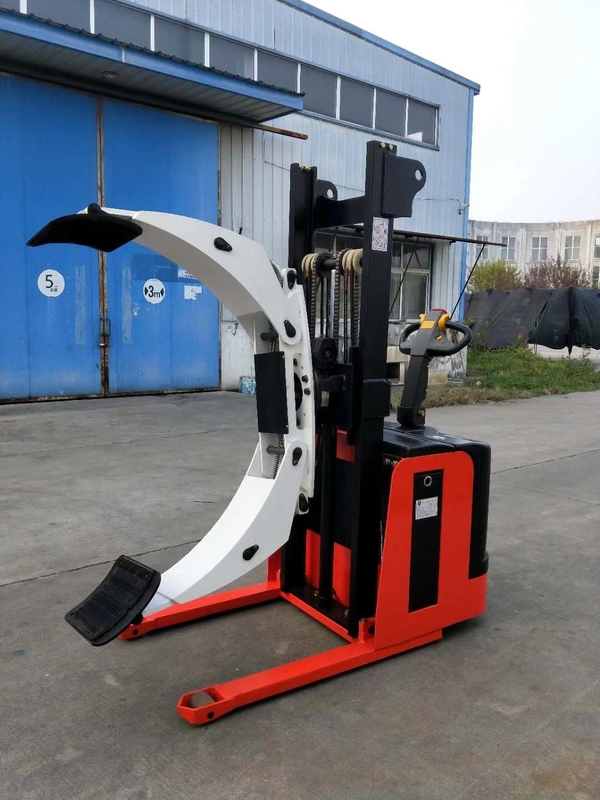

1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs

1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs
1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs
1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs
Basic Information
Place of Origin: China
Brand Name: KAD
Certification: CE
Model Number: RD070BJ-15
Minimum Order Quantity: 1 unit
Price: ＄7100-＄7500 /unit
Packaging Details: Iron pallet+plastic film
Delivery Time: 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50units/month
Get Best Price Contact Now
Color: Green/Red/Yellow/Customized Tire: PU Wheel
Load Center: 500mm Turning Radius: 1520
Load Weight: 1500kg Load Height: 3000mm
Battery Cpacity: 24V/210Ah Feature: High Efficiency
Highlight:

1300 mm electric straddle stacker

,

powered pallet stacker with straddle legs

,

electric straddle stacker

Product Application

 Electric paper roll trucks are widely used in paper industry, packaging industry, printing industry, textile industry handling, suitable for paper tube, carpet, fabric, cable, wood, steel coil, rope, tyre, film rolls or all industries round shape warehouse workshop goods handling, shifting, stacking, electric turning and other work. Holding clip type: cylindrical, oil drum type, shaped, etc., the rotation mode for 90 degrees, 180 degrees and 360 degrees. With the help of the unique clamping, side shifting and rotating functions of the attachments, the goods can be transported, stacked, loaded or unloaded in a safer way, thus minimising the loss of goods.

1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 01.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 11.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 2

Main Features

1.It is suitable for holding goods, rotating, raising and placing.

2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.

3.It can rotate 180 degrees or 360 degrees electrically.


4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.
 Specification



Rated load kg 500/1000/1500
Max height of clamp mm 1500/3000/customized
Min height of clamp mm 100
Load center mm 500
Operation way   Electric moving, lifting, rotating, graping
Turning radius mm 1520
Aisle width mm 2500
Length mm 1900
Width mm 810
Height mm 1900
Mast   1-stage/2 stage
Adjustable extent of clamp mm 700-1200
Rotation angle ° 90/180/360
Running speed (load/unload) km/h 4.3/4.5
Hoisting speed(load/unload) mm/s 110/160
Descent speed(load/unload) mm/s 150/130
Climbing capability
(load/unload)		 % 5/8
Braking mode   Electronic brake
Tyres,material   Pu
Hydraulic motor kw 2.5kw
Battery v/ah 24/210Ah
Charger v/a 24v/30
Weight kg 1000
 Detailed Images

 1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 31.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 4

1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 5

1.5 Ton Load Capacity Electric Clamp Stacker 400-1300 Mm With Straddle Legs 6
