Taizhou Kayond Machinery Co.,Ltd
| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | KAD |
| Certification: | CE |
| Model Number: | CBD15 |
| Minimum Order Quantity: | 1 unit |
| Price: | $780-$950 |
| Packaging Details: | Iron pallet |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000units/month |

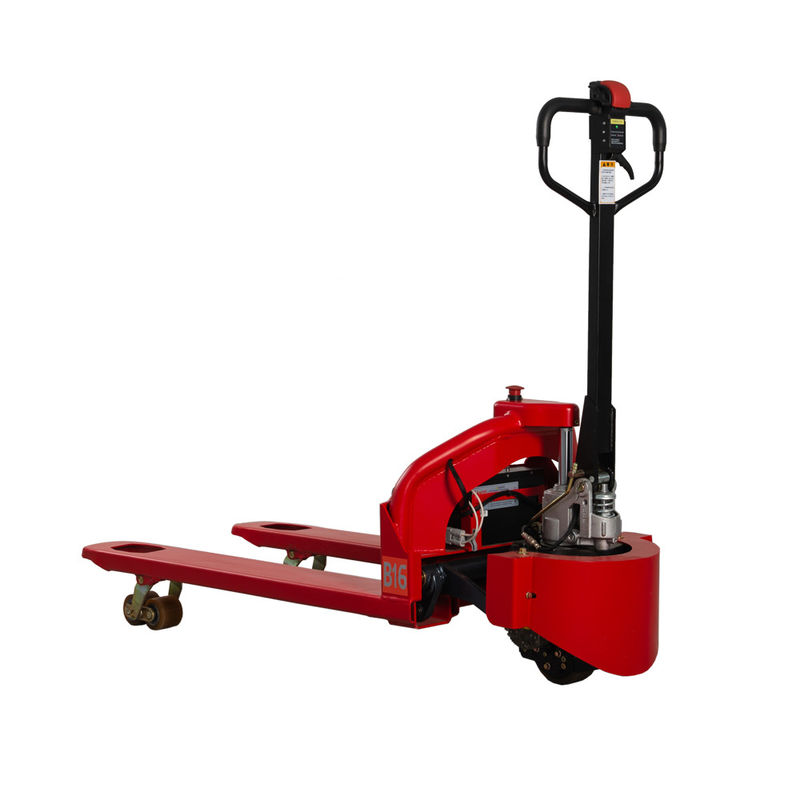

| Battery Type: | Lithium Battery | Product Name: | Electric Pallet Truck |
|---|---|---|---|
| Power Type: | Battery AC Motor | Rated Loading Capacity: | 1000kg/1500kg |
| Max. Lifting Height: | 200mm | Min. Lifting Height: | 85mm |
| Fork Width: | 550/685MM | Fork Length: | 1150/1220mm |
| Overall Dimensions: | 1588x685x1280mm | Handle: | 3-position Handle |
| Weight: | 510kg | Color: | Customer Demanded,Red,Yellow |
| Warranty: | 1 Year | After-sales Service Provided: | Online Support,Video Technical Support |
| Certification: | CE | ||
| Highlight: | 48V 15Ah low pallet jack,48V 15Ah power lift pallet jack,0.65kw low profile electric pallet jack |
||
1 electric lift, electric walking.
2 the operation is simple, comfortable
3 Adjustable pallet fork, high strength C steel door frame material
4 cylinder set explosion-proof valve
5 equipped with power display, low battery alarm and other devices
6 small turning radius,, low noise, high stability, low failure rate, low maintenance and use cost.
7 high-performance hydraulic pump station to meet the high frequency of operational needs
Semi-electric pallet truck, also known as industrial vehicles, are trackless vehicles for short-distance handling, loading and unloading and stacking of goods within enterprises. This kind of vehicle is suitable for loading, unloading and handling places such as stations, wharfs, airports, warehouses, construction sites and freight yards.
1. The cost of direct handling can be reduced by more than 25% compared with manual handling.
2. The unit of goods to be transported can be enlarged and the time to be transported can be saved.
3. Reduce the damage of moving articles and improve the success rate of products.
4. Increase the height of the stack and improve the utilization rate of the stack space.
5. Reduce labor intensity and improve working conditions.
6. Good maneuverability, diversified working performance, reduce other handling equipment, reduce the investment of the entire handling facilities.
|
Min.Fork height
|
mm
|
85
|
|
Max.Fork Height
|
mm
|
195
|
|
Width of fork
|
mm
|
685
|
|
Fork Length
|
mm
|
1150
|
|
Fork Width
|
mm
|
160
|
|
Total Length
|
mm
|
1605
|
|
Total Width
|
mm
|
685
|
|
Total Height
|
mm
|
1130
|
|
Min.Turing Radius
|
mm
|
1460
|
|
Driving Motor
|
KW
|
DC/0.65
|
|
Battery Capacity
|
V/Ah
|
48V/15Ah
|
|
Brake
|
|
Mechanical braking
|
