Taizhou Kayond Machinery Co.,Ltd
| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | KAD |
| Certification: | CE |
| Model Number: | HPT30N |
| Minimum Order Quantity: | 6units |
| Price: | $110-$135/unit |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000units/month |
| After-sales Service Provided: | Video Technical Support | Color: | Yellow,Red,Blue,customized,All Accepted |
|---|---|---|---|
| Max. Lifting Height: | 185/195mm | Model: | HPT30N |
| Condition: | New | Lift Drive / Actuation: | Hydraulic Pallet Truck |
| Rated Loading Capacity: | 3000kg,2000/2500KG | Min. Lifting Height: | 85mm |
| Fork Length: | 1150/1220mm | Fork Width: | 550/685MM |
| Weight: | 75kg | Certification: | CE |
| Warranty: | 1 Year | ||
| High Light: | CE 5 tonne pallet truck,5tonne all terrain pallet truck,5mm braked pallet truck |
||
1. The Pallet Truck is developed for industrial applications and is protected against water, dust and shocks.
2. The exchangeable battery module provides for 35 hours of use, and makes it possible to use the hand pallet truck without weighing when charging the battery.
3. Quick exchange battery mount (extra battery can be purchased).
4. Load cells, cabling IP67 and indicator IP65 protection.
5. 10 greasable bushings ensure a long service life.

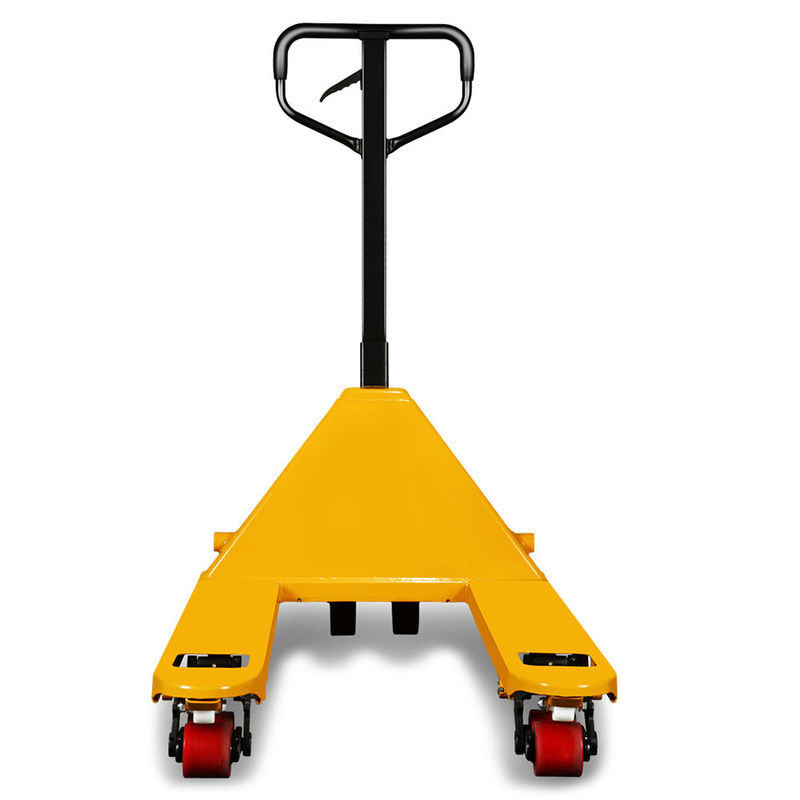

Hand pallet truck is the most convenient, most effective and common loading and unloading tool in pallet transportation tools. It is widely used in logistics, warehouse, factory and so on.
1. Forks are processed with whole press forming technology and coated with powder painting, torsion and fading-resistant.
2. Excellent whole casting hydraulic pump and welded pump for your choice, robust and durable, with fine control of lowering speed and overload valve. Integrated pump is easy to maintain.
3. The wheel material has Nylon, PU, Rubber, Iron to choose from. The guide wheel is optional to ensure easier operation.
4. Ergonomically designed handle with comfortable rubber grip allows the optimized safety.
1.Guide wheels
2.Full reinforcement
3.Customized forks for rollers
|
Item/Model |
Unit |
|
||
|
Capacity |
Kg |
2500 |
3000 |
5000 |
|
Min.fork height |
Mm |
80 |
100 |
|
|
Max fork height |
Mm |
190 |
210 |
|
|
Steering wheel |
Mm |
Nylon/PU |
180*60 |
|
|
Load roller |
Mm |
Nylon/PU |
88*106 |
|
|
Each fork width |
Mm |
150 |
180 |
|
|
Each fork thickness |
Mm |
3 |
4 |
5 |
|
Width |
Mm |
550/685 |
700 |
|
|
Length |
Mm |
1150/1220 |
1310 |
|
|
Weight |
kg |
68 |
75 |
200 |
