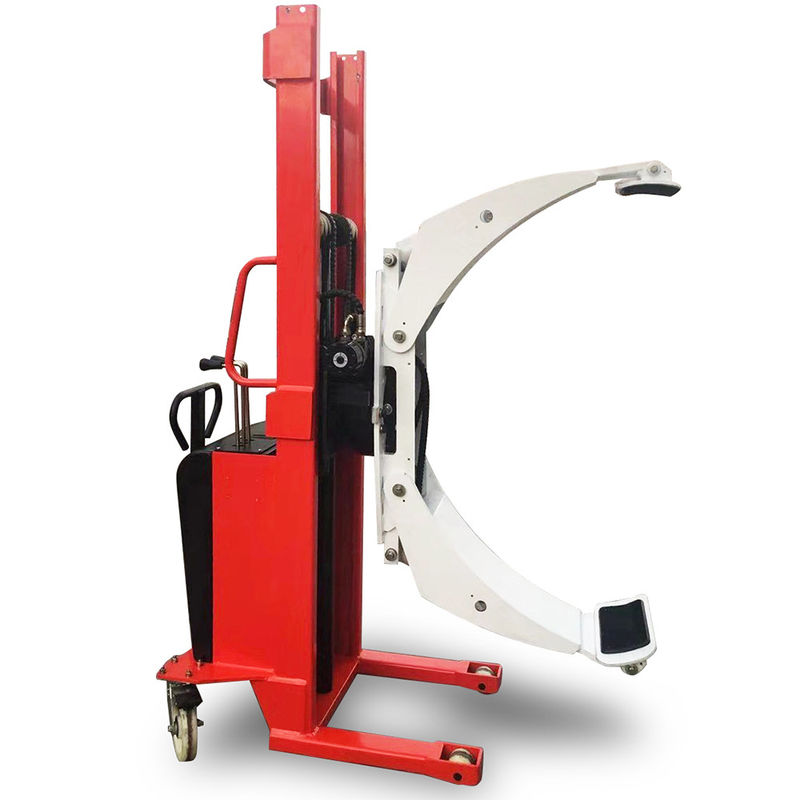

3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts

3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts
3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts 3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts 3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts 3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts 3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts 3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts 3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts 3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts 3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts 3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts 3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts 3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts
Basic Information
Place of Origin: jiangsu,China
Brand Name: KAD
Certification: CE
Model Number: D350BJ-17
Minimum Order Quantity: 1 unit
Price: $4500-$6000/unit
Packaging Details: Iron Pallet
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 300units/month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Power Source: Battery Rated Load: 300-500kg
Max.Load Height: 1000mm-3500mm Rotation Angle: 90/180/360 Degree
Clamp Range: 500-1500mm/customize Load Center: 600mm
Warranty: 1 Year After Sale Service: Free Parts; Video And Online Support
High Light:

400Kg paper roll handling equipment

,

400Kg paper roll handling carts

,

3500mm paper roll handling equipment

400Kg Standing Operated Battery Electric Paper Reel Stacker Fork lift

1: Use formed C steel mast, high bending strength;

2: Wearing-resistant nylon wheel with brake, ensure no sliding after stop the machine;

3: Wide view mast equipped with security fence, protect the operator's hands won't get squeezed;

4: Widely used in paper fabrication ,packaging, printing and textiles industry etc.;

5: Lifting motor Strong, small size, low noise.

6: The chain bearing performance good



Application

When handling, lifting and overturning heavy-duty reel, the roll clamp turnover car is your best choice! The car is compact in structure, flexible in operation and provides a humanized working environment for customers.

Features

Efficient and flexible
Rated load 500kg
It can be used to handle the reel placed vertically on the ground or on the pallet, or the reel placed vertically or horizontally without touching the ground
Diameter range of transportable reel: Ø 120mm to Ø 1500mm
Suitable for handling soft, smooth or hard rolls
Wide leg version available
Security
Any wrong operation mode cannot open the grab
The gripper can only be released when the reel is placed on the ground or on a tray
Use the boom grab to grab the reel
The contact surface of the gripper is covered with a rubber layer, so that the friction force can be maximized and the reel can not be scratched
In the electric version of the car, only when the reel is lifted to 825mm or more can it be turned over, so that the boom gripper will not touch the ground or fork feet
Durable
Strong construction
Long service life
Low maintenance cost

Parameters

Power source

Battery
Rated load
kg
250
Load center
mm
500
Operation way

Standing operation,electric lifting,electric gripper,electric rotating,manual moving
Turning radius
mm
1050
Aisle width
mm
1900
Length
mm
1500
Width
mm
760
Height
mm
2100
Mast

1-stage mast
Adjustable extent of clamp
mm
200~1250
Max height of forks
mm
1500
Min height of forks
mm
200
Rotation angle
°
90°(left and right)
Running speed(load/unload)
km/h
manual
Hoisting speed(load/unload)
mm/s
110/160
Descent speed(load/unload)
mm/s
150/130
Climbing capability
%
3,5
Braking mode

Wheel brake
Tyres,material

Nylon
Load wheel dimensions
mm
85*80,2pcs
Steering wheel dimensions
mm
180*50,2pcs
Hydraulic motor
kw
12v/2.2kw
Battery
v/ah
12/100
Charger
v/a
12/15,
Weight
kg
450



3500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts 03500mm Battery Powered 400Kg Paper Roll Handling Equipment Carts 1
