Taizhou Kayond Machinery Co.,Ltd
| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | KAYOND |
| Certification: | CE |
| Model Number: | CDS2030 |
| Minimum Order Quantity: | 1unit |
| Price: | FCA$900-$1300 |
| Packaging Details: | Exporting package |
| Delivery Time: | 3 days for sample;10 days for 50units |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000units/month |
| Power Type: | Battery | Electric Controller: | Curtis |
|---|---|---|---|
| Max. Lifting Height: | 1000mm-3500mm | Fork Width: | 680mm/550mm/customized |
| Min. Lifting Height: | 90mm | Battery Capacity: | 12V/120Ah |
| Weight: | 380kg | After-sales Service Provided: | Online Support,Video Technical Support |
| Warranty: | 1 Year | ||
| Highlight: | 2T KAD hydraulic stacker,steel mast KAD power stacker lift,2.0M hydraulic pallet lift |
||

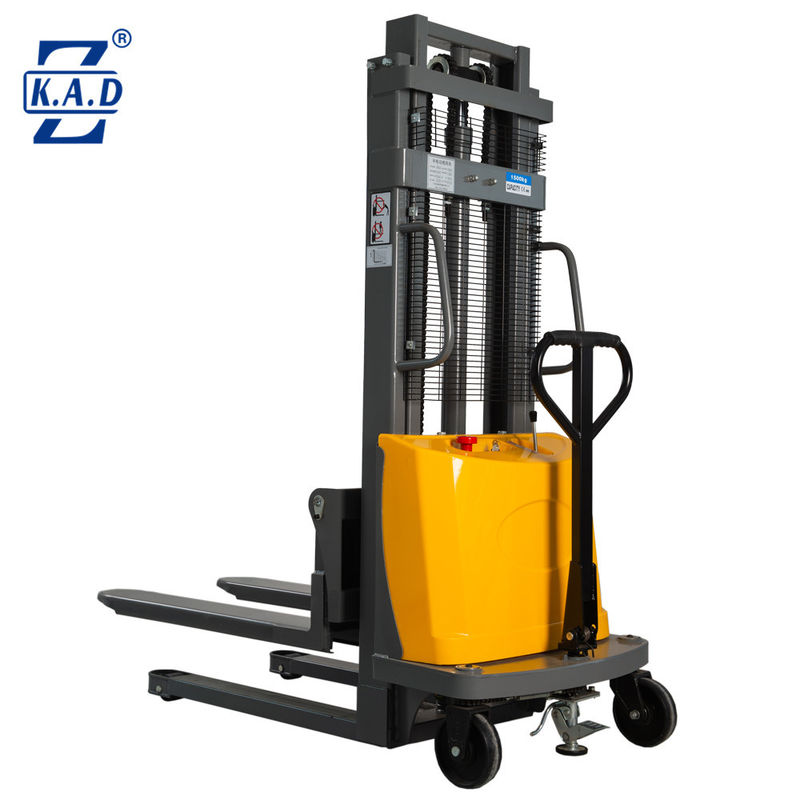

Capacity 1500 kgs max, Lift height 2000mm
The perfect choice for high productivity requirements in confined spaces
Service-friendly assembly of hydraulics, electrics and batteries.
Large battery, 12V/120ah, for many working hours per charge.
Fast Llifting/fast lowering of loads
Ergonomic handles enables easy maneuvering.
It is used for loading and unloading pallet goods in factory workshop, enterprise warehouse, logistics and distribution center, general cabin, carriage and container.
With explosion-proof valve at the bottom of cylinder, even if the pipe burst, the mast will not rapidly decline.
Heavy duty steel mast is reliable and hard to bend over.
The foot brake is easy to operate and maintain.
The width of fork can be adjusted easily for its Sleeve design.
Semi electric pallet stacker is an electric lifting pallet stacker. It uses battery as power source and DC motor as power. It drives oil pump to supply pressure oil to lifting cylinder to make oil cylinder move up and down to lift forks and goods. Small body, suitable for narrow space, electric lifting goods, can save labor, improve the efficiency of warehousing.Compact structure, small size, light weight, convenient maintenance, flexible operation.
Optional Configuration
Customized length of fork and width of legs.
Forged fork.
Adjustable fixed leg
| Model | CDS10 CDS15 CDS20 | ||
|
Features |
Drive system | Battery | |
| Driving mode | Standing | ||
| Load Capacity | Q(kg) | 1000/1500/2000 | |
| Load Center | C(mm) | 500 | |
| Weight | Weight(With battery) | Kg | 345/390/410/430 |
| Wheels | Material | PU/NYLON | |
|
Size |
Lifting Height | H3(mm) | 1600/2000/2500/3000/3500 |
| Lowest Mast | H1(mm) | 2090/1590/1840/2090/2340 | |
|
Max.Height when operating |
H4(mm) | 2090/2740/3240/3740/4240 | |
| Min.Height of Fork | S(mm) | 85 | |
| Length | L(mm) | 1740 | |
| Width | B(mm) | 770 | |
| Fork Length | L1(mm) | 1070 | |
| Fork Outside Width | B1(mm) | 550/680 | |
| Fork Inside Width | B2(mm) | 305 | |
| Min.Turning Radius | Wa(mm) | 1500 | |
| Wheelbase | Y(mm) | 1420 | |
| Motor | Lifting Motor | KW | DC/2.2 |
| Battery | Capacity | V/Ah | 12/120 |
