Taizhou Kayond Machinery Co.,Ltd
| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | KAD |
| Certification: | CE |
| Model Number: | HPT50 |
| Minimum Order Quantity: | 6units |
| Price: | $200-$350/unit |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000units/month |
| Model: | SPT10 | Condition: | New |
|---|---|---|---|
| Lift Drive / Actuation: | Hydraulic Pallet Truck | Rated Loading Capacity: | 1000/1500/1500kg |
| Min. Lifting Height: | 85mm | Max. Lifting Height: | 800mm |
| Fork Length: | 1150/1220mm | Fork Width: | 550/685MM |
| Weight: | 120kg | Color: | Yellow,Red,Blue,customized,All Accepted |
| Certification: | CE | After-sales Service Provided: | Video Technical Support |
| Warranty: | 1 Year | ||

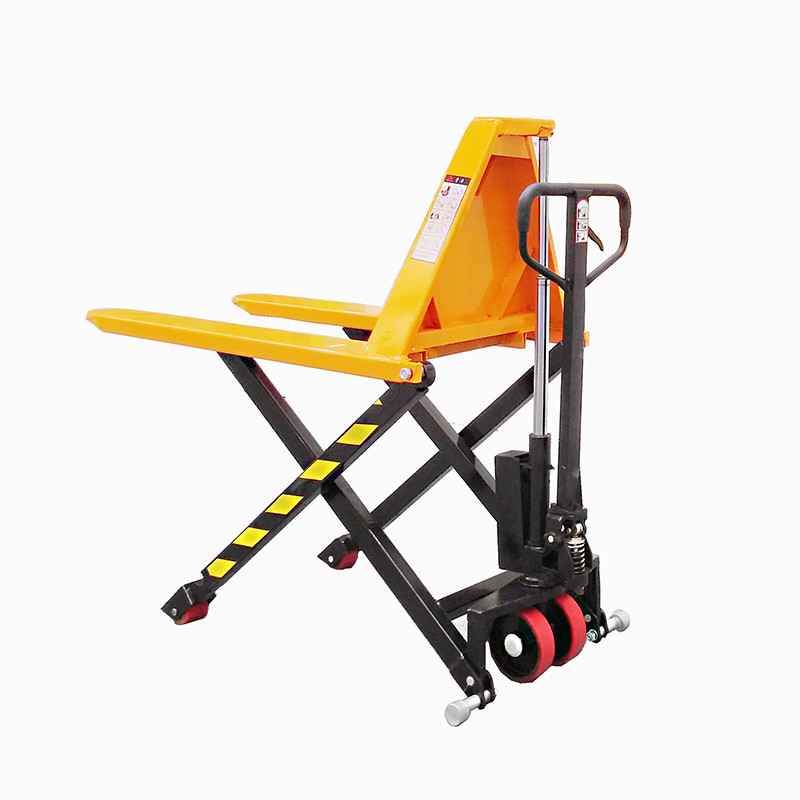

| High Light: | 800mm scissor lift pallet jack,800mm scissor lift hand pallet truck,KAD scissor lift pallet truck |
||
■ Combination of handling and work platform.
■ Dual piston rod structure with lower frame height.
■ Long time overload is not easy to deformation
■ Pump body overload protection down smoothly use safety
■ Frame design strong capacity is strong
■ Steady lifting falling ,speed can be control
Intergral casting oil pump,with good seal performance,easy lifting and easier to use
| Item | SPT 1.0T | SPT 1.5T | SPT 2.0T | |
| Capacity Q | (kg) | 1000 | 1500 | 2000 |
| Width overall forks B | (mm) | 540 / 680 | 540 / 680 | 540 / 680 |
| Fork length L | (mm) | 1150 | 1150 | 1150 |
| Min.fork height H | (mm) | 85 | 85 | 85 |
| Max.fork height H1 | (mm) | 800 | 800 | 800 |
| Steering wheel | (mm) | 78X60 | 78X60 | 78X60 |
| Load roller | (mm) | 180X50 | 180X50 | 180X50 |
| Net weight | ||||
