Taizhou Kayond Machinery Co.,Ltd
| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | KAD |
| Certification: | CE |
| Model Number: | MS1016 |
| Minimum Order Quantity: | 1 unit |
| Price: | $400-600/unit |
| Packaging Details: | Plastic film and cardboard |
| Delivery Time: | 3days for sample;10 days for 100units. |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100000units/month |
| Model: | MS1030 | Type: | Manual Forklift |
|---|---|---|---|
| Load Weight: | 1000/2000kg | Max. Lifting Height: | 3000mm |
| Min. Lifting Height: | 85mm | Fork Width: | 280-685/550mm |
| Fork Length: | 900/1100mm/customize | Load Center: | 600mm |
| Mast: | 1 Stage/2 Stage | Warranty: | 1 Year |
| After-sales Service Provided: | Video Technical Support,Online Support | ||
| High Light: | 1Ton manual forklift stacker,3m Double Mast manual stacker,280mm manual forklift trolley |
||

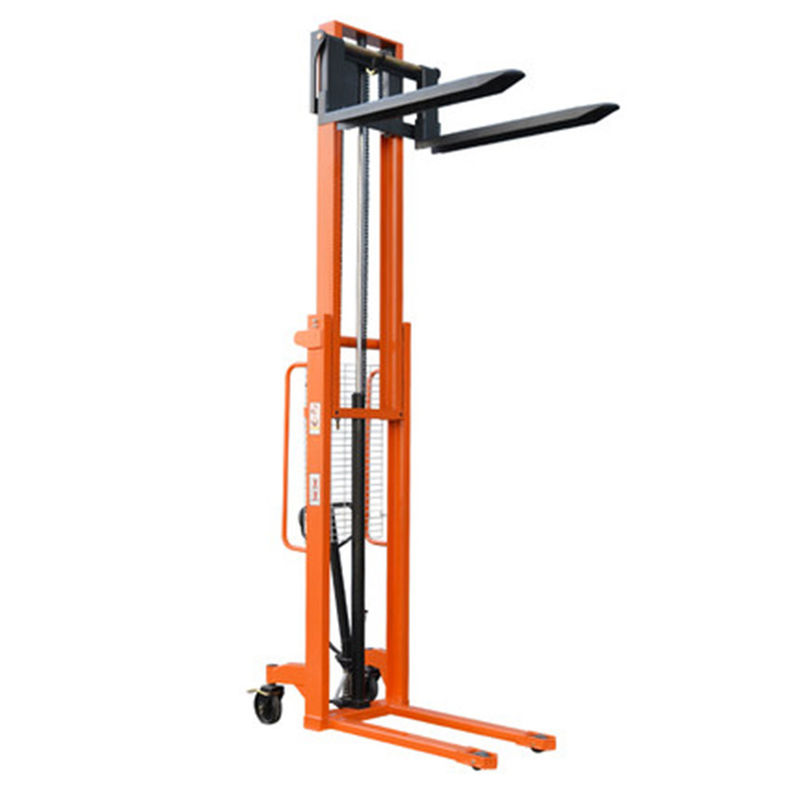

Hydraulic stacker, also known as hydraulic forklift, is a low-cost, non-polluting, non-powered loading and unloading product. It is compact, flexible and easy to operate. It is widely used in factories, workshops, warehouses, stations and other places.
Manual hydraulic stacker is a kind of pollution-free and non power loading and unloading product. It has the characteristics of compact structure, flexible transportation, simple operation and small turning radius. If combined with pallets, containers and so on, the unit transportation can be realized, which can effectively reduce the collision, scratch and stacking area of parts, reduce the handling workload and improve the handling efficiency.
| Specification | |||||
| Load Capacity | Kg | 1000 | 1500 | 2000 | 3000 |
| Max Lifting Height | mm | 1600 or customized height | |||
| Lowered fork Height | mm | 100 | 100 | 100 | 100 |
| Fork Adiustable Width | mm | 200-580 | 240-580 | 240-580 | 280-580 |
| Leg Inner Width | mm | 580 | 580 | 580 | 580 |
| Leg Overall Width | mm | 730 | 730 | 730 | 730 |
| Fork Length | mm | 900 | 900 | 900 | 900 |
| Leg Ground Clearance | mm | 90 | 90 | 90 | 90 |
| Fork Ground Clearance | mm | 60 | 60 | 60 | 60 |
| Lifting Speed | mm/s | 20 | 20 | 20 | 20 |
| Descent Speed | mm/s | adjustable | |||
| Turning Radius | mm | ≤1380 | ≤1380 | ≤1380 | ≤1380 |
| Overall Length | mm | 1400 | 1400 | 1400 | 1400 |
| Overall Width | mm | 730 | 730 | 730 | 730 |
| Overall Height | mm | 1940 | 1940 | 1940 | 1940 |
| Fork Width | mm | 10 | 12 | 12 | 14/46 |
| Material | — | 10# channel steel | 12# channel steel | 12# Joist steel | 14/16# Joist steel |
| Net Weight | Kg | 145 | 160 | 175 | 215/230 |
| Notes | — | The leg adopts 70*70 square tube material | |||
1. The portal frame of manual hydraulic stacker is made of heavy "C" steel column steel, which is cold formed. More solid, more secure, flexible to move, easy to operate and labor-saving;
2. The oil cylinder adopts high precision grinding pipe, imported oil seal and integrated valve core, which is convenient for disassembly and maintenance; the pressure relief mode adopts foot stepping type, with stable lifting speed and greatly improved safety;
3. The advanced spray process improves the appearance of the product and increases the durability of the manual hydraulic stacker.
4. Manual hydraulic stacker is a kind of pollution-free manual hydraulic stacker, which has the characteristics of smart transportation, flexible operation and small turning radius.
5. Combined with pallets, containers, etc., the unit transportation can be realized, which not only reduces the collision and scratches, but also reduces the workload and stacking area, and greatly improves the work efficiency.
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet.
We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
