Taizhou Kayond Machinery Co.,Ltd
| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | KAD |
| Certification: | CE |
| Model Number: | KAD12-DCW |
| Minimum Order Quantity: | 1 unit |
| Price: | $450-$600 |
| Packaging Details: | plywood case |
| Delivery Time: | In stock |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000units/month |
| Voltage: | 24v | Power: | 1.2kw |
|---|---|---|---|
| Rated Speed: | 2600r/min | Wheel Size: | 250*80mm |
| Max.wheel Load: | 1000kg | Motor: | DC Sepex/series Motor |
| Highlight: | 1.2kw dc sepex drive wheel,dc sepex motor drive wheel,1.2kw stacker sepex wheel |
||

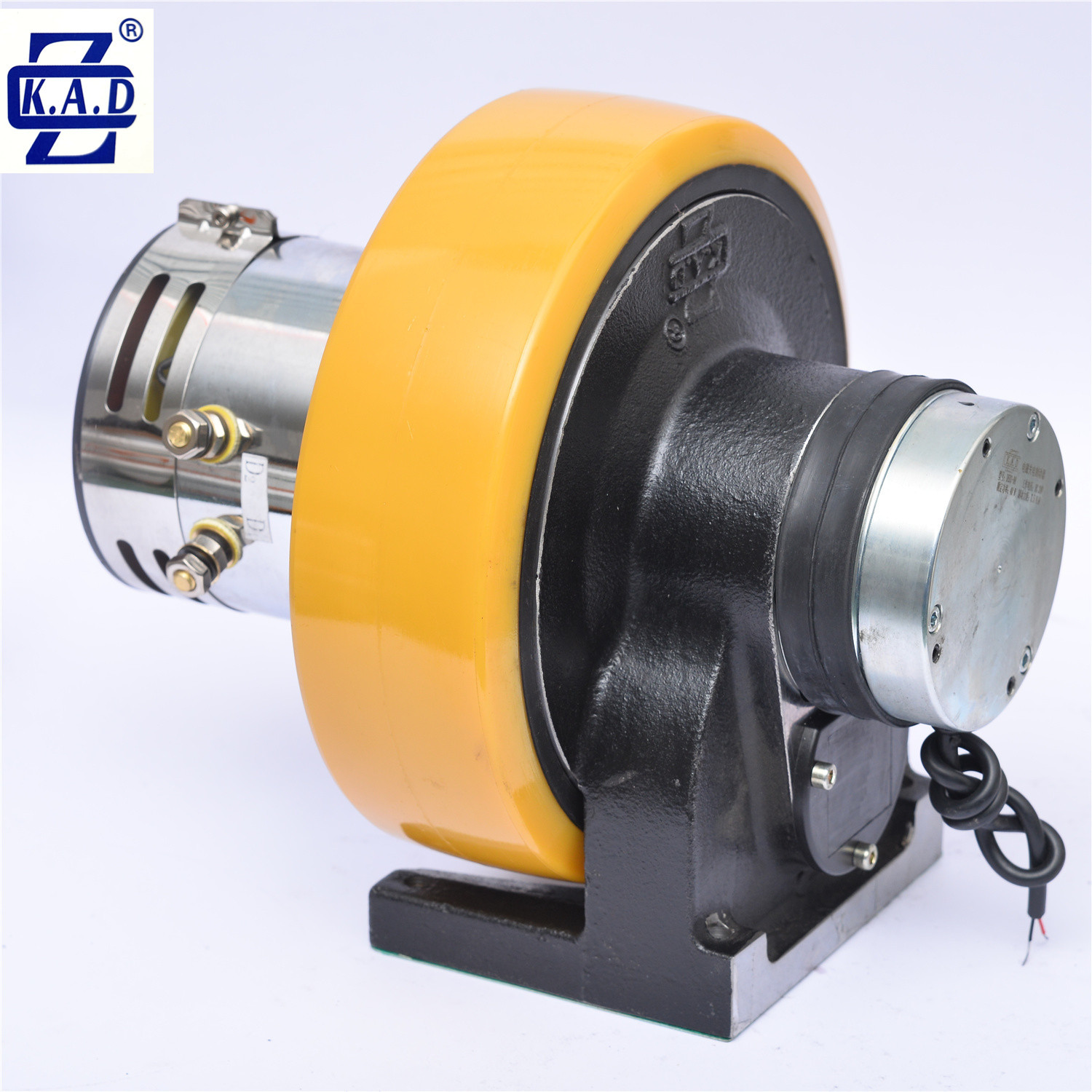

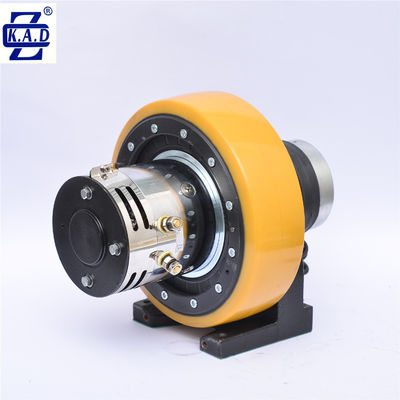

1. The horizontal driving wheel is a multi-functional driving device which integrates power, transmission mechanism and walking mechanism.
2. Its structure is compact and easy to install. DC horizontal drive wheel assembly has the characteristics of smooth transmission, small turning radius, small overall height and low noise.
3. It is widely used in the driving of various small electric tractors, small electric pallets, economic electric forklifts and other electric vehicles.
4. Electric braking makes braking more reliable and safer. With polyurethane or rubber wheels, the grip force is stronger.
| model | KAD12-DCW | |
| motor-rated power | kw | 1.2 |
| battery voltage | v | 24 |
| motor current | A | 62 |
| motor rated speed | r/min | 2600 |
| max.wheel speed | r/min | 100 |
| speed ratio | i | 1:32 |
| Max turning radius | mm | 165 |
| Max.wheel load | kg | 1000 |
| wheel diameter | mm | 250*80 |
| brake torque | N*m |
8 |
