Taizhou Kayond Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | KAD |
| Certification: | CE |
| Model Number: | BM050CG-16 |
| Minimum Order Quantity: | 1 |
| Price: | US$8000 |
| Packaging Details: | Iron pallet |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000units/year |
| Load Capacity: | 100-1500kg | Load Height: | 1000-4500mm |
|---|---|---|---|
| Applicated Film Diameter: | 500-1500mm | Load Center: | 500mm |
| Operation Way: | Electric Moving,lifting,sealing | Turning Radius: | 1520mm |
| Aisle Width: | 1900mm | Lenth: | 1900mm |
| Width: | 1460mm | Height: | 2080mm |
| Running Speed(load/unload): | 4.3/4.5km/h | Hoisting Speed(load/unload): | 110/160mm/s |
| Descent Speed(load/unload): | 150/130mm/s | Climbing Capability (load/unload): | 5/8% |
| Braking Mode: | Electronic Brake | Tyres,material: | Pu |
| Hydraulic Motor: | 2.5kw | Battery: | 24V/210A |
| Weight: | 1400-1600kg |
The utility model relates to a tension structure applied to a film winding machine, which includes a fixed shaft, a tension component set on the fixed shaft and a lock nut installed on the fixed shaft. The utility model has the advantages of simple operation, compact structure, fast tightening, effectively improving the tension force and maintaining large torque, helping to improve the stability of the film sealing or tearing, improving the working efficiency, and being able to adapt to the film winding with different inner diameters.

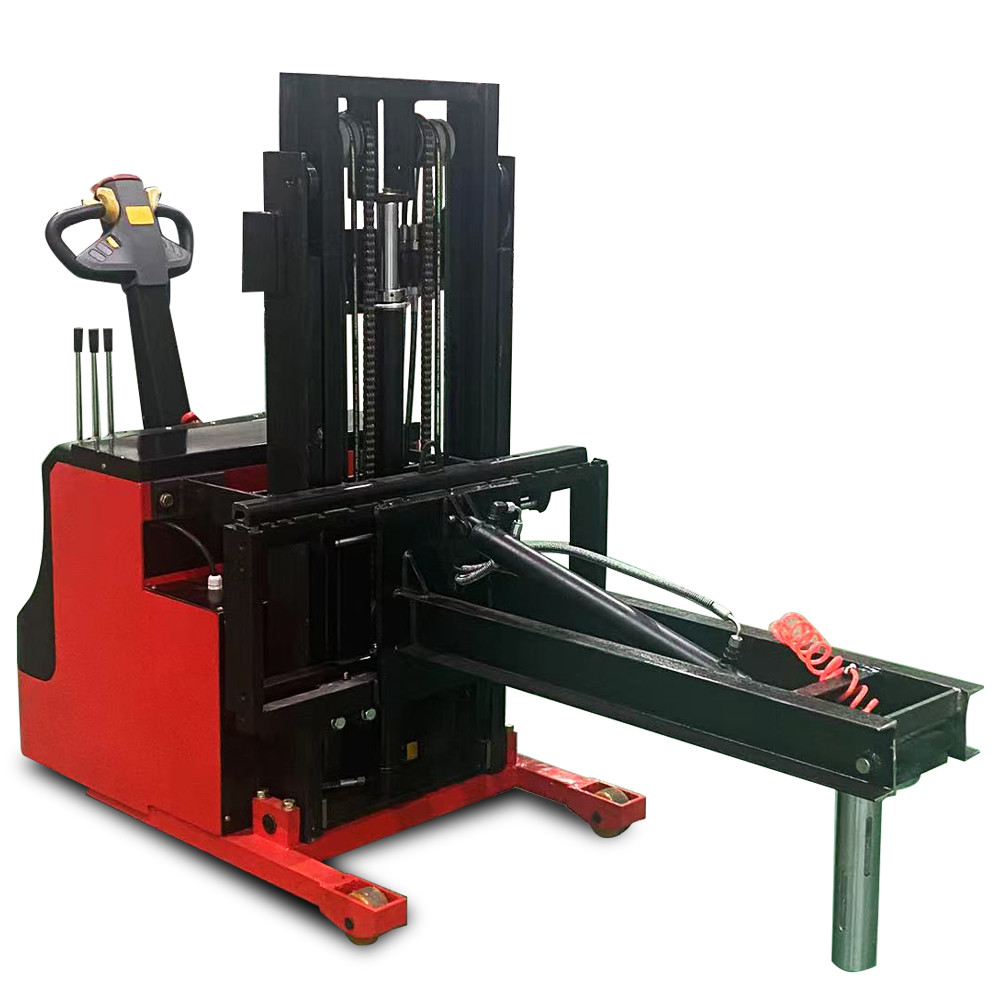

We applicate this roll film tensioning structure to a electric stacker,All operations are electric, greatly improving work efficiency.
Parameters
|
Power source
|
|
Battery
|
|
Rated load
|
kg
|
700kg/customized
|
|
Load center
|
mm
|
500
|
|
Operation way
|
|
Standing operation,electric lifting,electric gripper,electric rotating,electric moving
|
|
Turning radius
|
mm
|
1050
|
|
Aisle width
|
mm
|
1900
|
|
Length
|
mm
|
1500
|
|
Width
|
mm
|
760
|
|
Height
|
mm
|
2100/customized
|
|
Mast
|
|
1-stage mast
|
|
Adjustable extent of clamp
|
mm
|
200~1250
|
|
Max height of forks
|
mm
|
1500
|
|
Min height of forks
|
mm
|
200
|
|
Rotation angle
|
°
|
90°(left and right)/360 degree
|
|
Hoisting speed(load/unload)
|
mm/s
|
110/160
|
|
Descent speed(load/unload)
|
mm/s
|
150/130
|
|
Climbing capability
|
%
|
3,5
|
|
Braking mode
|
|
Wheel brake
|
|
Tyres,material
|
|
Nylon
|
|
Load wheel dimensions
|
mm
|
85*80,2pcs
|
|
Steering wheel dimensions
|
mm
|
180*50,2pcs
|
|
Hydraulic motor
|
kw
|
24v/2.2kw
|
|
Battery
|
v/ah
|
24/210
|
|
Weight
|
kg
|
1100
|
