Place of Origin: | Jiangsu,China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | PTS350A |
Minimum Order Quantity: | 1unit |
Price: | $130-$500/unit |
Packaging Details: | Cartons |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10000units/month |
Weight: | 150kg,350kg,500kg,800kg,1000kg,1500kg | Table Size: | 815*500*50mm/customized |
---|---|---|---|
Min. Lifting Height: | 270/330/210mm | Overall Dimensions: | Customized |
Color: | Customers' Requirements | Material: | High-duty Steel Structure |
Warranty: | 1 Year | After-sales Service Provided: | Overseas Service Center Available,Video Technical Support,Free Spare Parts |
Application: | Widely,For Workshops,logistics And Transportation | ||
High Light: | SS304 foot pump hydraulic lift table,SS304 Hydraulic Scissor Lift Table,EN1750 stainless steel scissor lift table |

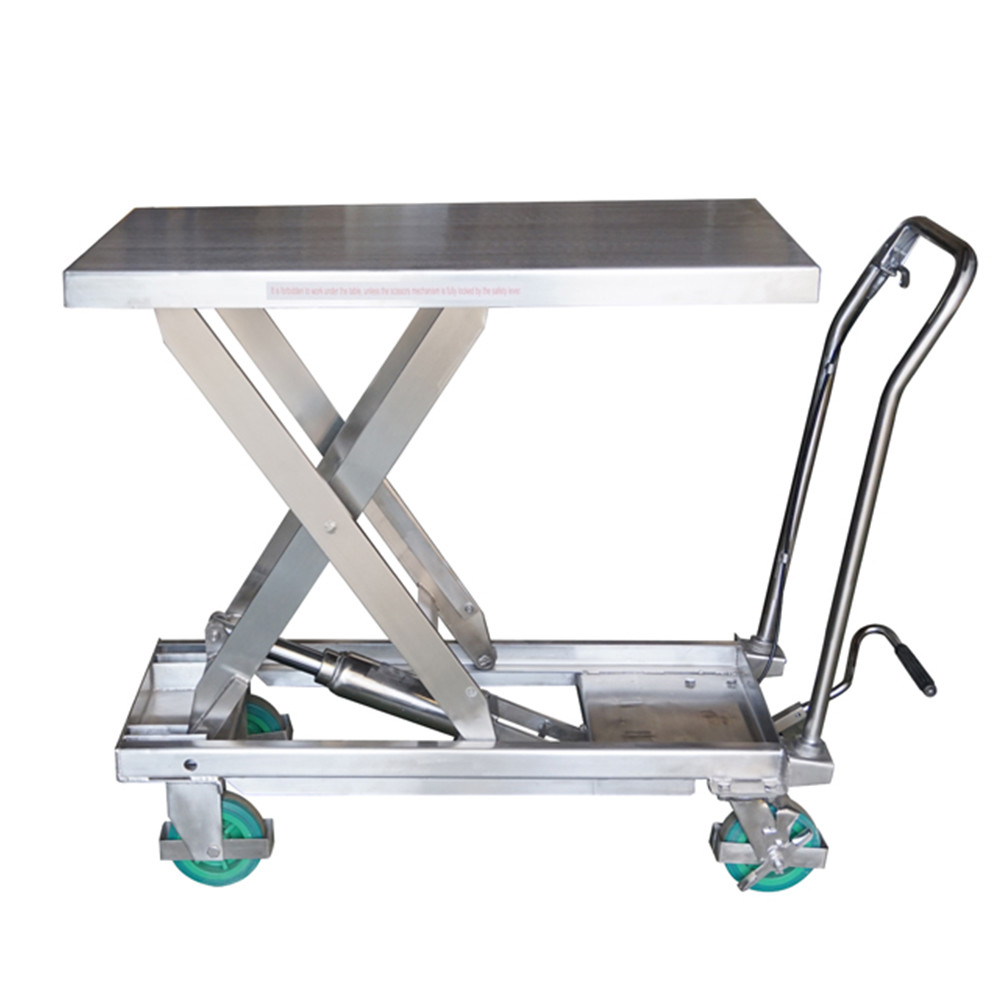

The manual hydraulic platform is made of high-strength steel. The design structure is reasonable, safe, stable and reliable. It is equipped with safety valve, fully sealed oil cylinder, and manual control of hydraulic system lifting, which is convenient and simple to operate.
It is suitable for loading, unloading and stacking of barrels in factories, workshops, warehouses and oil depots. It is especially suitable for chemical industry and food workshop to pour materials or ingredients. It can load and unload heavy objects, stack them, and work with hydraulic drum carrier. It can greatly improve work efficiency and reduce labor intensity of workers. It can also be modified for loading, unloading and lifting heavy objects. It is a new ideal multi-purpose lifting and unloading machinery.
Robust structure yet light Weight.
Model | PTS150 | PTS350A | PTS350AA | PTDS350A |
Load capacity(kg) | 150 | 350 | 350 | 350 |
Lowerest Height(mm) | 302 | 360 | 360 | 360 |
Max.Height(mm) | 1260 | 1300 | 1500 | 1580 |
Table Dimensions(mm) | 700*450*35 | 905*500*50 | 905*500*50 | 900*700*50 |
Dia.of the wheel(mm) | 100 | 125 | 125 | 125 |
Net Weight(kg) | 50 | 106 | 106 | 120 |
Packing Dimensions(mm) | 820*470*325 | 1010*500*370 | 1010*500*370 | 1010*720*380 |
Dia.of Cylinder(mm) | 35 | 40 | 40 | 40 |
Handle Height off the Ground(mm) | 810 | 970 | 970 | 970 |
Load in 20’Containers(pcs) | 144 | 100 | 100 | 70 |
