Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | BM050CG-16 |
Minimum Order Quantity: | 1unit |
Price: | $7600-$8200 /unit |
Packaging Details: | Iron pallet+plastic film |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Load Capacity: | 100-1000kg | Load Height: | 1000-4500mm |
---|---|---|---|
Load Center: | 500mm | Operation Way: | Electric Moving,lifting,sealing |
Aisle Width: | 1900mm | Lenth: | 1900mm |
Battery: | 24V/210A | Tire: | Tire |
High Light: | 400kg paper roll stacker,battery operated paper roll stacker,500kg paper reel stacker |

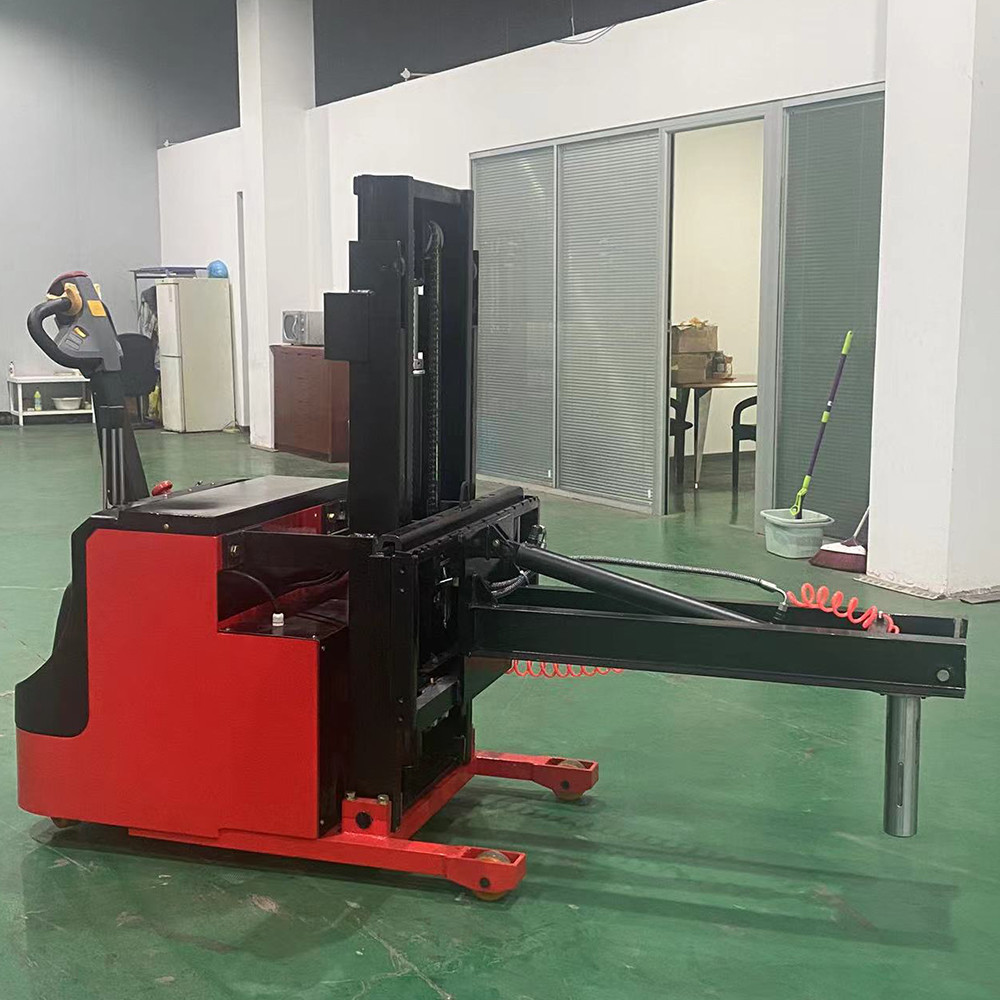

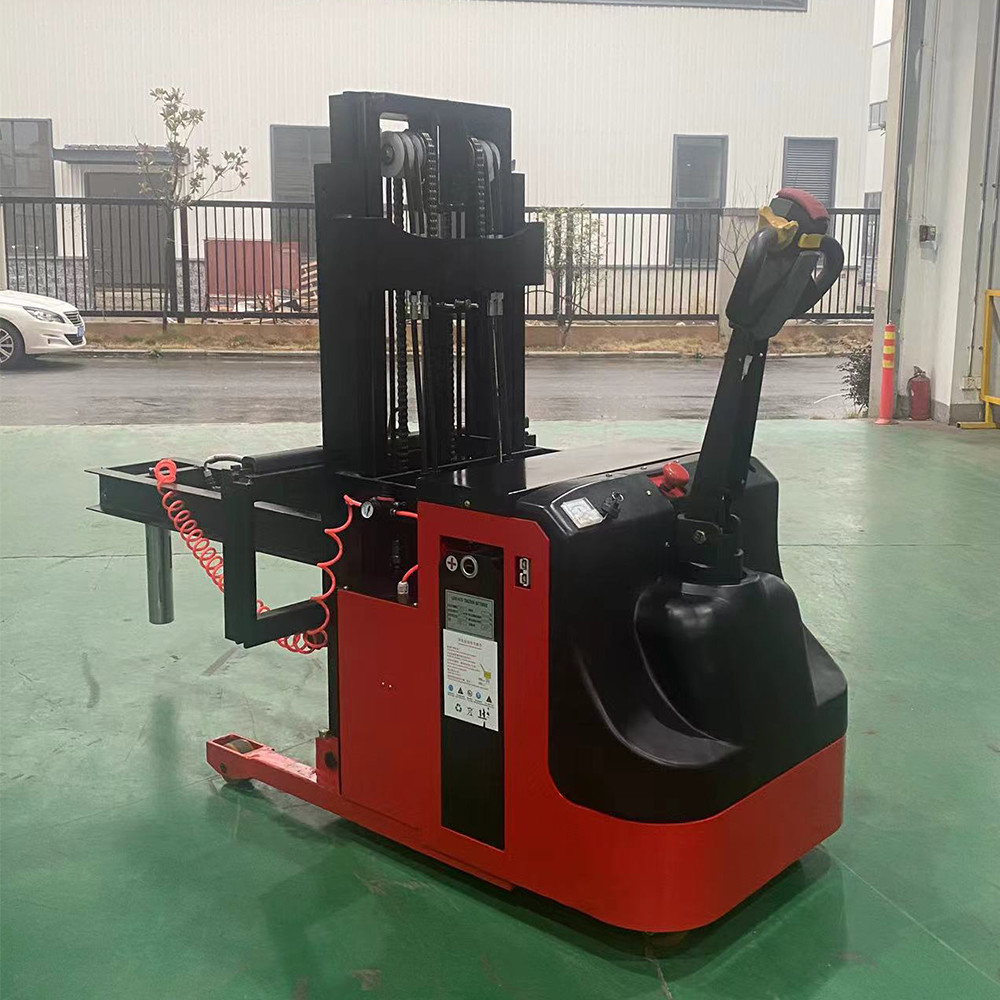

hydraulic electric paper roll turner and lifter paper roll stacker lift 1600-3000mm with paper reel clamp
The film winder stacker is used to tighten the inner core of the film winder and paper roll stacker. It is based on the principle that the utility model relates to a tensioning structure applied to a film winder, including a fixed shaft, a tensioning member set on the fixed shaft, and a lock nut mounted on the fixed shaft. The utility model has the advantages of simple operation, compact structure, fast tightening speed, effective improvement of the tensioning force and maintenance of a large torque, favoring improvement of the stability of the film sealing or tearing, improvement of the work efficiency, and adaptability to the film winding of different inner diameters. We apply this film winding and tensioning structure to electric stacker, all operations are electric, which greatly improves the working efficiency.
1.All-electric film paper roll up axis rotary loading car for mechanical special design, expansion axis can be set for the built-in battery power electro-hydraulic drive, easy to insert the film paper roll into the center of the shaft hole, fork up the horizontal horizontal or vertical rolls, rotate so that the vertical into horizontal or horizontal put into the vertical.
Power source
|
|
Battery
|
Rated load
|
kg
|
700kg/customized
|
Load center
|
mm
|
500
|
Operation way
|
|
Standing operation,electric lifting,electric gripper,electric rotating,electric moving
|
Turning radius
|
mm
|
1050
|
Aisle width
|
mm
|
1900
|
Length
|
mm
|
1500
|
Width
|
mm
|
760
|
Height
|
mm
|
2100/customized
|
Mast
|
|
1-stage mast
|
Adjustable extent of clamp
|
mm
|
200~1250
|
Max height of forks
|
mm
|
1500
|
Min height of forks
|
mm
|
200
|
Rotation angle
|
°
|
90°(left and right)/360 degree
|
Hoisting speed(load/unload)
|
mm/s
|
110/160
|
Descent speed(load/unload)
|
mm/s
|
150/130
|
Climbing capability
|
%
|
3,5
|
Braking mode
|
|
Wheel brake
|
Tyres material
|
|
Nylon
|
Load wheel dimensions
|
mm
|
85*80,2pcs
|
Steering wheel dimensions
|
mm
|
180*50,2pcs
|
Hydraulic motor
|
kw
|
24v/2.2kw
|
Battery
|
v/ah
|
24/210
|
Weight
|
kg
|
1100
|
Differences between roll turner and clamp stackers in terms of Design and Different clamping method
Roll turners and roll clamps are both types of material handling equipment used in industrial settings, particularly in the handling of rolls of materials like paper, textiles, or metal. While both serve the general purpose of manipulating rolls, they have distinct functionalities and applications. Here's a breakdown of the key differences:
1. **Design:**
- **Roll Turner:** Typically equipped with mechanisms for rotating the roll, and the design may allow for precise positioning of the roll during the turning process.
- **Roll Clamp:** Equipped with clamping arms or mechanisms designed to securely grip and support the roll during lifting and transportation.
2. **Different clamping method**
Clamping method: Roll turner is a method of fixing the roll core by expanding it, thereby lifting and rotating the paper roll. It will not harm the core of the roll, but it will damage the outer packaging of the roll. The clamp stacker is taken from the outside of the roll, which is prone to compression and deformation, but will not damage the outer packaging.
